FT 330-29 546 Contitech Suspension Rubber Bellows 3B12-328 Goodyear Lift Air Spring

FT 330-29 546 Contitech Suspension Rubber Bellows 3B12-328 Goodyear Lift Air Spring

Product Description

Replaced Firestone W013587994 / WO13587994

Replaced Firestone W01-358-7994 / WO1-358-7994

Replaced Firestone W01 358 7994 / WO1 358 7994

Replaced Contitech FT330-29546

Replaced Contitech FT 330-29546

Replaced Contitech FT 330-29 546

Replaced Contitech 64572

Replaced Contitech FT 330-29 546 / 64572

Replaced Goodyear 3B12-328

Replaced Goodyear 3B 12-328

Replaced Goodyear 3B12 328

Replaced Triangle 4546/6364

Technical Data

Top cover diameter: 231mm
Threaded hole: 1 3/8-16UNC
Combo Stud: 1/4NPTF, 3/4-16UNC
Center distance between top cover threaded hole and Combo Stud: 140mm
Bottom cover diameter: 231mm
Two threaded holes: 3/8-16UNC
Center distance between two threaded holes: 157.5mm
Maximum outer diameter: 330mm
Maximum height: 460mm
Minimum height: 130mm

FT 330-29  Pneumatic Application – Static Characteristic Value

Force F

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

1. The products features low cost, wide use and easy operation.

2. It achieves long service life, and requires no maintenance and lubrication.

3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

4. It comes with no friction and soft medium.

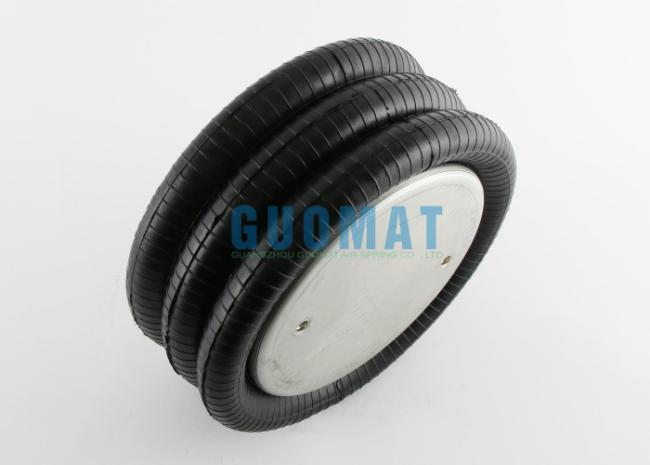

Product Picture
