Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines
Universal Air Bag A01-760-0335 Firestone Convoluted Air Spring For Commercial Laundry Machines
Product Introduction
GUOMAT 1B0335 air spring can replace the Firestone A01-760-0335.Using high-quality production materials and experienced production team.
Brand: GUOMAT/Neutral
Model o.: 1B0335
Type: Convoluted Air Spring
Material: Rubber and Steel
Warranty: 12 Months
Price: USD
Price Condition: FOB Guangzhou
Packaging: 4 air springs per carton
Package Size: 31.5 x 31.5 x 21 (cm)
Package Weigh: About 1.5 kg
| FIRESTONE | A01-760-0335 |
| FIRESTONE | A01 760 0335 |
| FIRESTONE | A017600335 |
GUOMAT 2B0335 Convoluted Air Spring Technical Data
| Maximum height: 230mm |
| Minimum height: 75mm |
| Stroke: 155mm |
| Maximum outer diameter: 203mm |
| Top cover plate diameter: 132mm |
| Top cover plate screw: 2X3/8-16UNC |
| Center distance between top cover plate screws: 70mm |
| Distance between top cover plate screw and air hole: 33mm |
| Top cover plate air hole: 3/8NPT |
| Bottom cover plate diameter: 132mm |
| Bottom cover plate threaded hole: 2X3/8-16UNC |
| Center distance between bottom cover plate threaded holes: 70mm |
We proudly offer the highest quality replacement air springs that exceed original equipment requirements.
Specifications:
Suitable for almost all trucks, trailer air suspensions and industrial equipment, long-lasting and durable.
Absorbs road shock and extends the life of tractors and drills.
Reduces vibration and driver fatigue.
Long-term trouble-free operation, stable level; strong traction and comfortable ride.
Our Advantages:
1. A wide range of products
2. Accept original equipment orders
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. Warranty guarantee

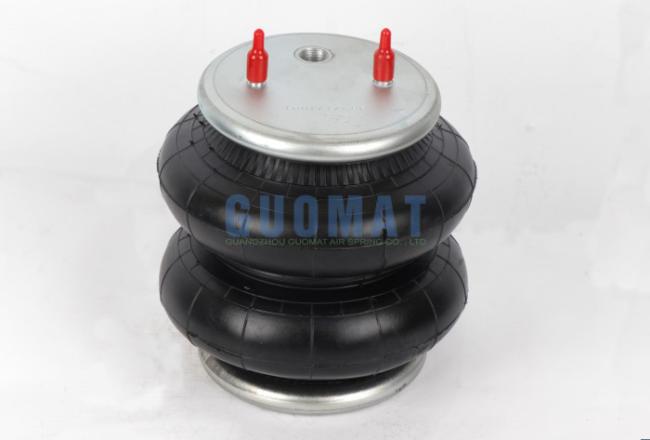

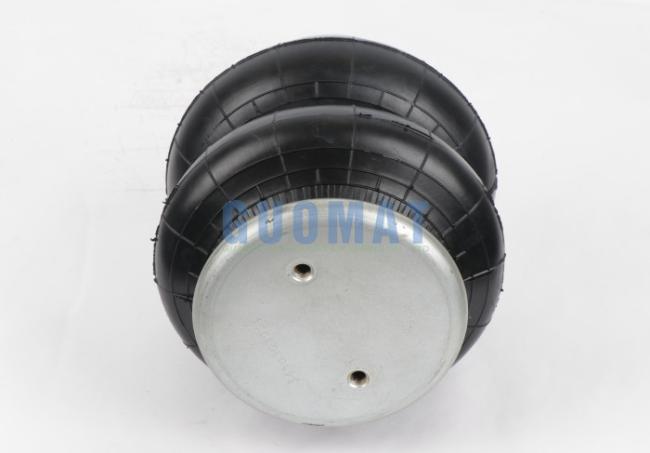

Product Picture
