W01-358-7564 Firestone Single Convoluted Air Spring 1B8-550 Goodyear Air Help Bags

Product Description

Product Name : Air Spring Bags

Product No.: 1B8X4

Production Place : GuangDong,China

Warranty : 1 Year Warranty

Material : Natural Rubber and Steel

Package : Strong Brown Carton

Scope of Application: Sports Equipment, Precision Instruments,

                                   Experimental Equipment, Test Bench Equipment, etc.

Firestone Number: W01-358-7564 / W01 358 7564 / W013587564

Firestone Style: 116

Goodyear Number: 1B8-550 / 1B 8-550 / 1B8 550 / 1B8550

Contitech Number: FS120-10 / FS120 10 / FS 120-10

GUOMAT 1B8X4 Air Spring Technical Data

Cover plate diameter: 135mm

Air hole: 1/4NPTF

Threaded hole on top cover plate: 2X3/8-16UNC

Center distance between threaded holes: 70mm

Threaded hole on bottom cover plate: 2X3/8-16UNC

Max height: 140mm

Min height: 50mm

Stroke: 90mm

W01-358-7564: Blind nuts,1/4NPT

W01-358-7561: Blind nuts,3/4NPT

W01-358-7568: Countersunk steel bead rings,1^3/4bolts,nuts,washers

W01-A72-7518: Blind nuts with installed 1/4 tank valve

W01-358-0133: Rubber bellows only

1B8X4 Single Convoluted Air Spring For Carton Sealing Machine

Single convolute air springs used in carton sealers are key components for controlling lift, cushioning, and height adjustment. Here is a breakdown of their functions, benefits, and key considerations:

Function in Carton Sealers

Height Adjustment

• Automatically adjusts the height of the sealing head or conveyor to accommodate different sized cartons.
• Ensures tape/seal consistency without human intervention.

Shock Absorption

• Absorbs shock from conveyor movement or carton impact, protecting sensitive components.

Load Support

• Provides adjustable force to maintain pressure on the tape head during sealing.

Fail-Safe Positioning

• Slowly lowers the sealing head if air pressure is lost (prevents damage).

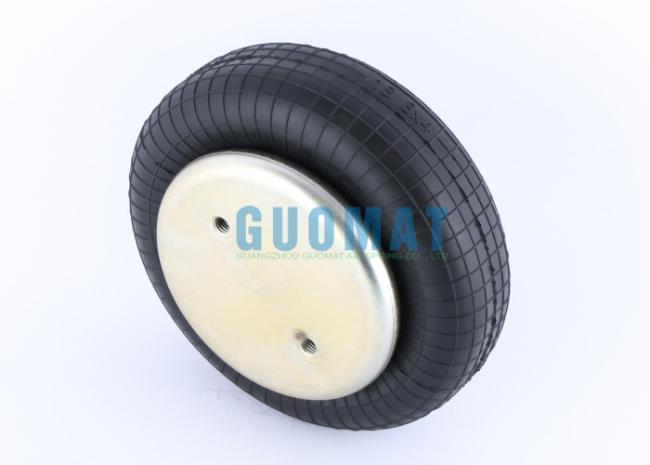

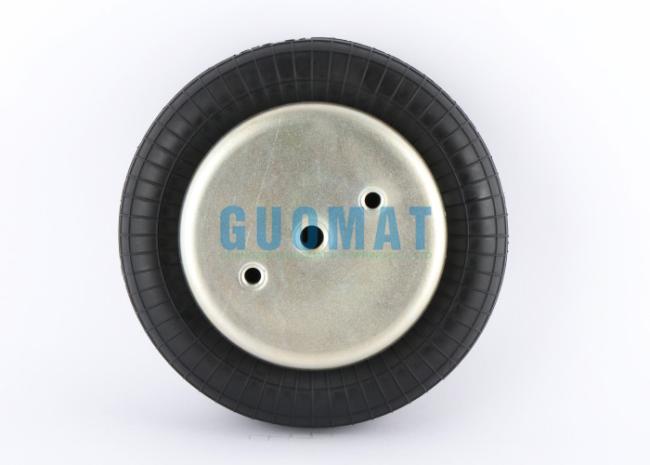

Detailed Pictures of the Product
