1B130070 Single Convoluted Air Actuator FS50-5 Contitech Rubber Air Spring Bags
1B130070 Single Convoluted Air Actuator FS50-5 Contitech Rubber Air Spring Bags
Product Description
|
Product Description |
Single Convoluted Air Spring |
|
Model No. |
1B130070 |
| Cross Reference | Contitech FS50-5 |
|
Warranty |
1 Year Warranty |
|
Material |
Natural Rubber+Steel |
|
Country of Origin |
China |
|
Brand |
GUOMAT/Neutral |
| Color | Black |
| Application | For Industrial Machine |
| Quality | High Quality |
| Delivery Time | About 3-8 working days |
| MOQ | 10 pieces |
| Sample Order | Yes |
GUOMAT 1B130070 Detailed Technical Data
Extended height: 83mm
Minimum compression height: 53m
Stroke: 30mm
Cover diameter: 114mm
Threaded hole: M10x15mm
Air hole: G1/4
Center distance between threaded holes: 44.5mm
Maximum outer diameter: 145mm
Design height: 70mm
Vibration isolation – dynamic characteristic values
Design height H: recommended 75mm, minimum 65mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Force (Load) ［KN］ | 2.3 | 3 | 3.8 | 4.6 | 5.3 | 6.1 | 0.43 |
| Spring Rate ［N/mm］ | 151 | 191 | 229 | 267 | 304 | 334 | |
| Natural Frequency ［Hz］ | 3.9 | 3.8 | 3.7 | 3.7 | 3.6 | 3.6 |
Pneumatic application – static characteristic values
Force F [kN］
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 80 | 2 | 2.7 | 3.3 | 4 | 4.7 | 5.4 | 0.46 |
| 70 | 2.6 | 3.4 | 4.3 | 5.1 | 6 | 6.8 | 0.4 | |
| 60 | 3.1 | 4 | 5 | 6 | 7 | 8 | 0.3 | |

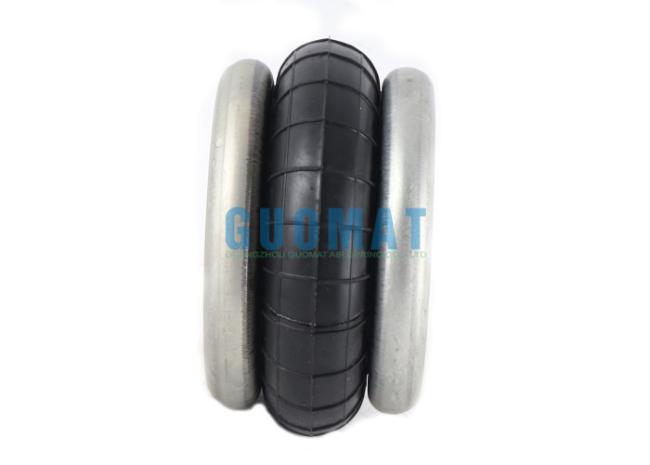

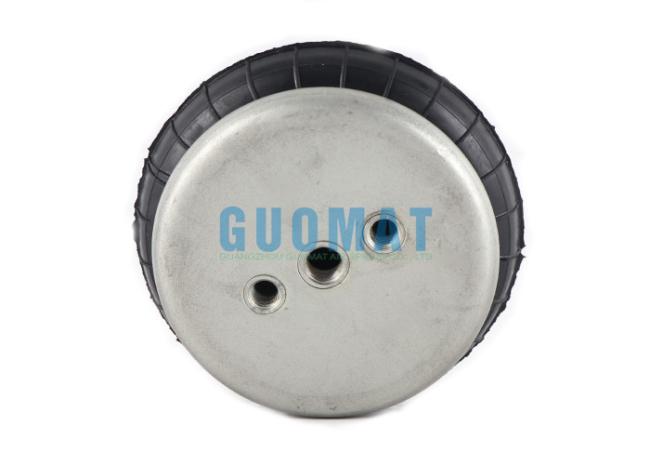

Real Picture-Air Bellow Spring
