Product Description
Brand : GUOMAT
Model No.: 2B6X2P
Material: Rubber Bellows + Aluminum Cover
Warranty: 1 Year
Replaces These Air Springs (Air Bellows)
Continental ContiTech: FD 76-14 1/2 M8Continental ContiTech: FD 76-14 Dl G1/2
Continental ContiTech: FD 76-14 D1 G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DI CR / FD76-14DICR / FD7614DICR
Continental ContiTech Bellow:FD 76-14 / FD76-14 / FD7614
Firestone No: WO1-R58-4070 / W01 R58 4070 / WO1R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646(COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A3 1330 02 01/A313300201
Norgren: PM/31062/PM 31062/PM31062
Nominal 0 (inch)x convolutions: 6"x2/6"x2/6x2Parker: 6"x2 9109001A
YS-AIR:YS-160-2VS/YS 1602VS/YS1602VSManufacturer Original-part no. Model
Technical Data
Maximum height: 195mm
Minimum height: 80mm
Design height: 160mm
Cover diameter: 152.5mm
Threaded hole: M8
Center distance between threaded holes: 127mm
Maximum outer diameter: 178mm
Vibration isolation – dynamic characteristic values
Design height H: recommended 160mm, minimum 150mm
| Pressure ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Force ［Load］ ［KN］ | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 | 2 |
| Spring Rate ［N/CM］ | 67.5 | 85.5 | 103.5 | 121.5 | 139.5 | 157 | |
| Natural Frequency ［HZ］ | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 |
2.3 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure P | ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Height H(mm) | 160 | 2.58 | 3.52 | 4.5 | 5.5 | 6.54 | 7.6 | 2 |
| 140 | 3.3 | 4.46 | 5.64 | 6.84 | 8.07 | 9.33 | 1.7 | |
| 120 | 3.88 | 5.21 | 6.57 | 7.96 | 9.38 | 10.8 | 1.5 | |
| 100 | 4.59 | 6.16 | 7.76 | 9.4 | 11.1 | 12.8 | 1.2 |

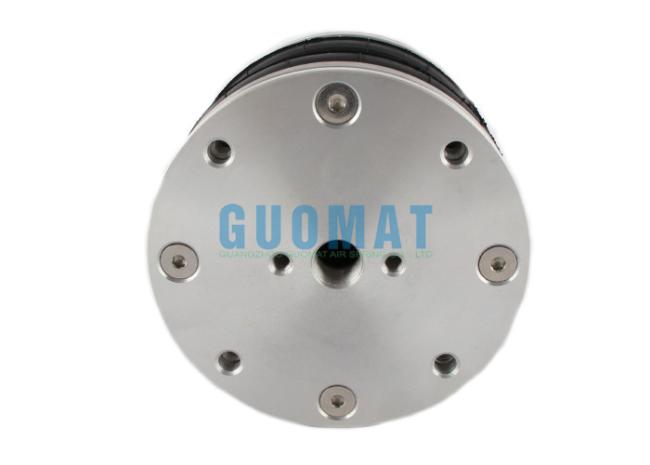

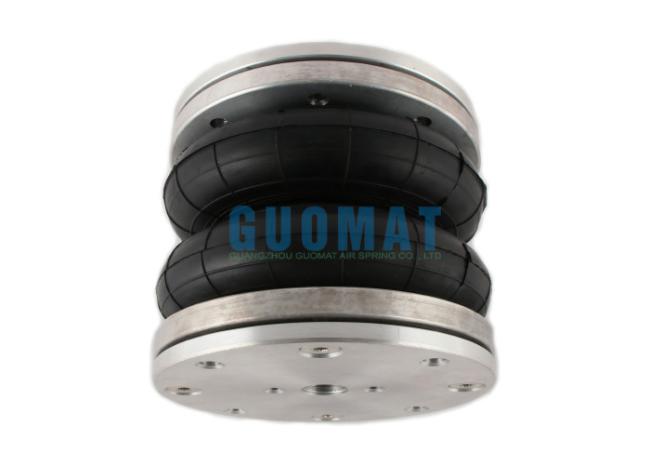

Real Pictures: GUOMAT 6X2 Double Convoluted Air Spring
