W01-358-5311 Truck Rolling Lobe Air Spring 665-11S031 Contitech Trailer Suspension Airbags
W01-358-5311 Truck Rolling Lobe Air Spring 665-11S031 Contitech Trailer Suspension Airbags
Product Description
| Part No.: 1T5311 |
| Application: For Truck/For Trailer |
| Spring Type: Rolling Lobe |
| Material: Rubber/Metal |
| GUOMAT Warranty: 12 Months Warranty |
| MOQ: 10 Pieces |
| Prot: Huangpu Prot |
OEM Number
Firestone Number: W013585311
Firestone Number: W01-358-5311
Firestone Number: W01 358 5311
Firestone Number: WO13585311
Firestone Number: WO1-358-5311
Firestone Number: WO1 358 5311
Firestone Bellow Number: 1T14C-1
Firestone Bellow Number: 1T 14C-1
Firestone Bellow Number: 1T14C-2
Firestone Bellow Number: 1T 14C-2
Ridewell Number: 1003585311C
Note: Flxible 6-379-1
GUOMAT 1T5311 Truck Air Spring Technical parameters
❶ Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Distance Between Stud and Combo Stud : 44 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : 1/4NPT
❸ Cover Plate
Top Cover Plate Diameter: Ø160 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 200 mm
Rubber Bellows Natural Height : 230 mm
❺ Bumper block / Buffer block
Bumper Block: With
❻ Bottom Piston
Bottom Piston Diameter : Ø179mm
Bottom Piston Height :93 mm
Our Delivery Steps
1. Receive payment confirmation
Customer places order and completes payment
We confirm that payment has been successfully received
2. Order processing and packaging
Pick goods in the warehouse according to order information (goods, quantity, address).
3. Pack strictly in accordance with international express requirements:
a, Use sturdy packaging boxes suitable for long-distance transportation.
b, Fill the interior with sufficient cushioning materials (bubble film, foam, etc.) to prevent damage during transportation.
c, Ensure that the outer box is firmly sealed (use strong tape, H-type sealing method).
d, Clearly, completely and firmly affix the shipping label/waybill (including recipient information, sender information).
e, Clearly, completely and firmly affix the necessary commercial invoice (usually affixed to the outside of the box or put in a transparent document bag and affixed to the box). The invoice information must be accurate (product name, quantity, unit price, total value, origin, HS code), which is crucial for customs clearance.
4. Delivery to logistics provider & Obtaining waybill number
Deliver the packaged package to international express/postal service providers (such as DHL, FedEx, UPS, EMS, postal parcels, etc.).
The logistics provider will scan the package and generate a unique logistics tracking number (waybill number).
5. Send the waybill number and query information:
Key step! Immediately send the logistics tracking number (waybill number) and the corresponding logistics query website (such as DHL official website tracking link) to the customer via email or other means.
Inform the customer of the estimated approximate time limit
6. International transportation and logistics tracking
The package begins cross-border transportation (air/sea/land transportation).
Customers can use the provided waybill number and website to query the transportation status of the package in real time on the logistics provider's official website (such as: received, leaving the place of origin, arriving at the transit center, clearing customs, arriving at the destination country, and being delivered).
7. Customs clearance in the destination country
After the package arrives at the destination country, it enters the customs clearance process.
Based on the commercial invoice and declaration information, the customs checks whether the goods comply with import regulations and decides whether customs duties, value-added tax, etc. need to be paid.
The customs clearance time varies, which may be very fast or delayed due to document problems, inspections, tax disputes, etc.
8. Domestic transportation at the destination
After customs clearance, the package is handed over to the local postal or express service provider in the destination country for final delivery.
9. Final delivery and delivery
The local deliveryman delivers the package to the customer according to the address.
The customer signs for the package (or according to local customs, the package may be placed at the door, express cabinet, etc.).
10. Complete delivery
The logistics system updates the status to "delivered" or "signed for".
At this point, the goods delivery process is completed.

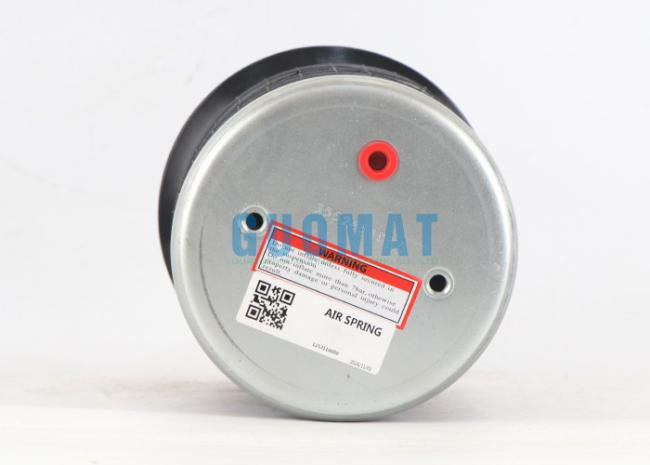

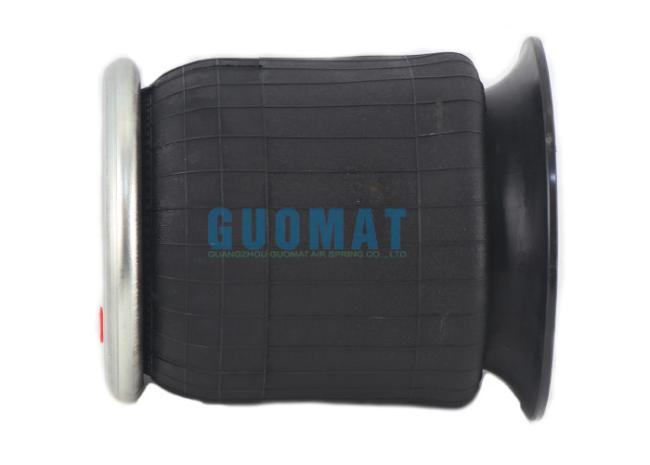

The Real Pictures
