FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
FD 330-22 CI Original ContiTech Air Actuator 1/4NPT Air Fitting Air Springs Bellows
Product Information
Contitech Air Spring
- FD 330-220CI
- 1/4NPT Air Fitting
- Double Convoluted Type
- One Year Limitrd Warranty
| Diameter of upper cover: 8.98in |
| Threaded holes of upper cover: 2x3/8UNC,0.95in |
| Air holes of upper cover: 1/4NPT |
| Center distance between threaded holes of upper cover: 6.2in |
| Distance between threaded holes and air holes of upper cover: 2.87in |
| Diameter of lower cover: 8.98in |
| Threaded holes of lower cover: 2x3/8UNC,0.95in |
| Center distance between threaded holes of lower cover: 6.2in |
| The rubber bellows max outer diameter: 12.8in |
| The max height: 12.0in |
| The min height: 3.0in |
The Cross Reference Number
| Contitech No. | OEM No. |
| FD 330-22 363 |
Firestone W01-358-7180 Goodyear 2B14-425/578923309 Goodyear 2B14-311/578923309 Triangle 6316/4363 Airkraft 115061/3B-356 |
| FD 330-22 472 |
Firestone W01-358-7181 Goodyear 2B12-411/578923309 Triangle 6316/4472 |
| FD 330-22 471 |
Firestone W01-358-7183 Goodyear 2B12-412/578923309 Triangle 6316/4471 |
| FD 330-22 500 |
Firestone W01-358-7344 Goodyear 2B12-304 Triangle 6316/4500 |
| FD 330-22 313 |
Firestone W01-358-7400 Goodyear 2B12-309/578923309 Goodyear 2B12-316/578923309 Triangle 6316/4313 |
| FD 330-22 337 |
Firestone W01-358-7401 Goodyear 2B12-320/578923309 Triangle 6316/4334 |
| FD 330-22 318 |
Firestone W01-358-7403 Goodyear 2B12-307/578923309 Goodyear 2B12-433/578923309 Goodyear 2B12-445/578923309 |
| FD 330-22 346 |
Firestone W01-358-7404 Goodyear 2B12-410/578923309 Goodyear 2B12-312/578923309 Triangle 6316/4346 |
| FD 330-22 364 |
Firestone W01-358-7405 Goodyear 2B12-313/578923309 Goodyear 2B12-459/578923309 Triangle 6316/4364 |
Applications
• Material handling industry
• Lumber industry
• Aluminum can recycling
• Container manufacturers
• Paper industry
• Press manufacturing
• Vibrating equipment and conveyors
• Vibrating screens
• Steel manufacturing equipment
• Automotive related (flat glass)

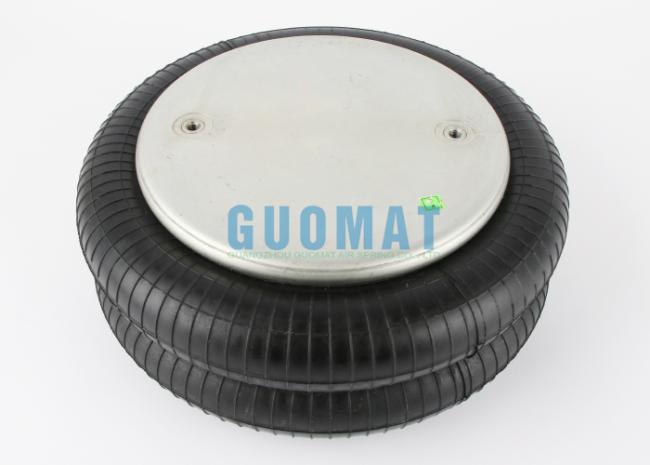

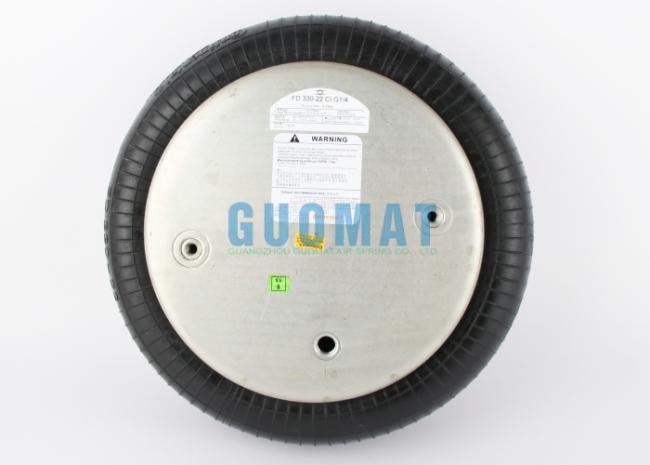

Product Picture
