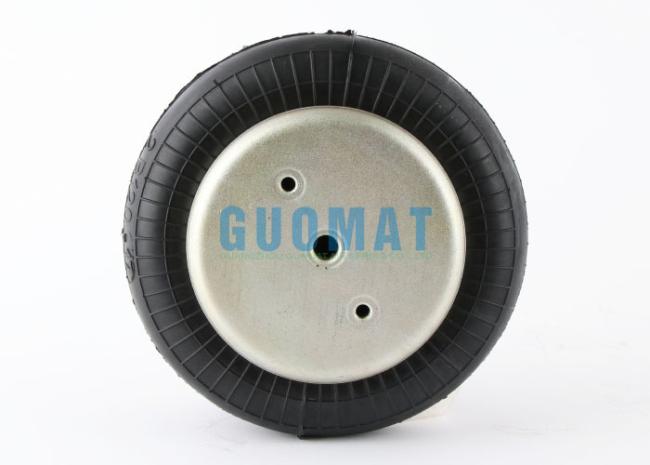

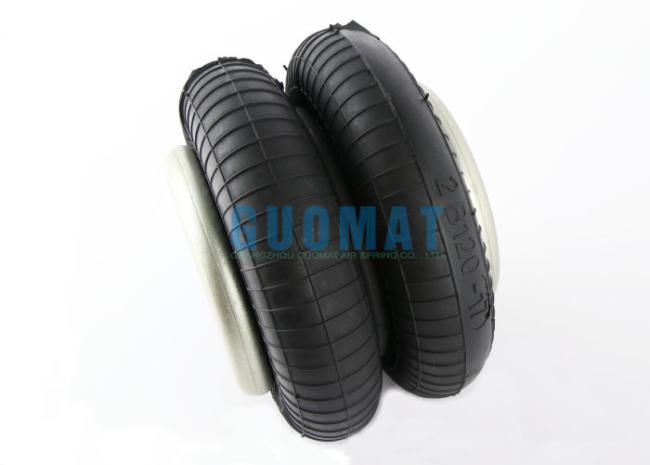

FD120-17 Contitech Air Spring Bball W01-M58-6353 Firestone Industrial Air Spring
FD120-17 Contitech Air Spring Bball W01-M58-6353 Firestone Industrial Air Spring
Product Description
Item Name: Industrial Air Spring
Brand: GUOMAT
Model No.: 2B120-17
Convolutions: 2
Color: Black
Warranty: 1 Year
Material: Rubber and Steel
Related OE Numbers
| Contitech | FD 120-17 | Contitech | FD120-17 |
| Firestone | W01-M58-6353 | Firestone | Style 26 |
| Airkraft | 113054 | Airkraft | 2B-181 |
W01M586353,W01 M58 6353,W01-M58-6353,WO1M586353,WO1 M58 6353,WO1 M58 6353
FD120-17,FD 120-17,FD120 17,FD12017,FD120-17 CI G1/4,113054,2B-181
Product Technical Parameters
Top Cover Plate Dia.:132mm
Bottom Cover Plate Dia:135mm
Treaded Hole Center Distance:70mm
Distance Gas Hole Between Nuts:35mm
Gas Hole Type:G1/4
Treaded Hole:2 X M8X1.25
The Rubber Bellows Max.Outer Diameter: 215mm
The Max.Height: 230mm
The min. Height: 75mm
The Stroke: 155mm
Firestone Style Number: Style 26
Assembly Number: W01-M58-6353 / W01 M58 6353 / W01M586353
Blind nuts,1/4BSP
Assembly Number: W01-M58-6387 / W01 M58 6387 / W01M586387
Blind nuts,3/4BSP
Assembly Number: W01-M58-6988 / W01 M58 6988 / W01M586988
Countersunk steel bead rings 40mm bolts,nuts,washers
Assembly Number: W01-358-0142 / W01 358 0142 / W013580142
Rubber Bellows Only
Dynamic Characteristics at 205 mm Design Height
(Required for Airmount isolator design only)
| Gauge Pressure (Bar) | Load (kN) | Spring Rate(kN/m) | Natural Frequency Hz |
| 3 | 3.74 | 59 | 1.99 |
| 4 | 5.15 | 76 | 1.92 |
| 5 | 6.52 | 93 | 1.88 |
| 6 | 8.03 | 109 | 1.83 |
| 7 | 9.41 | 124 | 1.81 |
Force Table
| Assembly Height (mm) | Volume@7bar (cu cm) | EFF Area @7 Bar(cm/sq) | kN Force | ||||
| @3BAR | @4BAR | @5BAR | @6BAR | @7BAR | |||
| 220 | 4202 | 118 | 3.19 | 4.44 | 5.66 | 7.06 | 8.29 |
| 200 | 3918 | 139 | 3.90 | 5.35 | 6.75 | 8.32 | 9.73 |
| 180 | 3594 | 157 | 4.51 | 6.12 | 7.70 | 9.43 | 11.00 |
| 160 | 3233 | 174 | 5.08 | 6.82 | 8.57 | 10.46 | 12.20 |
| 140 | 2840 | 191 | 5.60 | 7.48 | 9.40 | 11.46 | 13.35 |
| 120 | 2434 | 206 | 6.05 | 8.09 | 10.16 | 12.36 | 14.38 |
| 100 | 2007 | 8.63 | 6.42 | 8.63 | 10.81 | 13.11 | 15.25 |
| 80 | 1564 | 228 | 6.76 | 9.08 | 11.34 | 13.72 | 15.94 |
