Product Description
| Item | Industrial Air Spring | Brand | GUOMAT |
| Model | 1K130070 | Spring Type | Air Spring |
| Spring Material | Rubber+Steel | Structure | Double Cylinder |
1K130070 Replace The Following Part Number
Goodyear Part Number: 1B5-500
Goodyear Part Number: 1B 5-500
Goodyear Part Number: 1B5 500
Goodyear Part Number: 1B 5500
Goodyear Bellows Number: 579-913-500
Goodyear Bellows Number: 579 913 500
Goodyear Bellows Number: 579913500
Firestone Part Number: W01-358-7001
Firestone Part Number: W01 358 7001
Firestone Part Number: W013587001
Contitech part Number: FS50-5
Contitech part Number: FS 50-5
Contitech part Number: FS50-5 CI
Contitech part Number: FS 50-5 CI
Contitech part Number: FS50-5 CI 1/4 NPT
Contitech part Number: FS 50-5 CI 1/4 NPT
Contitech part Number: FS50-5 CI 1/4 NPT CA
Enidine Part Number: YI-1B5-500
Enidine Part Number: YI 1B5-500
Enidine Part Number: YI1B5500
Technical Data
Top cover plate diameter: 85mm
Bottom cover plate diameter: 85mm
The threaded hole: M8x1.5
Air inlet: G1/4
Center distance between threaded holes: 44.5mm
Effective diameter: 110mm
Min.height: 55mm
Max.height: 90mm
Stroke: 35mm
| Model No. | 1B5-500 | 1B5-510 | 1B5-520 | |
| Max.Stroke(in.) | 2.00 | 3.00 | 3.00 | |
| Force(lbs.)@100psi at a stroke of | 1.0 (in.) | 1250 | 1500 | 1500 |
| 2.0(in.) | 560 | 1200 | 1150 | |
| 3.0(in.) | - | 520 | 440 | |
| Maximum Stroke | 560 | 520 | 440 | |
| Isolator Load Range@100psi(lbs.) | 1100-1350 | 1050-1500 | 1000-1500 | |
| Approximate System Natural Frequency Hz | 3.25 | 2.75 | 2.67 | |
| Design Height Range(in.) | 2.5-3.0 | 2.5-4.0 | 3.5-5.0 | |
| Isolation at input frut of | 72 | 82 | 83 | |
| 94 | 96 | 96 | ||
| 98 | 99 | 99 | ||
| Model No. | 1B5-500 | 1B5-510 | 1B5-520 |
| Max.diameter @100psi(in.) | 5.70 | 6.00 | 6.50 |
| Compressed Height (in.) | 1.80 | 1.80 | 1.80 |
| Min.height as actuator (in.) | 1.80 | 1.80 | 2.80 |
| Max.height as insulator (in.) | 3.80 | 4.80 | 5.80 |
| Max.height as actuator(in.) | 3.80 | 4.80 | 5.80 |
| End Plate Ret.Dia.(in.) | 3.40 | 3.40 | 3.40 |
| Blind Tap Spacing(in.) | 1.75 | 1.75 | 1.75 |
| End Retainer Style | 2 | 2 | 2 |
| Air Fitting Port(NPTF) | 1/4 | 1/4 | 1/4 |
| Internal Bumper | NO | NO | NO |

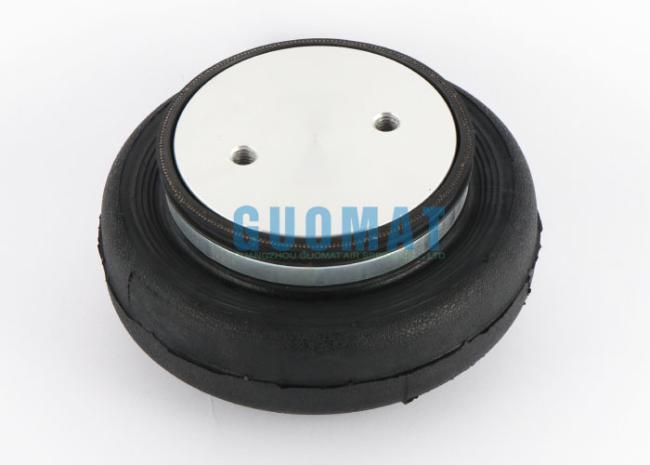

Product Pictures
