FS70-7 Contitech Replacement Air Springs W01-358-0131 Firestone Rubber Air Bellows Spring
FS70-7 Contitech Replacement Air Springs W01-358-0131 Firestone Rubber Air Bellows Spring
Specifications and Detailed Technical Parameters: 1B7070R
Type: Rubber Air Spring Bag
Brand: GUOMAT
Model No.: 1B7070R
Warranty: 1 Year
Material: Good Quality Rubber
HS Code: 8708809000
Other Name: Air Suspension
Convolutions: Single Convoluted
OEM Number/Cross Reference Number
Contitech: FS70-7VP
Contitech: FS 70-7VP
Contitech: FS70-7 VP
Contitech: FS 70-7 VP
Firestone: W01-358-0131
Firestone: W01 358 0131
Firestone: W013580131
1B7070 Assembly Part Number
GUOMAT NO.: 1B7070
CONTITECH NO.: FS70-7
CONTITECH NO.: FS 70-7
CONTITECH NO.: FS70 7
CONTITECH NO.: FS707
PHOENIX NO.: SP1B05
PHOENIX NO.: SP 1B05
PHOENIX NO.: SP 1B 05
B-OSCH NO.: 822419002
FESTO NO.: EB-165-65
FESTO NO.: EB 165 65
FESTO NO.: EB16565
WEFORMA NO.: WBE 200-E1
WEFORMA NO.: WBE200-E1
| Compressed Height | 2.01" |
| Max Expanded Height | 4.53" |
| Max Diameter | 6.5" |
| Max Inflation Pressure | 120 psi |
| Max Stroke | 2.52" |
W01-358-7731: Blind nuts,1/4 NPT
W01-358-7742: Blind nuts,3/4 NPT
W01-358-0127: Socket head aluminum bead rings(bolts,nuts,washers not included-sue 1/4 cap screws)
W01-358-7729: 3/4NPT(only)upper plate,blind nuts plate
W01-358-0131: Rubber bellows only
| Assembly Height (in.) | Volume@100PSIG(in3) | Pounds Force | ||||
| @20PSIG | @40PSIG | @60PSIG | @80PSIG | @100PSIG | ||
| 4.0 | 56 | 160 | 400 | 650 | 910 | 1210 |
| 3.0 | 39 | 310 | 340 | 990 | 1350 | 1730 |
| 2.0 | 20 | 390 | 790 | 1200 | 1600 | 2050 |

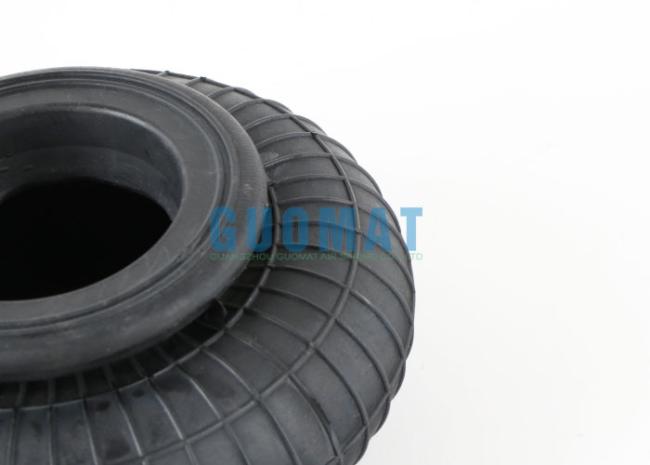

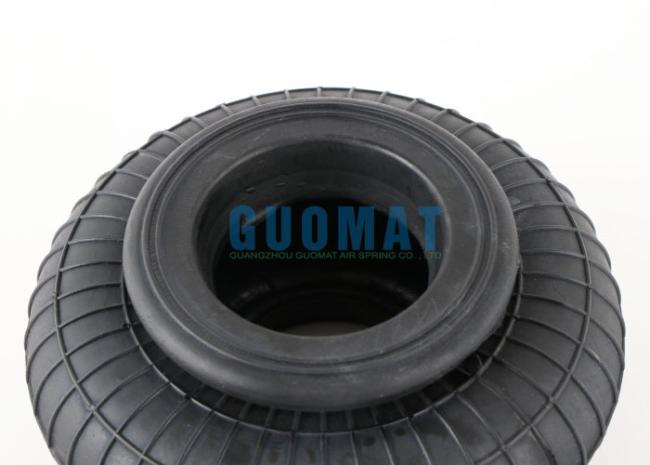

The Related Picture
