2B6X6 air spring is an indispensable precision component in papermaking equipment. It provides adjustable elastic support, excellent vibration isolation effect and precise height/pressure control, which provides key guarantee for the high-speed, stable and efficient operation of papermaking machines and the production of high-quality paper.

Technical Data:

Weight: 1.6KG

Design Height: 152mm

Cover Plate Diameter: 113mm

Threaded Hole: 3/8-16UNC

Air Fitting: 1/2NPT

Distance From Threaded Hole to Center of Cover Plate: 44.5mm

Distance From Threaded Hole to Air Fitting: 22mm

The Rubber Bellows Natural Diameter: 145mm

Deflection(Height Min.): 65mm

Deflection(Height Max.): 175mm

Working Stroke: 110mm

Loading Cap.at 3.0bar: 2.88kN

Loading Cap.at 7.0bar: 7.25kN

OEM Number:

Contitech: FD70-13

Contitech: FD 70-13

Reasons to Choose GUOMAT


1, Complete product specifications
We have produced more than 500 product models and specifications, which can be customized for production, a large number of spot stocks, and short delivery time

2 ,Has strong production strength
It has 20,000 square meters of production and office space, with an annual output of 300,000 air springs and more than 50,000 air compressors. Product production standard workshop, formal testing equipment and scientific and effective quality testing process

3, The product quality is good
Crafted from high-quality materials

4, Marketing and sales support
Manufacturer professional sales team

5, Product Service
1 year warranty
If you have any questions after receiving the goods, please contact us in time

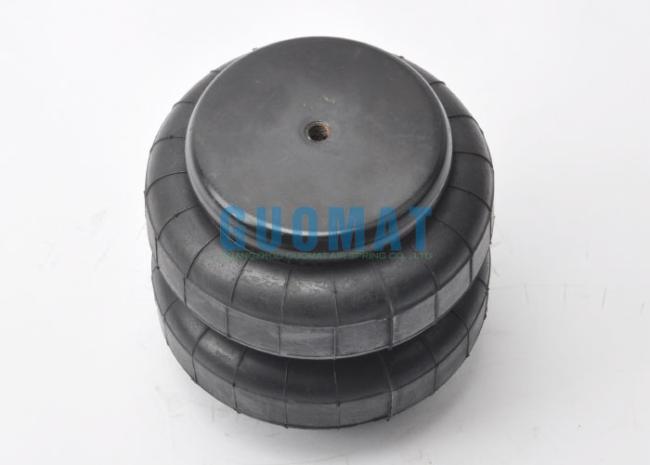

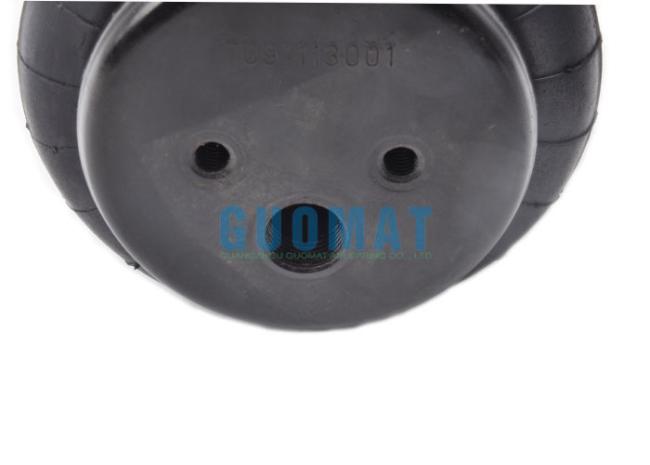

The Real Pictures
