1R11-199 Goodyear Suspension Rubber Bellows 566-222-199-00000 Truck Air Spring
1R11-199 Goodyear Suspension Rubber Bellows 566-222-199-00000 Truck Air Spring
Cross Information
Manufacturer : GOODYEAR
Goodyear : 1R11-199
Goodyear Part Number : 1R11-199
Goodyear Bellows Number: 566-222-199-00000
Firestone Style Number : W01-358-8510
Firestone Style Number : W01 358 8510
Firestone Style Number : W013588510
V-olvo Part Number: 20554759
Technical Data
Natural height: 160mm
Top cover diameter: 231mm
Screw: 1/2-13UNC
Combination stud: 3/4-16UNC, 1/4NPTF
Center distance between screw and combination stud: 140mm
Base piston diameter: 218mm
Threaded holes: 2x1/2-13UNC
Center distance between threaded holes: 105mm
Goodyear Rolling Lobes Truck Air Spring
| Part Number | Bellows Number | Piston Number |
| 1R8-009 | 566-16-3-007 | 566-16-7-000 |
| 1R8-031 | 566-16-3-007 | 566-16-7-000 |
| 1R8-034 | 566-16-3-007 | 566-16-7-021 |
| 1R8-041 | 566-16-3-007 | 566-16-7-021 |
| 1R9-065 | 566-18-3-003 | 566-16-7-009 |
| 1R9-003 | 566-18-3-004 | 566-16-7-021 |
| 1R9-047 | 566-18-3-004 | Not Included |
| 1R9-053 | 566-18-3-004 | 566-16-7-021 |
| 1R9-054 | 566-18-3-004 | 566-16-7-000 |
| 1R9-056 | 566-18-3-004 | 566-16-7-000 |
| 1R9-070 | 566-18-3-004 | 566-16-7-021 |
| 1R9-071 | 566-18-3-004 | 566-16-7-021 |
| 1R9-025 | 566-18-3-010 | 566-16-7-017 |
| 1R9-038 | 566-18-3-010 | 566-16-7-017 |
| 1R12-419 | 566-20-7-038 | 566-20-7-233 |
| 1R12-423 | 566-20-7-038 | 566-20-7-246 |
| 1R12-421 | 566-20-7-076 | 566-20-7-158 |
| 1R12-422 | 566-20-7-076 | 566-20-7-036 |
| 1R12-406 | 566-20-7-120 | 566-20-7-223 |
| 1R11-018 | 566-22-3-006 | 566-20-7-079 |

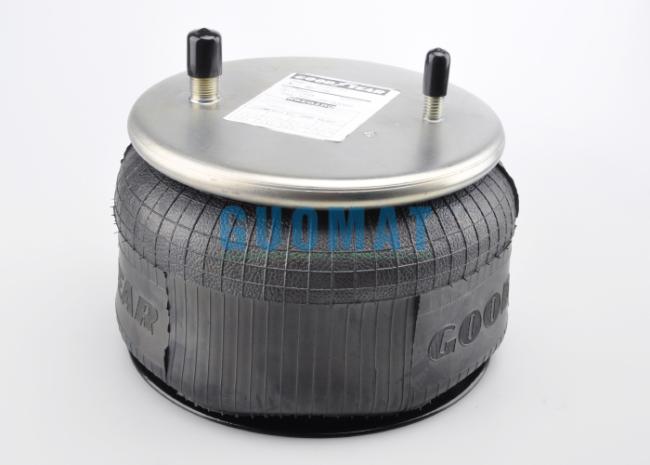

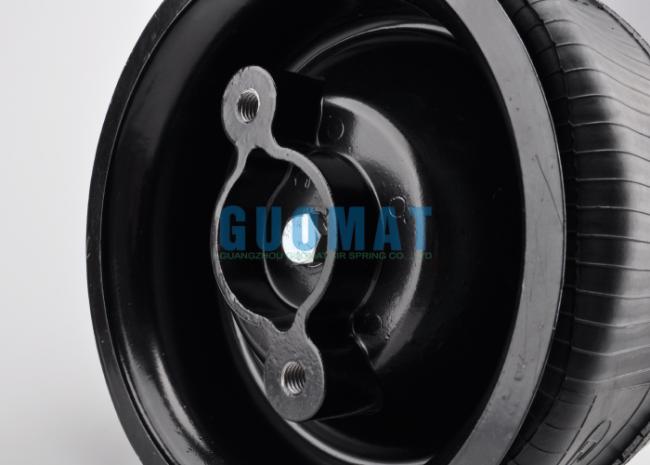

The Picture of 1R11-199 Goodyear Rolling Lobe Type Air Spring
