Product Description
Brand: GUOMAT
Model No.: 1T9141
Firestone: W013589141
Firestone: W01 358 9141
Firestone: W01-358-9141
Firestone: WO13589141
Firestone: WO1 358 9141
Firestone: WO1-358-9141
Firestone: 1T19F-7
Goodyear: 1R14-215
Goodyear: 1R 14-215
Goodyear: 1R14 215
Sauer: P50-733
Ridewell: 1003589121C
Watson&Chalin: AS-0013
Technical Data
| Top cover diameter | 289mm |
| Bolt | 1/2-13UNC |
| Combination stud | 1/4NPT,3/4-16UNF |
| Center distance between bolt and combination stud | 140mm |
| Natural outer diameter | 330mm |
| Maximum height | 560mm |
| Minimum height | 180mm |
| Base diameter | 260mm |
| Base height | 140mm |
| Threaded hole | 4x1/2-13UNC |
| Center distance between threaded holes | 200mm |
How to Maintain Air Springs
1. Check the outside diameter of the air spring. Check for irregular cracks
2. Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.
4. Check whether there is foreign matter accumulation on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness
Goodyear 1R 14'' Diameter Truck Air Spring
| Goodyear No. | Rubber No. | Piston No. | Piston Type | Top Plate Qty | Botto, Piston Qty | Top Plate Dia. | Bottom Plate Dia. | Collapsed Height |
| 1R14-018 | 566-28-3-021 | 566-20-7-096 | S | 5 | 4 | 11.3 | 10.2 | 7.7 |
| 1R14-019 | 566-28-3-020 | 566-20-3-020 | S | 5 | 4 | 11.3 | 10.2 | 8.9 |
| 1R14-024 | 566-28-3-021 | - | - | 5 | 4 | 11.3 | - | 7.7 |
| 1R14-025 | 566-28-3-020 | - | - | 5 | 4 | 11.3 | 10.2 | 8.9 |
| 1R14-026 | 566-28-3-021 | 566-20-7-096 | S | 5 | 4 | 11.3 | 10.2 | 7.3 |
| 1R14-027 | 566-28-3-021 | - | - | 5 | 4 | 11.3 | - | 7.3 |
| 1R14-028 | 566-28-3-021 | 566-20-7-096 | S | 5 | 4 | 11.3 | 10.2 | 7.7 |
| 1R14-029 | 566-28-3-021 | - | - | 5 | 4 | 11.3 | - | 7.7 |
| 1R14-030 | 566-28-3-020 | 566-20-7-097 | S | 5 | 4 | 11.3 | 10.2 | 8.9 |
| 1R14-031 | 566-28-3-020 | - | - | 5 | 4 | 11.3 | - | 8.9 |
| 1R14-037 | 566-28-3-015 | 566-20-7-076 | A | 5 | 4 | 11.3 | 11.8 | 5.7 |
| 1R14-038 | 566-28-3-015 | 566-20-7-076 | A | 5 | 4 | 11.3 | 11.8 | 5.7 |
| 1R14-039 | 566-28-3-015 | 566-20-7-076 | A | 2 | 4 | 11.3 | 11.8 | 5.7 |
| 1R14-042 | 566-28-3-015 | 566-20-7-076 | A | 2 | 4 | 11.3 | 11.8 | 5.7 |
| 1R14-045 | 566-28-3-020 | 566-20-7-097 | S | 2 | 4 | 11.3 | 10.2 | 8.9 |
| 1R14-052 | 566-28-3-015 | 566-20-7-076 | A | 2 | 4 | 11.3 | 11.8 | 5.7 |
| 1R14-060 | 566-28-3-020 | - | - | 2 | 4 | 11.3 | - | 8.9 |
| 1R14-101 | 566-28-3-021 | 566-20-7-080 | C | 5 | 4 | 11.3 | 10.1 | 8.8 |
| 1R14-106 | 566-28-3-021 | 566-20-7-188 | C | 3 | 4 | 11.5 | 9.5 | 5.5 |

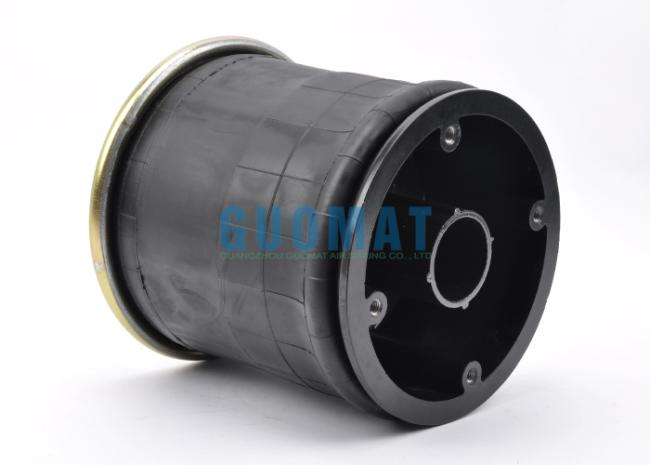

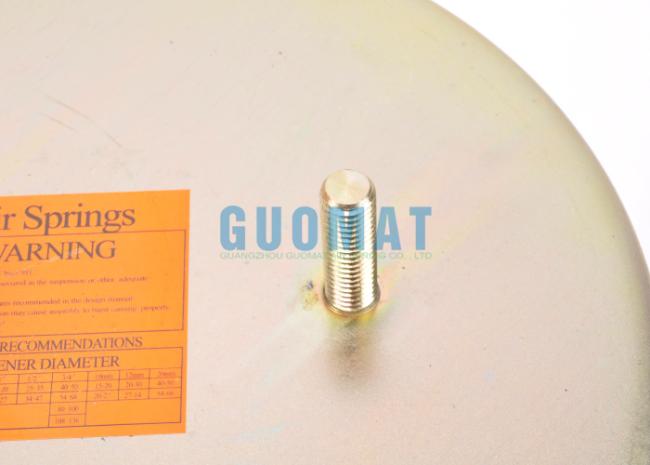

The Real Pictures of 1T9141 Air Spring
