10X3'' Triple Convoluted Type Air Bags FT210-32 DS Contitech Flange Rubber Air Actuator
10X3'' Triple Convoluted Type Air Bags FT210-32 DS Contitech Flange Rubber Air Actuator
Product Description
Brand: GUOMAT
Model No.: 3B10X3T
Bellows No.: 10''x3
Cross Reference No.:
ContiTech Part Number: FT210-32
ContiTech Part Number: FT 210-32
ContiTech Part Number: FT210-32 DS
ContiTech Part Number: FT 210-32 DS
ContiTech Part Number: FT210-32 DS G1/2
ContiTech Part Number: FT 210-32 DS G1/2
ContiTech Part Number: FT210-32 DS G1/2 M8
ContiTech Part Number: FT 210-32 DS G1/2 M8
Firestone Part Number: W01R584059
Firestone Part Number: W01 R58 4059
Firestone Part Number: W01-R58-4059
Firestone Part Number: WO1R584059
Firestone Part Number: WO1 R58 4059
Firestone Part Number: WO1-R58-4059
Dunlop Part Number: SP1539
Norgren Part Number: M/31103
Norgren Part Number: M 31103
Norgren Part Number: M31103
10''x3 Air Bellow Technical Data
The design height: 322mm
Effetive diameter: 200mm
Compressed height: 118mm
Maximum height: 400mm
Full strock: 282mm
The rubber bellows Max.outer diameter: 270mm
Cover plate: 210mm
Gas hole: G1/2
Bolt/Stud: M10
Working medium: water,air
Working pressure: ≤0.7Mpa
Burst pressure: ≥1.6Mpa
Endurance cycle: ≥106
Temperature: -35℃-+60℃
Pneumatic Application – Static Characteristic Values
Force F (kN)
| Pressure p | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.v(l) |
| Height H (mm) | 350 | 5.62 | 7.66 | 9.75 | 11.8 | 14 | 16.3 | 11 |
| 300 | 7.1 | 9.56 | 12 | 14.5 | 17.1 | 19.8 | 9.5 | |
| 250 | 8.62 | 11.6 | 14.6 | 17.6 | 20.7 | 24 | 8.2 | |
| 200 | 10.3 | 13.8 | 17.3 | 20.8 | 14.4 | 28.3 | 6.6 | |
| 150 | 12.1 | 16.1 | 20.1 | 24.2 | 28.3 | 32.6 | 4.7 |

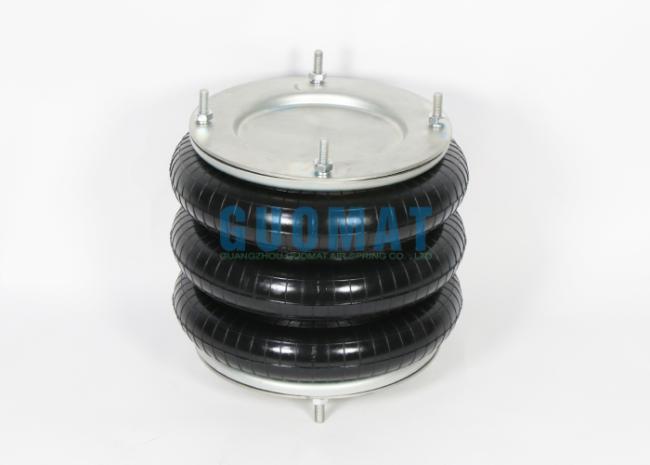

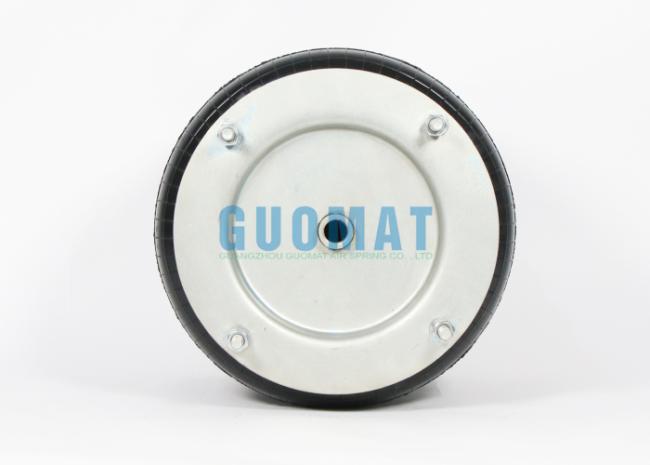

Product Pictures
