W01-M58-8722 Firestone Heavy Truck Air Bag Shock Kits 1R12-712 Goodyear Air Balloon
W01-M58-8722 Firestone Heavy Truck Air Bag Shock Kits 1R12-712 Goodyear Air Balloon
Product Description
|
Item |
Value |
|
GUOMAT NO. |
1T8722 |
|
Type |
Air Spring |
|
Warranty |
12 Months |
|
Truck Model |
Heavy Duty Truck |
|
Color |
Black |
|
Place of Origin |
Guangzhou,China |
|
Certification |
ISO/TS16949:2009 |
|
Material |
Rubber+Steel |
|
Packing |
Neutral Packing |
|
MOQ |
1 Pcs |
|
Quality |
High-Quality |
|
Position |
Auto/Truck parts |
|
Application |
Auto Suspension Systems |
Firestone Number: W01-M58-8722
Firestone Number: 1T17AR-4.5
Contitech Number: 836MK1
Contitech Number: 60209
Goodyear Number: 1R12-712
Phoenix Number: 1DF 25-11
Dunlop Number: D13B32
Taurus Number: KR 721-06
Airtech Number: 131022/3836K
Airfren Number: 20.836.1CM
WABCO Number: 9518127120
DT Number: 5.10222
Granning Number: 17066
Peautomotive Number: 084.052-13A
Peautomotive Number: 084.052-23A
Peautomotive Number: 084.052-73A
Peautomotive Number: 084.052-43A
Meritor Number: MLF7060
DAF Number: 1697678
DAF Number: 0388165
Lift Axle Operation (Specific to Trailers with Them)
Raising: The driver activates a switch in the cab. This sends an air signal to the lift axle control valve. The valve directs air pressure to the lift mechanism (usually a piston or air bag separate from the suspension air spring), retracting the axle off the ground.
Lowering: The driver deactivates the switch. The control valve exhausts air from the lift mechanism and simultaneously directs air to the lift axle's suspension air springs, inflating them. The axle's weight then lowers it to the ground, ready to bear load. Its height control valve then takes over to maintain ride height.

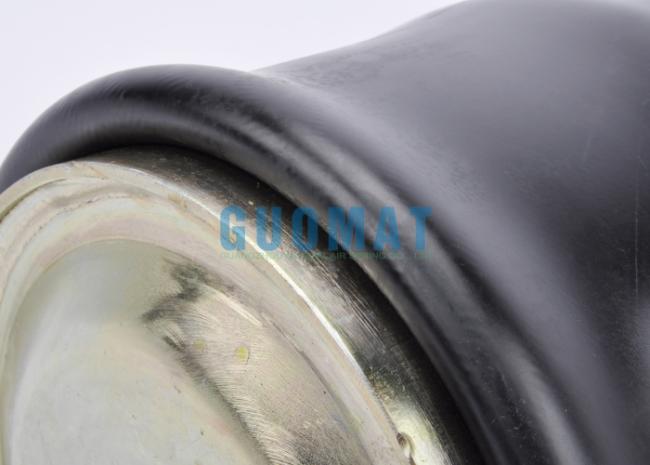

1T8722 TruckAir Spring Real Pictures
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
