G3/4 Gas-Filled Type Rubber Air Bellows FS120-9 Contitech W01M586165 Firestone Air Spring
G3/4 Gas-Filled Type Rubber Air Bellows FS120-9 Contitech W01M586165 Firestone Air Spring
Technical Data: Single Convoluted Type Air Spring
Top cover plate diameter: Ø135mm
Air inlet: G3/4
Threaded holes in the top cover: 2XM8X1.25mm
Center distance between top cover threaded holes: 70mm
Distance between top cover threaded hole and air inlet hole: 35mm
Bottom cover plate diameter: Ø135mm
Rubber bellows max.outer diameter: Ø215mm
Maximum height: 115mm
Minimun height: 50mm
GUOMAT NO.1B1209-G3/4 Reference Numbers
Refer to Firestone W01M586165
Refer to Firestone W01 M58 6165
Refer to Firestone W01-M58-6165
Refer to Contitech FS120-9
Refer to Contitech FS 120-9
Refer to Contitech FS120-9 G3/4
Refer to Contitech FS 120-9 G3/4
Refer to Contitech FS120-9 G3/4 M8
Refer to Contitech FS 120-9 G3/4 M8
Refer to Dunlop(FR) 8''x1 S08101
Refer to B-osch 822419003
Refer to Festo EB-215-80
Refer to Norgren PM/31081
Refer to Norgren 8X1
Refer to Weforma WBE 300-E1
Refer to Airtech 140293
Refer to Airtech 111003
Refer to Airtech 1B-190FB
Refer to Megatech 1S120-9 3/4 M8
Dynamic Characteristics at 115 mm Design Height
(Required for Airmount isolator design only)
| Gauger Press(BAR) | Load(kN) | Spring Rate(kN/m) | Natural Frequency(Hz) |
| 3 | 4.16 | 132 | 2.80 |
| 4 | 5.73 | 169 | 2.71 |
| 5 | 7.26 | 206 | 2.67 |
| 6 | 8.98 | 247 | 2.62 |
| 7 | 10.55 | 285 | 2.59 |
Force Table
| Assembly Height(mm) | Volume@7BAR(cu cm) | EFF Area@7 BAR(cm*2) | kN Force | ||||
| @3 BAR | @4 BAR | @5 BAR | @6 BAR | @7 BAR | |||
| 130 | 2635 | 110 | 2.86 | 4.04 | 5.17 | 6.51 | 7.71 |
| 120 | 2506 | 138 | 3.75 | 5.20 | 6.60 | 8.20 | 9.65 |
| 110 | 2341 | 163 | 4.54 | 6.22 | 7.86 | 9.70 | 11.38 |
| 100 | 2164 | 183 | 5.20 | 7.07 | 8.92 | 10.95 | 12.82 |
| 90 | 1956 | 201 | 5.75 | 7.84 | 9.84 | 12.04 | 14.07 |
| 80 | 1745 | 215 | 6.19 | 8.45 | 10.59 | 12.91 | 15.08 |
| 70 | 1509 | 228 | 6.54 | 8.91 | 11.8 | 13.64 | 15.92 |
| 60 | 1280 | 236 | 6.82 | 9.20 | 11.58 | 14.17 | 16.55 |

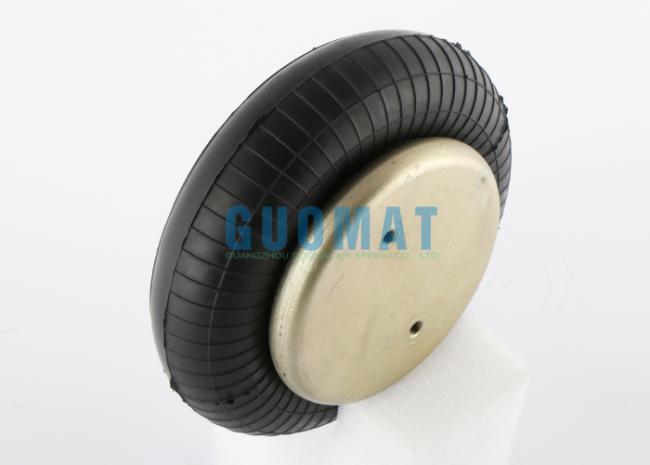

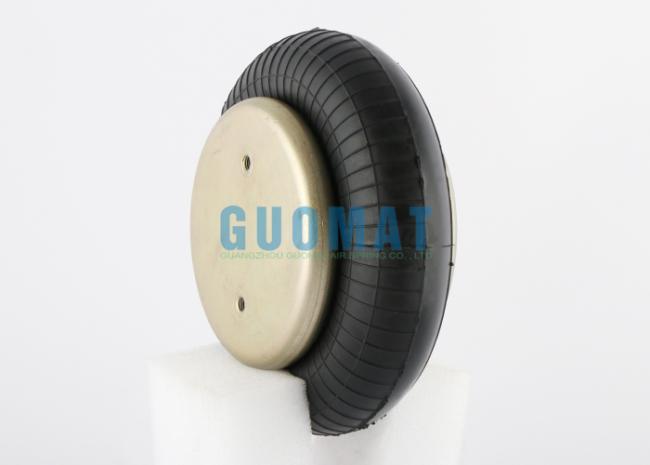

The Real Pictures
