FD200-19 504 Contitech Double Convoluted Air Spring W01-358-6926 Firestone Industrial Bellows Actuator

FD200-19 504 Contitech Double Convoluted Air Spring W01-358-6926 Firestone Industrial Bellows Actuator


Product Description

2B6926 Can Replace The Following Manufacturer Number

Direct Replacement For FIRESTONE W01-358-6926 / WO1-358-6926

Direct Replacement For FIRESTONE W01 358 6926 / WO1 358 6926

Direct Replacement For FIRESTONE W013586926 / WO13586926

Direct Replacement For CONTITECH FD 200-19 504

Direct Replacement For CONTITECH FD200-19 504

Direct Replacement For CONTITECH FD200-19504

Direct Replacement For CONTITECH 6325

Direct Replacement For CONTITECH 4504

Direct Replacement For RRLOAD LS20

Packaging & Delivery
Sales Units: One item
Single package size: 24 × 24 × 24 cm
Individual gross weight: 3.588 kg
Package Type: Carton

Technical Data

The top cover has a diameter of 160mm, and has two 3/8-16UNC threaded holes and one 1/4NPTF air hole. The center distance between the two threaded holes is 89mm, and the center distance between the air hole and the threaded hole is 44.5mm.

The bottom cover has a diameter of 160mm, and has two 3/8-16UNC threaded holes with a center distance of 89mm.

The natural outer diameter of the air spring is 224mm, the maximum outer diameter is 251mm, the maximum height is 260mm, and the minimum height is 75mm.

Application of Double Convoluted Air Spring in Bricklaying Machine

In bricklaying machines, the core value of hyperbolic convoluted air springs is their superior vibration isolation, excellent load adaptability (self-leveling), and ability to provide long travel. These features directly translate into:

• Higher paving quality and accuracy: Stable platform reduces vibration disturbance.
• Longer machine life and lower maintenance costs: Protects delicate components from vibration damage.
• Significantly improved operator comfort and safety: Reduces fatigue and jolts.
• Enhanced machine stability and control: Adapts to a variety of loads and terrains.
• Improved productivity and machine utilization: Reduces downtime due to vibration issues and maintenance.

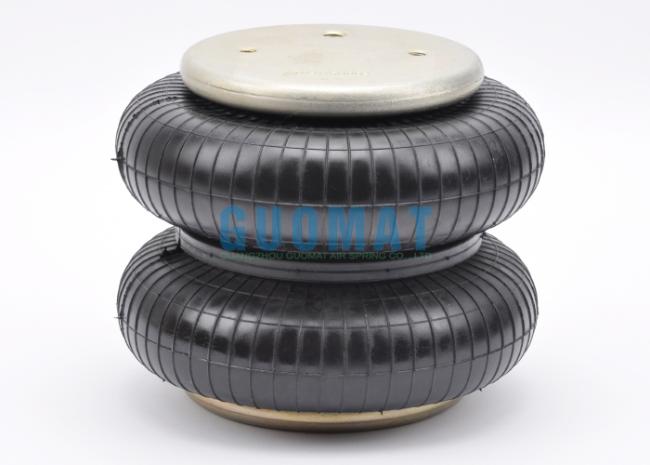

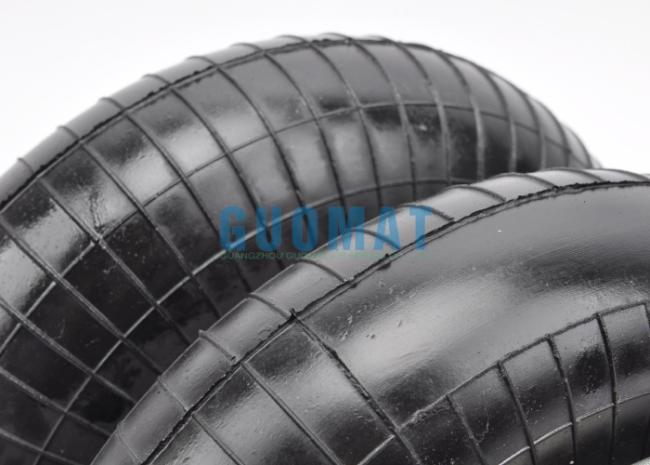

The Real Pictures
