FS200-10 CI Contitech Industrial Rubber Bellows G1/4 Air Spring For Large Drying Machines

OEM Numbers

Contitech FS200-10

Contitech FS 200-10

Contitech FS200-10 CI

Contitech FS 200-10 CI

Contitech FS200-10 CI G1/4

Contitech FS 200-10 CI G1/4

Contitech  2681047000

Single Convoluted Air Spring For Large Drying Machines

1. High Load Capacity: Convoluted designs inherently provide a large effective area, allowing a single spring to support the significant weight of a large drying drum, housing, and its load.

2. Excellent Vibration Isolation: Air springs excel at isolating low-frequency vibrations – precisely the type generated by unbalanced rotating drums, material tumbling, and drive systems in large dryers. This protects the machine structure, bearings, and surrounding equipment/facilities.

3. Large Stroke/Deflection: The convolutions allow for significant vertical travel. This accommodates:
* Load changes (wet vs. dry material).
* Machine settlement.
* Minor misalignment.
* Large dynamic movements during start-up/shutdown or imbalance events.

4. Automatic Load Leveling: By connecting to an air supply (often via a leveling valve), the air spring maintains a constant height regardless of load variations within its capacity. This keeps the drum centered and aligned, critical for belt drives and bearing life.

5. Adjustable Stiffness & Natural Frequency: The spring rate is primarily determined by air pressure. Increasing pressure raises the natural frequency. Operators can tune the system to avoid resonant frequencies during operation (e.g., during spin-up/down) for optimal isolation.

6. Lateral Stability (Good): While not as inherently stable as a double convoluted or rolling lobe design, a single convolution still provides reasonable lateral stability, especially when correctly sized and pressurized. This helps control drum sway.

7. Durability:Modern synthetic rubber compounds (like EPDM or Nitrile) resist heat, moisture, and potential chemical exposure common in drying environments.

8. Reduced Maintenance: Compared to mechanical springs or rubber blocks, air springs generally have fewer wear points and longer service life when protected from damage.

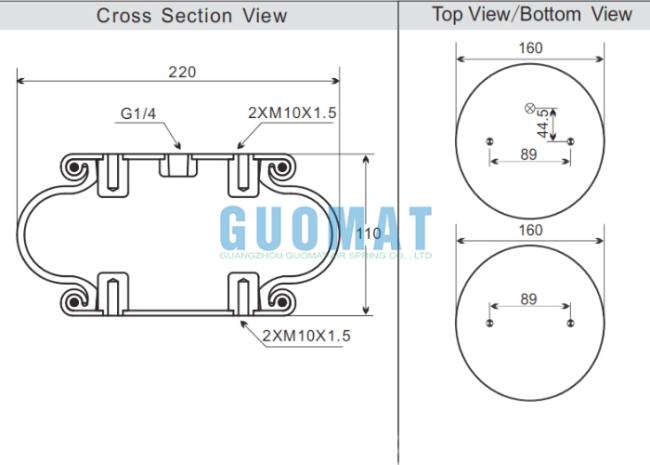

The Drawing of the 1B20010-1/4
