W013586884 Firestone Air Spring Bags FD 200-19 724 Contitech Crimped Convoluted Air Shock
W013586884 Firestone Air Spring Bags FD 200-19 724 Contitech Crimped Convoluted Air Shock
Description
Industrial air spring is a flexible element that uses compressed air to achieve elastic action. The core component is a flexible airbag made of high-strength rubber and cord. Its working principle is based on compressed air in a closed cavity: when subjected to external load, the airbag is compressed and the internal air pressure increases to support the load; when the load decreases, the airbag expands and recovers under the action of air pressure and its own elasticity. By adjusting the internal air pressure, its load-bearing capacity, stiffness and working height can be accurately and conveniently changed.
Brand: GUOMAT
GUOMAT No.: 2B6884
Model:For Industrial Machine
Material: Rubber Steel
Condition:Brand new
Warranty:12 Months
Packing: Neutral Packing Or As Requirement
Delivery:3-5 days
OEM Number
Firestone Part Number: W01-358-6884
Firestone Part Number: W01 358 6884
Firestone Part Number: W013586884
Firestone Bellow Number: 20
Contitech Part Number: FD200-19 724
Contitech Part Number: FD 200-19 724
Cross References:280-W01-358-6884, W01-358-6884, W013586884, 6884, 64712, 1103-0019, 11030019, FD20019724
Technical Data
| Cover Plate | Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Blind Nut | Screw and Gas Hole Distance Of Top Cover Plate:86mm |
| Screw Center Distance Of Bottom Cover Plate:89mm | |
| Rubber Bellow | Rubber Bellow MAX Diameter:251mm |
| The Working Stroke:MAX 274mm to MIN 81mm | |
| Maximum Height:274mm | |
| Minimum Height:81mm | |
| Compression Height:193mm |
Main Features and Applications
Adjustable stiffness and height: By changing the inflation pressure, the stiffness and equipment height can be adjusted online and steplessly, which is its biggest advantage.
Excellent vibration isolation performance: The air medium provides low natural frequency and high damping, which can effectively isolate high-frequency vibration and impact, protect precision equipment or improve the working environment.
Wide load range: A single air spring can withstand loads ranging from hundreds of kilograms to tens of tons.
Uniform load distribution: In a multi-point support system, automatic load balancing can be achieved through pipeline connection.
Long life and low maintenance: With reasonable design and proper use, the rubber airbag has a long life and relatively simple maintenance.

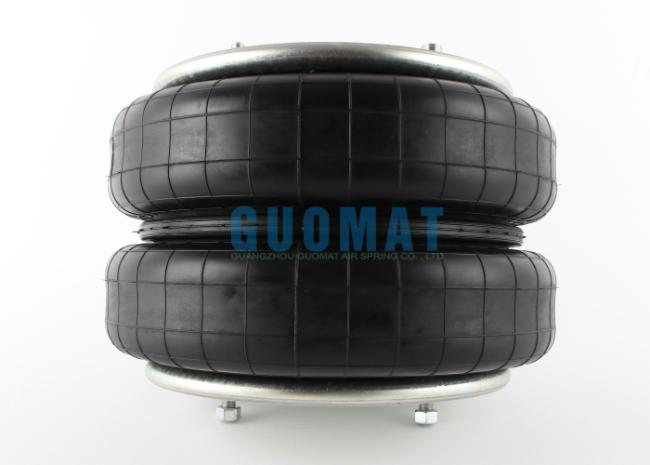

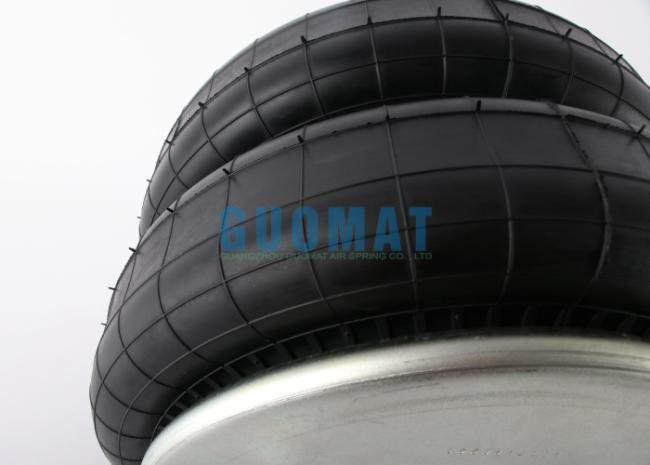

Product Details Picture
