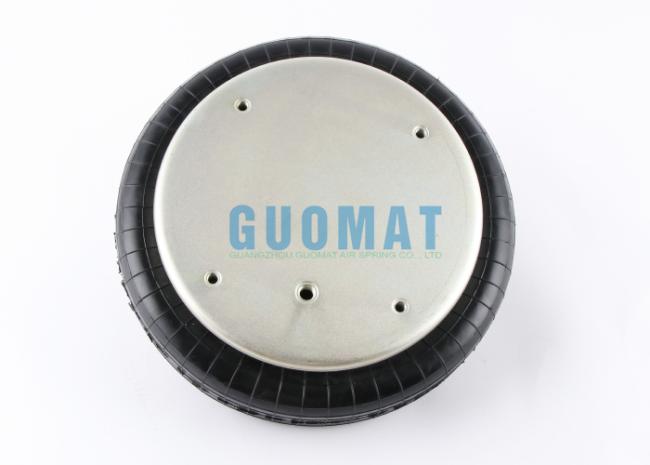

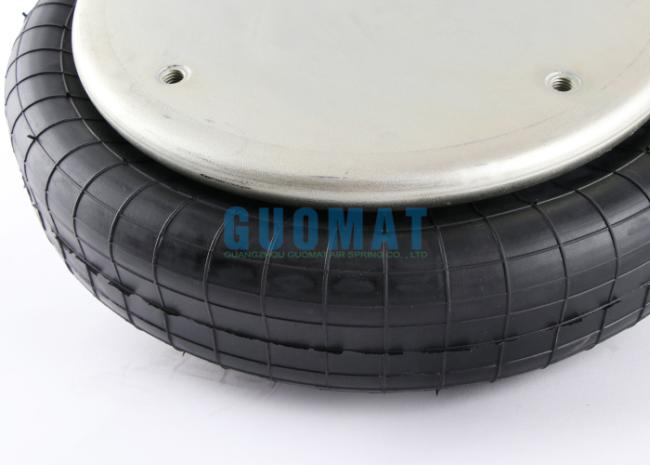

Contitech Industrial Air Spring FS530-14 Crimped Convoluted Air Bellow GUOMAT 1B53014
Contitech Industrial Air Spring FS530-14 Crimped Convoluted Air Bellow GUOMAT 1B53014
Product Details
Type:Single Convoluted Air Spring
Model Number:1B53014
Condition:Brand New
Material:Rubber + Steel
Warranty:12 Months
Delivery Time : About 2 - 8 working days after receiving your payment
GUOMAT 1B53014 OEM Numbers
Contitech Part Number: FS530-14
Contitech Part Number: FS 530-14
Contitech Part Number: FS530-14 CI
Contitech Part Number: FS 530-14 CI
Contitech Part Number: FS530-14 CI G3/4
Contitech Part Number: FS 530-14 CI G3/4
Contitech Part Number: FS530-14 CI G3/4 | 115209
Contitech Part Number: FS 530-14 CI G3/4 | 115209
Contitech Part Number: FS530-11
Contitech Part Number: FS 530-11
Contitech Part Number: FS530-11 CI
Contitech Part Number: FS 530-11 CI
Contitech Part Number: FS530-11 CI 3/4NPT
Contitech Part Number: FS 530-11 CI 3/4NPT
Contitech Part Number: FS530-11 CI 3/4NPT | 119304
Contitech Part Number: FS 530-11 CI 3/4NPT | 119304
Airbag Parameter
| Cover Plate | Top Cover Plate Diameter:289mm |
| Bottom Cover Plate Diameter:289mm | |
| Air Inlet | G1/2 |
| Blind Nut | Screw Center Distance Of Top Cover Plate:158.8mm |
| Screw Center Distance Of Bottom Cover Plate:158.8mm | |
| Screw And Gas Hole Diameter Of Top Cover Plate:79.4mm | |
| Top Cover Plate Screw (Nut) Tooth: 4x3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:4x3/8-16UNC | |
| Rubber Bellow | Rubber Bellow MAX Diameter:406mm |
| The Working Stroke:MAX 160mm to MIN 81mm | |
| Maximum Height:160mm | |
| Minimum Height:81mm | |
| Compression Height:79mm |
Single Convoluted Air Spring for Vibratory Conveyors
Adaptive Load: Adjustable air pressure allows it to adapt to varying material weights, maintaining a stable conveyor amplitude and preventing overloads or under-vibrations.
Efficient Vibration Isolation: Air damping absorbs vibration energy, reducing shock transmitted to the base, protecting equipment and reducing noise.
Long Life and Low Maintenance: The rubber + cord ply construction is fatigue-resistant and has no mechanical friction components, reducing wear.
Compact Design: The single convoluted structure provides high elastic travel within limited space, making it suitable for installation in space-constrained vibrating conveyors.
Maintenance Tips
- Regularly check the airbag for leaks or cracks.
- Avoid scratching the bellows surface with sharp objects.
- Monitor the pressure with a gauge and adjust to the designed value.
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
