55mm-160mm Stroke Single Convoluted Air Shock 1/4NPTF Industrial Air Spring

Product Details

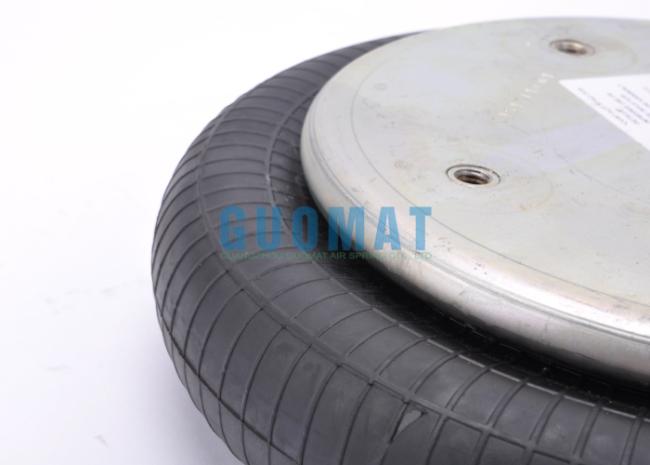

The Single Convoluted Air Spring is a high-performance rubber air spring designed for industrial and automotive applications. Its single-convoluted (single-lobed) structure provides excellent load-bearing capacity, vibration isolation, and durability. Made from reinforced rubber, it ensures flexibility and long service life under varying pressure conditions.

Brand: GUOMAT

Model No.: 1B5171

Bellow No.:1B330

Key Features

• Single-convoluted design for optimal balance between flexibility and load support.
• High-strength rubber construction resistant to wear, ozone, and chemicals.
• Precision-engineered dimensions for seamless integration into mechanical systems.
• Pressure adaptability for adjustable stiffness and height control.

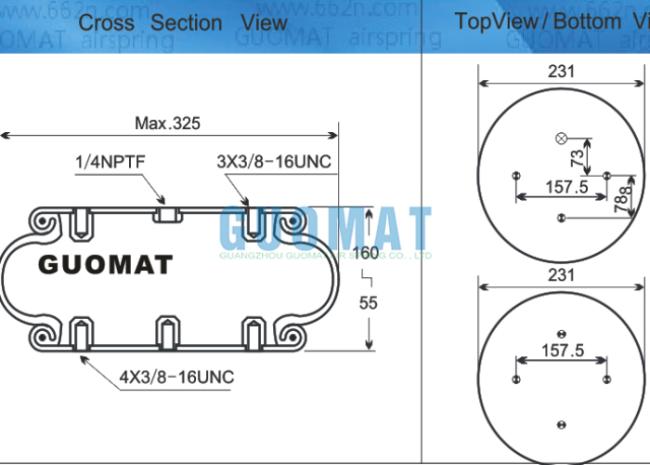

Technical Specifications
Maximum Diameter (Inflated): 325 mm
1 x 1/4 NPTF (National Pipe Thread Fuel, dry-seal) for air supply.
3 x 3/8-16UNC (Unified National Coarse Thread) for mounting.
4 x 3/8-16UNC (alternative configuration).
231 mm (Cover plate diameter)
157.5 mm (Distance between threaded holes)
73 mm (Distance between threaded holes and air holes)

160mm( MAX Height)

55mm(Min Height)

Applications
Industrial Machinery: Vibration damping in presses, conveyors, and heavy equipment.

Automotive & Transportation: Suspension systems for buses, trucks, and specialty vehicles.
