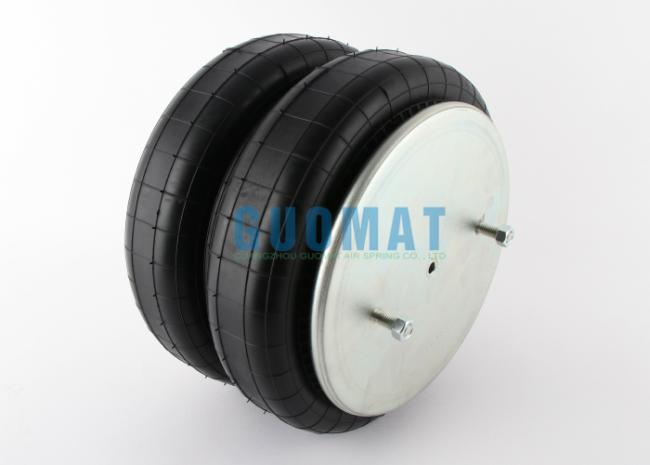

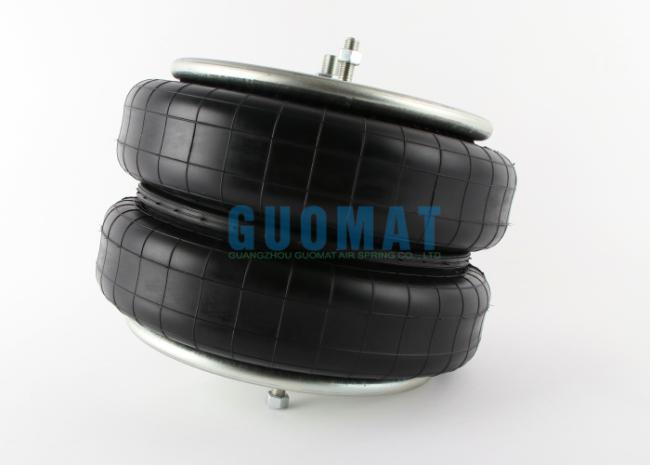

FD 530-35 530 Contitech Suspension Air Spring W01-358-7557 Firestone Vehicle Platform Lifting
FD 530-35 530 Contitech Suspension Air Spring W01-358-7557 Firestone Vehicle Platform Lifting
Product Introduction
The vehicle suspension airbag is an elastic element in the vehicle suspension system that supports the weight of the vehicle body and cushions road impacts through compressed air. Unlike traditional steel coil springs or leaf springs, the airbag suspension uses rubber or polyurethane airbags to inflate and deflate to adjust the height and stiffness. It is part of an active or semi-active suspension system.
- Brand: GUOMAT
- Model NO.: 2B7557
- Backed by a one-year warranty
- Made from high-quality natural rubber
- Manufactured to OE standard dimensions
- Double convoluted air spring bags
- Can be used to modify car suspension
Product OEM Number Information
Cross-Reference
| Firestone Style | 233-2 |
| Firestone Part Number | W01-358-7557 |
| Firestone Part Number | W01 358 7557 |
| Firestone Part Number | W013587557 |
| Firestone Number | W01-358-7557 |
| FleetPride Number | AS7557 |
| Goodyear Part Nuber | 2B14-383 |
| Goodyear Flex No. | 578923356 |
| Taurus | 6412 |
| Triangle | AS-4530 |
| Automann | SP2B34RC-7557 |
| TRP | AS75570 |
OE Manufacturer/Part No.
Histeer: 10316
Reyco: 19983-01
Watson&Chalin: AS-0089-1G
Product Technical Data
Cover plate (top and bottom) diameter: 289mm
Studs: M11x1.75
Combined studs:M18x1.5,1/4NPT
Stud center distance: 158mm
Outer diameter: 353mm
Maximum height: 391mm
Minimum height: 104mm
Bumper: Yes
We also Supply the Following Models
|
GUOMAT NO.2B7781 Firestone W01-358-7781 Contitech FD 530-35 454 Goodyear 2B12-427 Triange 6312 |
GUOMAT NO.2B6799 Firestone W01-358-6799 Contitech FD 530-35 543 Goodyear 2B14-476 Triange 6412/4543 |
|
GUOMAT NO.2B7557 Firestone W01-358-7557 Contitech FD 530-35 530 Goodyear 2B14-383 Triange 6412/4530 |
GUOMAT NO.2B7781 Firestone W01-358-7781 Contitech FD 530-35 545
|
|
GUOMAT NO.2B530-357 20 Contitech FD 530-35 720 |
|
Product Images
