12X2 Rubber Air Bellows W01-358-7431 Firestone Industrial Air Spring Air Actuator
Price:
$149.9-159.9/pc
MOQ:
6PCS
Delivery Time:
2-8 work days
Brand:
GUOMAT
Product Description
12X2 Rubber Air Bellows W01-358-7431 Firestone Industrial Air Spring Air Actuator
Product Information
- Manufacturer: GUOMAT
- Application: Widely used in various industrial equipment and mechanical systems
- Item Name: Double Convoluted Industrial Air Spring
- Model Number: 2H7431
- Bellows Number: 12X2
- Material: Rubber and Steel
- Warranty: 12 Months
- Cross Number: W01-358-7431
- Cross Number: W01 358 7431
- Cross Number: W013587431
- Cross Number: Style 22
Technical Data
Rubber bladder outer diameter: Ø301mm
Flange diameter: Ø250mm
Screw: 12-M8*1.25
Screw center distance: Ø228.5mm
Flange effective diameter: Ø183.05mm
Design height: 193mm
|
Assembly Height(in.) |
Volume@ 100PSIG(in3.) |
Pounds Force | ||||
| @20PSIG | @40PSIG | @60PSIG | @80PSIG | @100PSIG | ||
| 10.0 | 809 | 950 | 1810 | 2830 | 3810 | 4840 |
| 9.0 | 752 | 1170 | 2260 | 3460 | 4670 | 5880 |
| 8.0 | 685 | 1310 | 2590 | 3940 | 5350 | 6700 |
| 7.0 | 610 | 1430 | 2900 | 4390 | 5950 | 7450 |
| 6.0 | 529 | 1540 | 3170 | 4780 | 6470 | 8110 |
| 5.0 | 442 | 1640 | 3380 | 5100 | 6880 | 8630 |
| 4.0 | 349 | 1730 | 3520 | 5340 | 7180 | 9020 |
Style 22 Firestone Air Spring
| W01-358-7180 | Blind nuts,1/4 NPT |
| W01-358-7400 | Blind nuts,1/4 NPT,bumper |
| W01-358-7184 | Blind nuts,3/4 NPT |
| W01-358-7185 | Blind nuts,3/4 NPT,bumper |
| W01-358-7431 | Countersunk steel bead rings, 15/8 bolts, nuts, washers |
| W01-358-0226 | Rubber bellows only |
FAQ
① Regarding temperature:
Our standard industrial air springs have an operating temperature range of -40°C to +60°C.
② Regarding stroke:
Full stroke = maximum height - minimum height. The minimum compressed height is not the natural height, as the natural height can still be compressed.
③ Regarding minimum height:
The minimum height is adjusted based on air pressure. For example, some springs are at their lowest height at 1 air pressure. You'll need to purchase an air pressure gauge to test this. Different weights will result in different air pressures, but they can all be adjusted to their lowest height.
④ Regarding maximum load:
When fully loaded, the air spring will be compressed to its lowest height. Heavier weights will cause it to be compressed lower. At this time, when the air pressure is 7 kg, maximum air pressure + maximum load = minimum height. Air springs should never be used above their maximum load.
5 Regarding outer diameter:
The factory height is unsealed and requires inflation. The maximum outer diameter is generally a good reference. The factory outer diameter and height are not a guideline and will change as air pressure is applied.

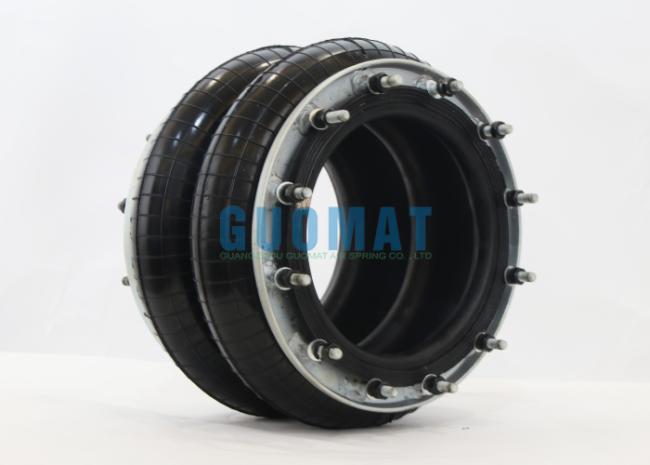

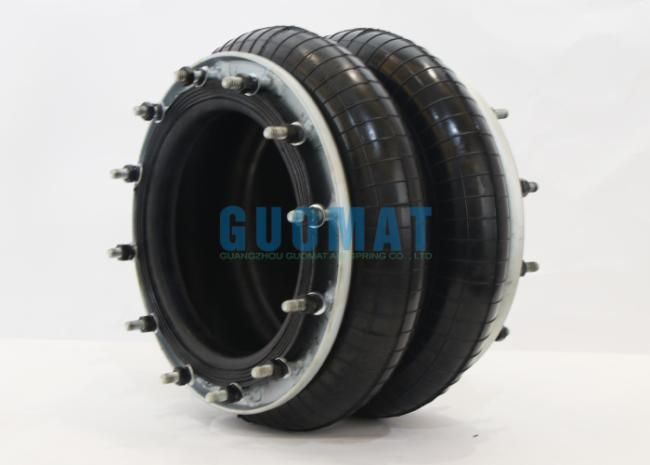

Product Image
