W01-358-6905 Air Suspension Spring Bag 2B9-206 Goodyear Pneumatic Actuator For Trailer
W01-358-6905 Air Suspension Spring Bag 2B9-206 Goodyear Pneumatic Actuator For Trailer
Product Description
Suspension air springs are a core component of high-performance suspension systems that utilize compressed air as the elastic medium. By adjusting internal air pressure, they dynamically change the spring's stiffness and height, providing unparalleled ride comfort, exceptional handling stability, and flexible vehicle height adjustment. They are an ideal choice for suspension systems in modern high-end passenger cars, commercial vehicles, and specialized vehicles.
The following is a double convoluted air spring made by GUOMAT, which can completely replace the following original models:
GUOMAT: 2B6905
GOODYEAR: 2B9-206 / 2B 9-206
GOODYEAR: 578-92-3-202 / 578 92 3 202 / 578923202
CONTITECH: 64510
CONTITECH: FD200-19 315 / FD 200-19 315 / FD200-19315
FIRESTONE: 6905
FIRESTONE: W01-358-6905 / W01 358 6905 / W013586905
AUTOMANN: ABSP2B12R-6905
DAYTON: 354-6905
E-Z RIDE: 8030120
HENDRICKSON: 458431
HENDRICKSON: B-3518
HENDRICKSON: B-5270
INT'L/NAVISTAR: 1685175C1
LOAD GUARD: SC2071
RIDEWELL: 1003586905C
RIDEWELL: S-2845-C
TAURUS: AS218-6905
TRIANGLE: 4315
TRP:AS69050
WATSON&CHALIN: AS-0020
Dimensional Data Parameters
| Top cover plate diameter: 160mm |
| Top screw thread center distance: 89mm |
| Top screw thread and air hole distance: 38.5mm |
| Bottom cover plate diameter: 160mm |
| Bottom screw thread and air hole distance: 89mm |
| Maximum extended height: 274mm |
| Minimum compressed height: 81mm |
| Maximum outer diameter: 251.5mm |
| Bumper: Yes |
Four advantages of Guomat
Quality assurance, the industry's first choice
Guangzhou Guomat Air Spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and development and production of air springs, and has cooperated closely with many companies for many years.
Complete products and wide application
Guomat products are widely used in passenger cars, trucks, high-end cars, industrial equipment (equipment that requires shock absorption and pressure adjustment) and other product fields, and are sold well at home and abroad.
Experienced and professional team
Over the years, a group of outstanding professional engineers at home and abroad have been organized to take root in the first-line production site, and actively summarize and sort out the characteristics of the production process in combination with the actual production situation.
Perfect after-sales service system
With warm and thoughtful service, honesty and trustworthiness, persistence, excellence, and enterprising spirit.

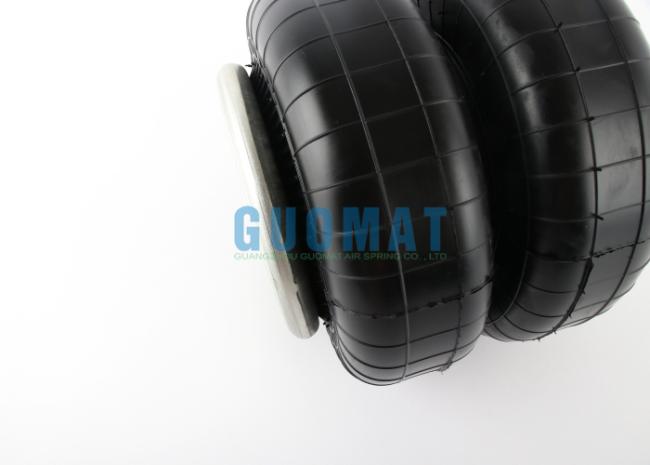

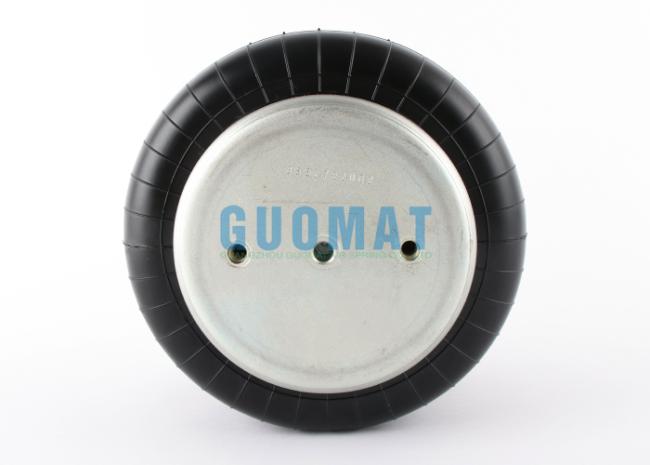

The Related Picture of Air Spring/Pneumatic Cylinder
