W01-358-7808 Firestone Triple Convoluted Air Actuator Style 313 Rubber Air Suspension
Price:
USD69.9-79.9/PC
MOQ:
5pcs
Delivery Time:
3-7 Working Days
Brand:
GUOMAT
Product Description
W01-358-7808 Firestone Triple Convoluted Air Actuator Style 313 Rubber Air Suspension
Product Description
| Product Name: | Air Spring |
| Description: | Suspension Air Spring |
| Model NO.: | 3B7808 |
| MOQ: | 1 PCS |
| Warranty: | 12 Months |
| Material: | Rubber |
| Package: | Carton |
| Payment: | L/C T/T West Union |
| Port of shipment | NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN |
| Shippment: | Bye sea, By air, by DHL Fedex |
Specifications and Detailed Technical Parameters: 3B7808

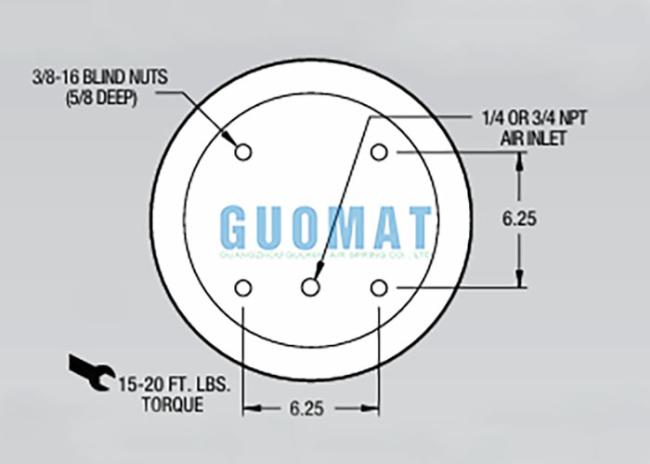

- Nut/blind nut
Top plate screw (nut) teeth: 4pcsx3/8-16UNC
Bottom cover plate screw (nut) teeth: 4pcsx3/8-16UNC
The screw center distance of the Top cover plate: 158.8 mm
The screw center distance of the bottom cover plate: 158.8 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT

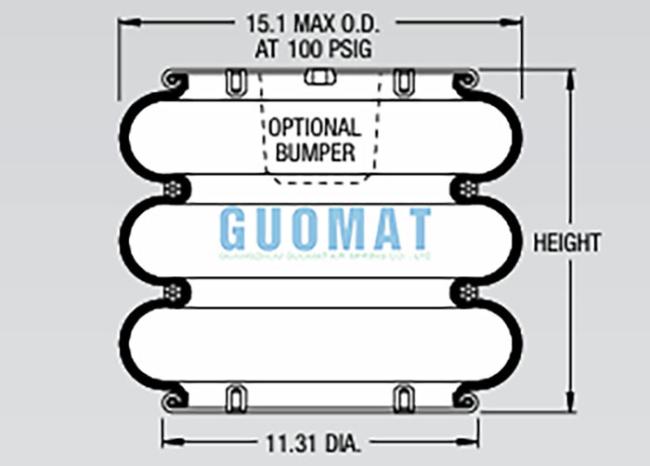

- Rubber Bellows
Top plate diameter (width): 289 mm
Diameter (width) of the bottom cover plate: 289 mm
Rubber bellows natural diameter: 356mm
Natural height: 282mm
- Bumper block/bumper block
With bumper block
- Belt loop/Belt loop
With belt loop: without belt loop
OEM Number/Cross Reference Number
| Firetsone | W01-358-7808 |
| Firetsone Style | 313 |
| Contitech | FD 330-22 364 |
| Goodyear | 2B12-313 |
| Goodyear | 2B12-459 |
| Goodyear | 578-93-3-350 |
| Triangle | 6319/4336 |
| Airkraft | 115061/3B-356 |
Brake & Wheel M3533
EI Ride 8030170
Dayton 3547808
Leland Sc2031
Navistar 554801C1
Hendrickson S13157
Ridewell 1003587808C
SAF Holland 57007808
Truck stell 63640
Peerless 55000030
| W01-358-7808 | Blind nuts, 1/4 NPT |
| W01-358-7811 | Blind nuts, 1/4 NPT, bumper |
| W01-358-7802 | Blind nuts, 3/4 NPT |
| W01-358-7807 | Blind nuts, 3/4 NPT, bumper |
| W01-358-7801 | Countersunk steel bead rings,13/4 bolts, nuts, washers |
| W01-358-7900 | Rubber bellows only |
| W01-358-1098 | Blind nuts, 1/4 NPT |
| W01-358-7815 | Blind nuts, 3/4 NPT |
| W01-358-1099 | Countersunk steel bead rings,13/4 bolts, nuts, washers |
