Firestone W01-M58-6155 Industrial Bellows Air Actuator 1/4 BSP Convoluted Air Spring
Price:
$49.9-59.9/pc
MOQ:
6pcs
Delivery Time:
2-8 work days
Brand:
GUOMAT
Product Description
Firestone W01-M58-6155 Industrial Bellows Air Actuator 1/4 BSP Convoluted Air Spring
Product Specifications
| Product Name | Rubber Air Spring |
|---|---|
| Brand | GUOMAT |
| GUOMAT Number | 1B7070 |
| Working Temperature | -40℃ to +70℃ |
| Failure Testing | ≥3 millions |
OE Manufacturer Numbers
- FIRESTONE: Style 131
- FIRESTONE: W01-M58-6155
- FIRESTONE: W01 M58 6155
- FIRESTONE: W01M586155
- FIRESTONE: WO1-M58-6155
- FIRESTONE: WO1 M58 6155
- FIRESTONE: WO1M586155
- CONTITECH: FS70-7
- CONTITECH: FS 70-7
- CONTITECH: FS70-7 2681015000
- CONTITECH: FS 70-7 2681015000
- CONTITECH: FS70-7 C12681015000
- CONTITECH: FS 70-7 C12681015000
- CONTITECH: FS 70-7 1/4 M8
- CONTITECH: FS 70-7 G1/4 M8
- CONTITECH: FS 70-7 CI G1/4
- CONTITECH: FS 70-7 Cl G1/4 M8
- CONTITECH: FS 70-7 CI / FS70-7C1 / FS707C1
- Enidine: YM-FS 70-7-0160/YMFS 70-7-0160/YMFS70-7-0160
- Enidine: YM-FS 70-7 CI G1/4 M8
- Enidine: Yl-FS 70-7-731/YIFS 70-7-731/YIFS70-7-731
- Enidine: Yl-FS 70-7 CI1/4NPT 3/8-16UNC
- Goodyear: 1B6-833/1B6833/1B6833
- Goodyear Flex No.: 579-913-510/579 913 510/579913510
- Phoenix: SP1 B 05/SP1B05
- B osch: 822419002
- Festo: EB-165-65/EB 165 65/EB16565
- Weforma: WBE 200-E1/WBE200-E1/WBE200E1
- Vigor: 1B 5002/1B5002
- Vigor Bellow: 1B70-7/1B707/1B707VKNTECH:1B 7070/1B7070
- VKNTECH Bellow: 1B70-7/1B707/1B707
- EAA: 1E70-7/1E707/1E707
- EAA Bellow: 1E70-7/1E707/1E707
- HONGLI: JBF100/96-1/JBF100 961/JBF100961
- CHENGUANG: 150086J-1/150086J1/150086J1

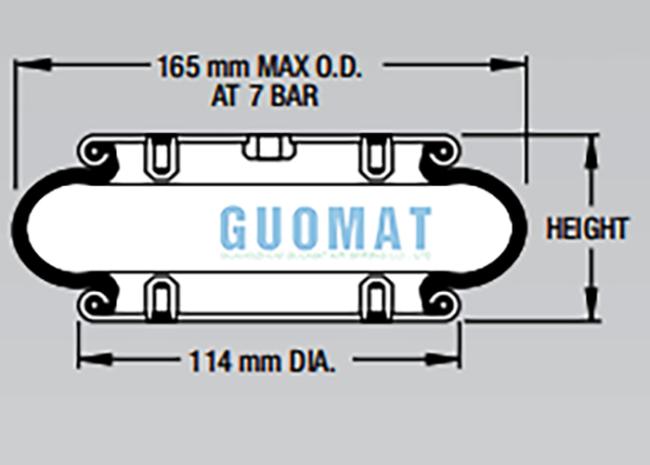

Technical Specifications
Max. Height: 114mm
Min. Height: 51mm
Design Height: 90mm
Air Inlet: 1/4BSP
Threaded Hole: M8X1.25
Max. Outer Diameter: 165mm
Cover Plate Diameter: 114mm
Center Distance Between Threaded Holes: 44mm
Performance Data
| Assembly Height (mm) | Volume @ 7BAR (cu cm) | EFF Area@7 BAR(cm*2) | kN Force | ||||
|---|---|---|---|---|---|---|---|
| @3BAR | @4BAR | @5BAR | @6BAR | @7BAR | |||
| 110 | 982 | 78 | 1.96 | 2.83 | 3.65 | 4.63 | 5.48 |
| 90 | 880 | 93 | 2.50 | 3.51 | 4.48 | 5.57 | 6.54 |
| 80 | 774 | 105 | 2.90 | 4.01 | 5.10 | 6.30 | 7.38 |
| 70 | 652 | 115 | 3.23 | 4.44 | 5.61 | 6.91 | 8.08 |
| 60 | 529 | 124 | 3.51 | 4.79 | 6.05 | 7.41 | 8.65 |
Product Images
