Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment

Price Negotiable

Price: $499-799/pc

MOQ: 1pc

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

Air Spring Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment

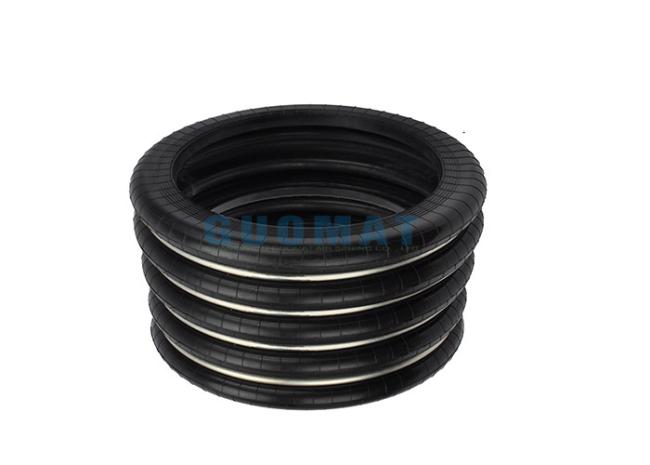

This GUOMAT F-600-5 Punch air spring are five Convolutions Reference to Yokohama No. S-600-5 . Punch air spring air cushion made of natural rubber through a series of processes made of rubber bladder, used in the punch on the air spring manufacturing process than ordinary industrial air springs to be much more complex, so the cost will be Higher, the price is naturally much higher than the other. In the middle with stainless steel rims, with four rims.

Net Weight:21.75 KG

Gross Weight:23 KG

Package Size:650mm*360mm*360mm

Details:

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
		Design High(mm)	Maximum High(mm)	Minimum Height(mm)
F-600-5	S-600-5	276	456	156	±113	660

Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
2830	76.6	138.3	1010	1.3	0.69	3.9-4.9

Features

By changing the internal pressure by compressing the air, the air spring withstands a wide range of pressure changes, so it is used in punching machines where the pressure range is very different.
It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.
It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.
This air spring is simple in structure and easy to install and disassemble.
The bellows type has less deformation of the rubber film during operation (expansion and contraction), so that excellent durability can be obtained.
The main component is rubber, without any sliding parts, so it can be easily maintained without refueling.
this air spring compared with other types of air springs, large stroke installation height can be kept low.
Because the air is used as an elastic body, it can be flexibly subjected to a large load by damping the compressed air. Such air springs do not allow other springs to use together.
