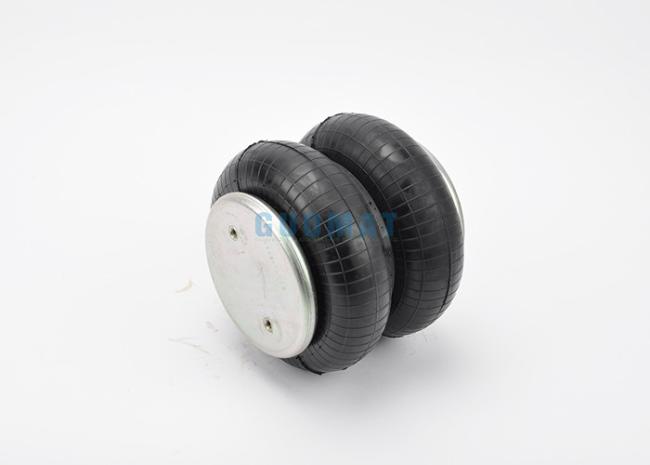

FESTO EB-250-185 Industrial Air Spring Actuators for Concrete Block Machinery

FD 20019  Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs XM8X1.25

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs XM8X1.25

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G 3/4

Screw Center Distance Between Gas Hole and Nut : 38 mm

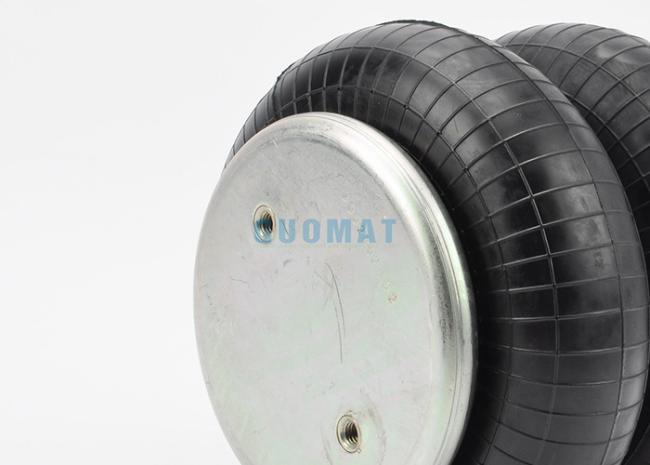

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 260 mm

Minimum Height :75mm

Stroke Height : 285 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

FESTO EB-250-185 Cross others OEM

Note:

• The air spring can only move on the workpiece, or it must be equipped with a limit stop at the end of the stroke, otherwise the rubber material of the air spring will be overloaded or cause internal damage
• A reset force is required to compress the air spring to the minimum height. Usually achieved by applying external force
• The entire air spring surface of the upper and lower plates must be used to absorb force
• Before disassembling the air spring, the air pressure in it must be exhausted
•During operation, the wall of the air spring must not be in contact with other parts, otherwise the air spring will be worn and damaged and air leakage will occur.

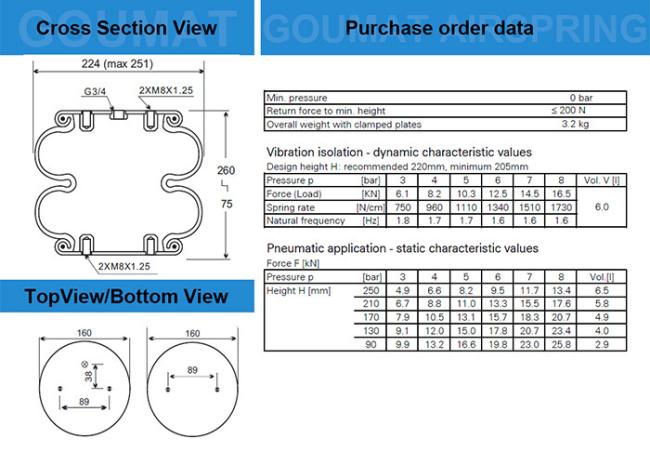

Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]
