Contitech Truck Air Shocks
Air Shocks For Trucks Contitech 4913 NP 02 Goodyear 9506 on Mercedes A 942 320 02 21
GUOMAT 1T4913NP02 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth : M16x1,5
Screw Center Distance of Top Cover Plate : 52 mm
❷ Combined link rod / Combo Stud
Gas Hole / Air inlet : M16x1,5.
Combo Stud Tooth :M24x1,5
❸ Cover Plate
Top Cover Plate Diameter: Ø155 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 248 mm
The Working Stroke : MIN 198 mm to MAX 598 mm
Maximum Height : 598 mm
Minimum Height :198 mm
Stroke Height : 400 mm
❺ Bumper block / Buffer block
Bumper Block

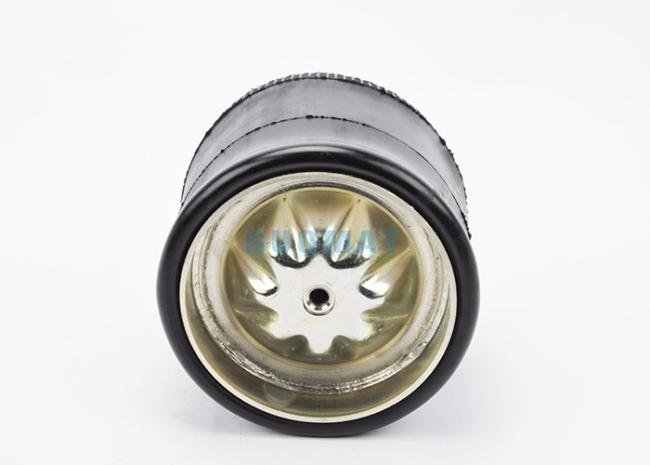

❻ Bottom Piston
Bottom Piston Diameter : Ø200 mm
Bottom Piston Height :155 mm
❼ Piston Bolt
Piston Bolt Tooth : M16X1.5
1T4913NP02 Cross References
| Cross References | Vehicles OEM References |
| Contitech 4913 NP 02 | Meritor |
| Goodyear : 9506 | : 04.060.6006.095 |
| Phoenix : 1KF 21-2 NP | Mercedes BENZ A 942 320 02 21 |
| Dunlop FR : D 12T 11 | |
| Airtech : 34390-02K/131002 | |
| FEBI : 32818 | |
| : 084.107-12A | |
| Templin : 04.060.6000.095 | |
| : 084.107-22A | |
| : 084.107-42A/084.107-72A | |
| : MLF7109 | |
| Granning : 15957 | |
| WABCO : 951 895 060 0 |

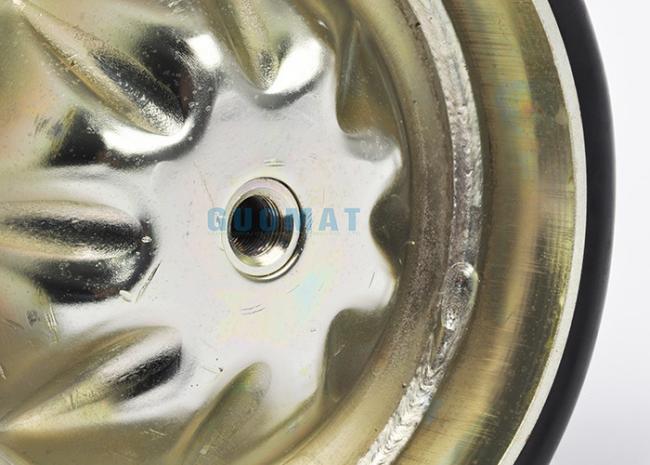

bottom piston

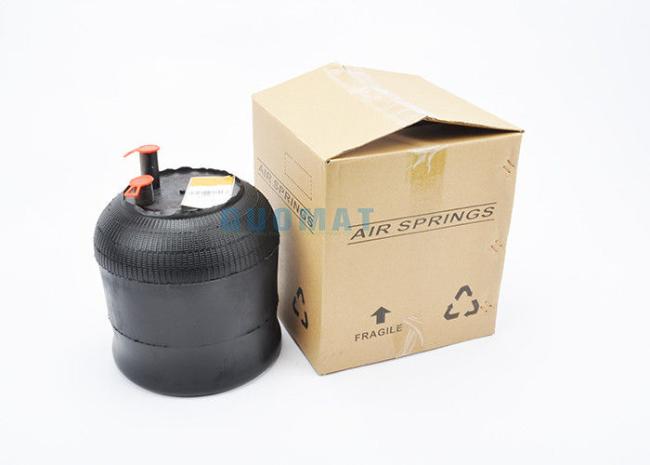

4913 NP 02 package is carton
