4420 NP 01 Truck Air Springs Fit to Meritor MLF7171 VOL-VO MLF7171 / 1076075 / 1076076
Price:
$59-159/pc
MOQ:
1pc
Delivery Time:
2-8 work days
Brand:
GUOMAT
Product Description

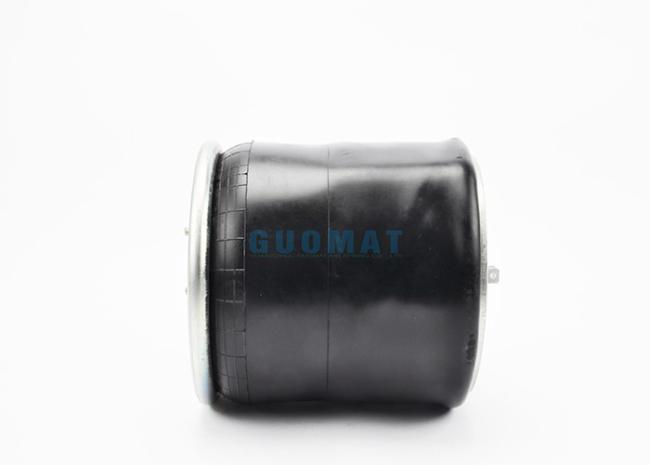

4420 NP 01 Truck Air Springs Fit to Meritor MLF7171 VOL-VO MLF7171 / 1076075 / 1076076
4420 NP 01 is using for Vehicles OEM References
| Cross References | VehiclesOEM References |
| Contitech 4420 NP 01 | Meritor : MLF7171 |
| Airtech : 134562/36075K | VOL-VO : MLF7171 |
| Granning : 16048 | VOL-VO : 1076075 |
| Peautomotive: 084.282-71A | VOL-VO : 1076076 |
| Peautomotive: 084.282-11A | |
| Templin : 04.010.6100.670 | |
| Templin : 04.030.6102.670 | |
| Templin : 04.060.6106.670 |
Technical Data of 1T4420NP01Truck Air Springs :
Weight : 7.5kg
Design height: 311mm
Height min : 190mm
Height max : 470mm
Working stroke : 280mm
Measurement diameter max :300mm
Space required : 325mm
Loading capacity at pressure pu min. : 5.0bar 24.0kn
Loading capacity at pressure pu max. : 7.0bar 34.5kn

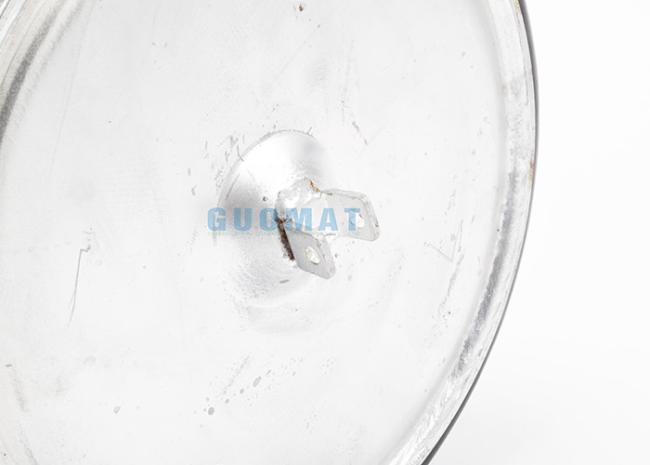

The base or bottom piston photo
There is a concave type iron stick out, both sides have two holes with screw tooth.
