WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03
WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03
GUOMAT 1T4022NP03 Technical parameters
❶ Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75
Screw Center Distance of Top Cover Plate : 150 mm
Distance Between Stud and Central Axis : 25 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1.5.
Distance Between Gas Hole and Stud :48 mm
Distance Between Gas Hole and Central Axis : 73 mm

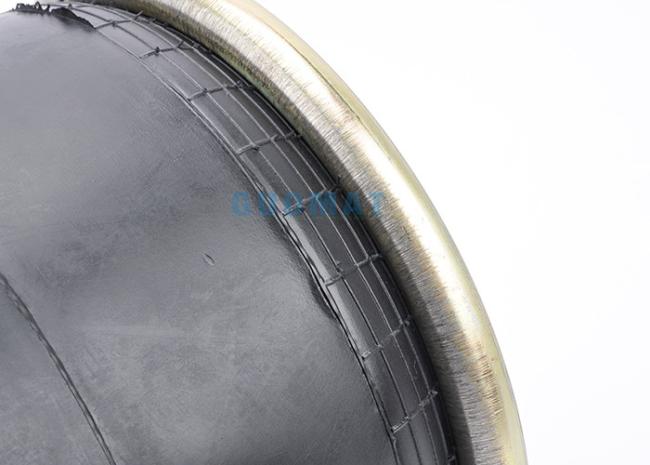

❸ Cover Plate
Top Cover Plate Diameter: Ø259 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 300 mm
Rubber Bellows MAX Height : 540 mm
Rubber Bellows MIN Height :185 mm
Working stroke : 355 mm
❺ Bumper block / Buffer block
Bumper Block height :78 mm
❻ Bottom Piston
Bottom Piston Diameter : Ø240 mm
Bottom Piston Height :141mm
❼ Piston Bolt
Piston Bolt Tooth : M16 X1.75
4 pieces of Bolt
Middle faster between center Bolt : Ø200 mm
WABCO Air Helper Spring 4022 N P03
| Cross References | Vehicles OEM References |
| CONTITECH 4022 N P03 | S.A.F 3.229.0029.00 |
| FIRESTONE 1T17BS-6 W01 M58 6367 | S.A.F 3.229.2129.00 |
| GOODYEAR 1R11-714 | S.A.F 3.229.2229.00 |
| PHOENIX 1DK 22 E-9**CPL | S.A.F 3.229.2429.00 |
| DUNLOP FR D12B14 | WABCO 951 811 710 0 |
| CF GOMMA 1 T 300-37 204677 | WABCO 951 811 751 0 |
| TAURUS KR 725-28**CPL | WABCO 951 811 714 0 |
| SAF Type : 2618V |
W01-M58-6367 / W01M586367 / WO1 M58 6367
4022 N P03 / 4022NP03 / 4022N P03
1R11-714 / 1R11 714 / 1R11714
W01 M58 6367 4022 N P03 cross WABCO NUMBER
| WABCO | 951 811 710 0 | 3.229.2129.00 |
| 951 811 714 0 | 3.229.2229.00 | |
| 951 811 751 0 | 3.229.2429.00 |
The base of W01M586367 have four screw for conneting,the four screw is On the same circumference of a circle.The base is made of plastic by GUOMAT.
