Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06

Price Negotiable

Price: $59-159/pc

MOQ: 1pc

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

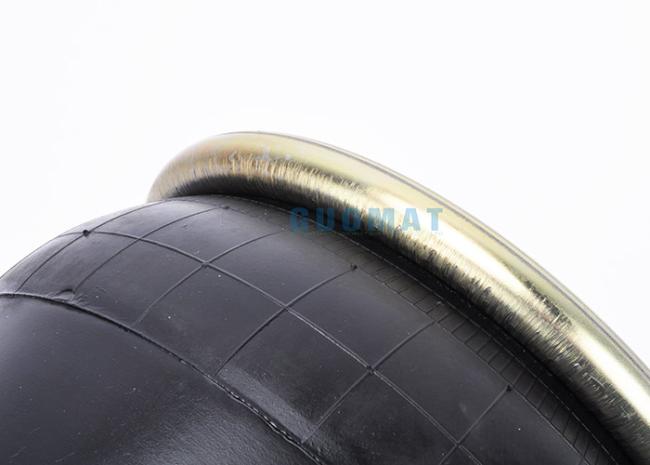

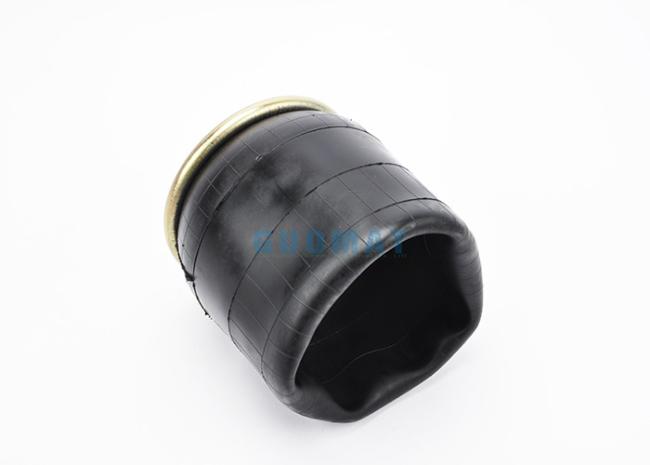

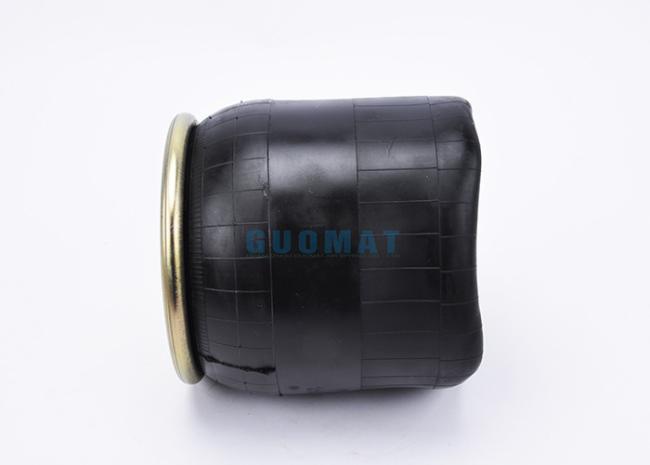

Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06 GOODYEAR 1R11-764 on Weweler

GUOMAT 1T4157NP06 Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth : 2 pcs M10

Screw Center Distance of Top Cover Plate : 150 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : M22X1.5

❸ Cover Plate

Top Cover Plate Diameter: Ø231 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 291 mm

Rubber Bellows MAX Height : 655 mm

Rubber Bellows MIN Height : 234 mm

Working stroke : 421mm

❺ Bumper block / Buffer block

Bumper Block height :112 mm

❻ Bottom Piston

Bottom Piston Diameter : Ø260 mm

Bottom Piston Height :192.5 mm

❼ Piston Bolt

Piston Bolt

W01 M58 8186 Truck Air Springs fits for Weweler US 06316F

The usual kinds of rolling of air springs cross number

Contitech	Firestone	Goodyear	Phoenix	Dunlop FR	CF Gomma	Taurus
4028 NP 05		1R14-721		D 14B 51
912 NP 02	W01-M58-7385	1R14-028	1D 28D-2
725 NP01	W01-M58-7529	1R14-704		D 14U 38		UR 836-11
4159 NP 03	W01-M58-7548	1R12-701	1DK 21B-4	D 12B 01	1T 323-40	KR 509-22
910 12P 720	W01-358-7667
6607 NP 01	W01-M58-8473	1R11-805	1DF17A-1	D11B42
11 10.5E-16A320	W01-358-8050	1R14-039
11 10.5E-15A419	W01-358-8052	1R14-042
11 10.5A-16P523	W01-358-8053	1R14-147
AS 8091	W01-358-8091	1R14-171
4157 NP 03	W01-M58-8185	1R11-749	1DK 21B-1	D 12B 22		DA 34158
4157 NP 06	W01-M58-8186	1R11-764	1DK 21A 1	D 11B 37
6606 NP 01	W01-M58-8477	1R11-848	1D 20E-1
912 NP 01	W01-M58-8502	1R14-728
4881 NP 02	W01-M58-8601	1R14-701	1DK 32K	D 14U 37		UR 838-01T
