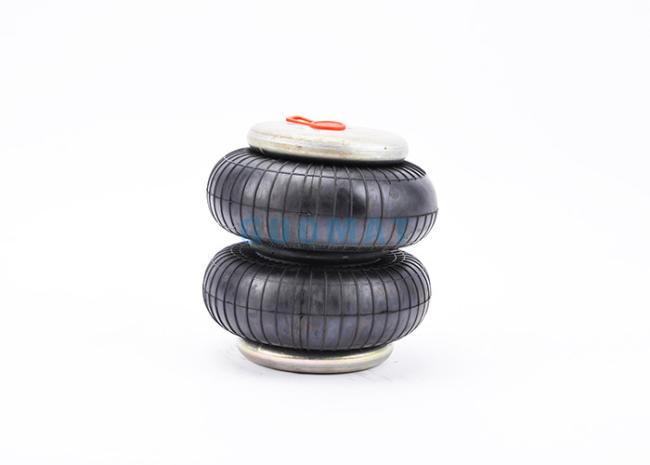

Air Suspension Parts W01-358-7325 Goodyear Part Number 2B8-150 / 2B8-153 / 2B8-550

W01-358-7325 To FD 120-17 509 and Goodyear Part Number 2B8-150 / 2B8-153 / 2B8-550

Assembly Weight: 5.6 lbs

Loading Capacity at 20 psig: 436 lbsf

Loading Capacity at 60 psig: 1,308 lbsf

Loading Capacity at 90 psig: 1,962 lbsf

Operating Temperature: 57Cº to -54Cº

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 52 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 52 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : M12X1.5

❸ Cover Plate

Top Cover Plate Diameter (Width): 135 mm / 5.31 inches

Bottom Cover Plate Diameter (Width): 135 mm / 5.31 inches

Top Cover Plate Number: 3450

Bottom Cover Plate Number: 3436

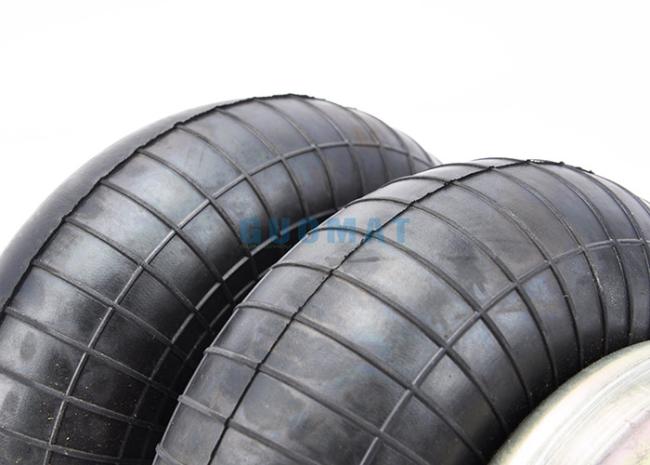

❹Rubber Bellows

Rubber Bellows Natural Diameter : 189 mm

Rubber Bellows Natural Height : 177 mm

Compressed Height: 79 mm / 3.12 inches

Design Height: 178mm-203mm / 7-8 inches

Maximum Diameter: 218 mm / 8.6 inches

Bellows # NO.: 26

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

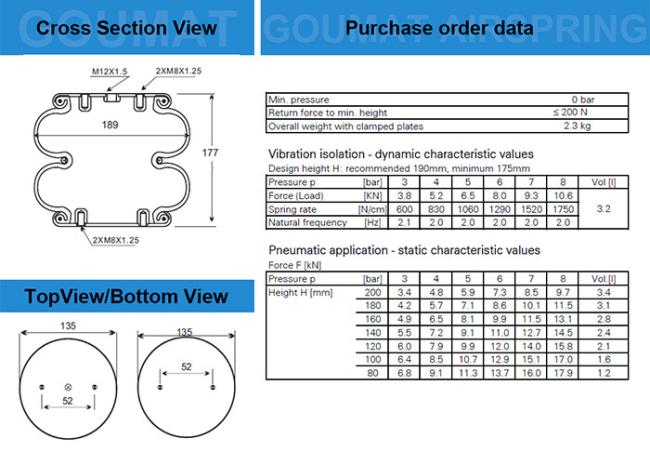

FD120-17509 Pictures show the information includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values
