CONTI 4158NP03 Truck Air Springs GOODYEAR 1R12-749 VIBRACOUSTIC V1DK20B-1 Schmitz

Name: CONTI 4158NP03 Truck Air Springs GOODYEAR 1R12-749 VIBRACOUSTIC V1DK20B-1 Schmitz
Brand: GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Price Negotiable

Price: $59-159/pc

MOQ: 1pc

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

CONTI 4158NP03 Truck Air Springs GOODYEAR 1R12-749 VIBRACOUSTIC V1DK20B-1 Schmitz

OEM Cross Number:

GUOAMT NO.:1T4158NP03

CONTITECH 4158 N P03 / 4158NP03 / 4158N P03
PHOENIX 1DK 20 B-1 / 1DK20B-1 / 1DK20B1
DUNLOP FR D12B22

Contitech Number: 4158 N P03
Dunlop FR Number: D12B22
Firestone Number: W01-M58-6285
Firestone Number: W01 M58 8185
Firestone Number: 1T15MPW-9
Goodyear Number: 1R12-749
Goodyear Number: 566-24-3-510
Airtech Number: 38185 C PP
Blacktech Number: RML75269CP
Phoenix Number: 1 DK 20 B-1
Primeride Number: 54158 A P03
Vibracoustic Number: V1DK20B-1

CONTI Number: 4158NP03
DUNLOP Number: FR Number: D12A10
DUNLOP Number: FR Number: D12B22
FIRESTONE Number: 1T15MP-9
FIRESTONE Number: 1T15MPW-9
FIRESTONE Number: W01M586285
FIRESTONE Number: W01M588185
GOODYEAR Number: 1R12-749
GOODYEAR Number: 566-24-3-510
AIRTECH Number: 133782
AIRTECH Number: 34158KPP
AIRTECH Number: 38185KPP
GART Number: D278/HS
PHOENIX Number: 1DK20B-1
VIBRACOUSTIC Number: V1DK20B-1
VIBRACOUSTIC Number: V1KF21-2

OEM Suspension Supplier Number:

SCHMITZ-ANHANGER 750999
WEWELER US06285
Schmitz 014 892
Schmitz 750 999
Weweler US 06285
Scania 2198334
Schmitz Number: 014 892
Schmitz Number: 750 999
Weweler Number: US 06285
ROR Number: MLF7037
ROR Number: MLF7179
SCHMITZ Number: 750999

WABCO Number: 9518127490
WEWELER Number: US06285F

Gart Number: 278.1.530/1
Gart Number: 278.1.530
Gart Number: D278/HS
Neotec Number: NEOTEC

AIRTECH
133782
AIRTECH PROD. NO.
38185 KPP
AUTOMINT
2920
BLACKTECH
RML 79296 CP
CONTINENTAL
4158 N P03
CONTITECH
60452
DUNLOP FRANCE
D12B22
FIRESTONE REF.
WO1 M58 8185
STYLE N0.
1T15MP-9
GOODYEAR
1R12-749
GRANNING
1 5657
PHOENIX
1DK20B-1
ROADLINK
22043
TAURUS
DA 34158/0103
WABCO
951812 749 0

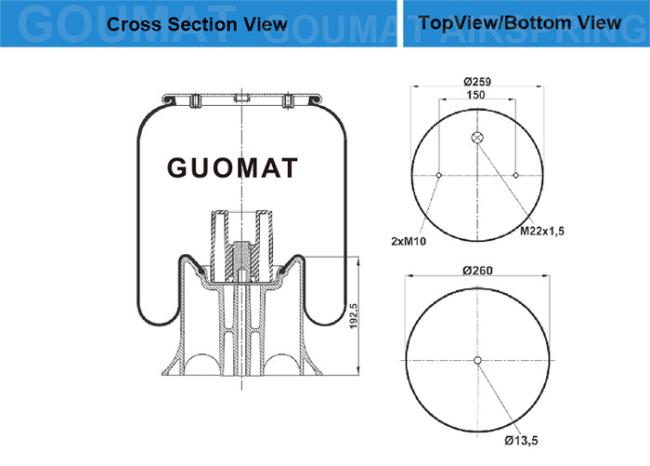

Technical data

Weight : 7,5 kg
K009
M10: max. 35 Nm
M12: max. 70 Nm
M22x1.5: max. 20 Nm

1R12 12" DIAMETER ROLLING LOBE
Goodyear 12" Diameter Rolling Lobe Air Springs
Part Number	Top Plate Qty	Bottom Piston Qty	Top Plate Dia	Bottom Plate Dia.	Collapsed Height	Flexmember	Piston	Piston Type
1R12-014	2	1	7.7	10.1	7.8	566-24-3-019	566-20-7-011	A
1R12-028	2	2	7.5	10.12	7.1	566-24-3-024	566-20-7-079	S
1R12-047	2	1	7.7	10.1	7.8	566-24-3-019	566-20-7-011	A
1R12-066	2	4	9	10.1	6.5	566-24-3-038	566-20-7-080	C
1R12-069	3	1	9	9.8	7.5	566-24-3-038	566-20-7-235	C
1R12-090	2	2	9	10.1	6.5	566-24-3-038	566-20-7-079	S
1R12-092	2	4	9	10.1	7.7	566-24-3-038	566-20-7-080	C
1R12-093	2	2	9	—	7.7	566-24-3-038	—	—
1R12-095	2	1	9	9.25	4.4	566-24-3-067	566-20-7-014	S
1R12-097	2	1	9	—	4.4	566-24-3-067	—	—
1R12-103	2	4	9	10.13	9.4	566-24-3-066	566-20-7-006	A
1R12-113	2	4	9	—	9.4	566-24-3-066	—	—
1R12-127	2	2	7.5	9.27	7.1	566-24-3-024	566-20-7-240	C
1R12-132	2	4	9	10.1	6.1	566-24-3-076	566-20-7-036	A
1R12-139	2	4	9	10.13	12.5	566-24-3-076	566-20-7-006	A
1R12-142	2	4	9	10.13	9.4	566-24-3-066	566-20-7-006	A
1R12-145	2	4	9	10.13	9.4	566-24-3-066	566-20-7-006	A
1R12-154	2	2	7.7	10.12	8	566-24-3-048	566-20-7-120	C
1R12-156	2	1	9	8.6	4	566-24-3-067	566-20-7-055	A
1R12-167	2	4	9	10.1	7.7	566-24-3-066	566-20-7-080	C
1R12-169	3	4	9	10.1	7.3	566-24-3-076	566-20-7-036-03	A
1R12-178	2	2	9	8.6	5.1	566-24-3-067	566-20-7-055	A
1R12-182	2	2	9	10.12	6.2	566-24-3-038	566-20-7-079	S
1R12-185	2	4	9	10.13	7.6	566-24-3-066	566-20-7-080	C
1R12-188	2	2	9	10.12	7.1	566-24-3-038	566-20-7-079	S
1R12-195	2	4	9	10.13	9.4	566-24-3-066	566-20-7-006	A
1R12-204	2	2	9	8.6	3.7	566-24-3-067	566-20-7-055	A
1R12-205	2	2	9	8.6	5.1	566-24-3-076	566-20-7-055	A
1R12-212	2	2	—	10.12	6.2	566-24-3-072	566-20-7-079	S
1R12-217	2	2	—	10.12	7.3	566-24-3-048	566-20-7-120	C
1R12-220	2	4	9	10.1	7.7	566-24-3-038	566-20-7-080	C
1R12-256	2	4	10	9.9	9.5	566-24-3-090	566-20-7-159	C
1R12-261	2	4	9	10.13	9.4	566-24-3-066	566-20-7-006	A
1R12-265	2	4	9	10.1	7.7	566-24-3-066	566-20-7-080	C
1R12-274	2	2	9	10.12	8.1	566-24-3-097	566-20-7-079	S
1R12-279	2	4	9	10.1	9	566-24-3-066	566-20-7-080	C
1R12-281	2	5	9	10.1	9	566-24-3-066	566-20-7-080	C
1R12-285	2	4	9	10.12	7	566-24-3-038	566-20-7-080	C
1R12-288	2	2	7.75	10.12	7	566-24-3-048	566-20-7-120	C
1R12-303	2	1	9	11.1	8.6	566-24-3-108	566-20-7-116	C
1R12-304	2	2	7.75	9.27	7.1	566-24-3-048	566-20-7-240	C
1R12-309	3	5	9	9.5	6	566-24-3-067	566-20-7-164	S
1R12-324	2	1	9	8.6	3.7	566-24-3-067	566-20-7-055	A
1R12-325	2	1	9	8.6	5.1	566-24-3-076	566-20-7-055	A
1R12-335	2	4	9	10.13	9.4	566-24-3-090	566-20-7-006	A
1R12-350	3	1	9	9.25	5.3	566-24-3-061	566-20-7-197	A
1R12-351	3	1	9	9.25	5.3	566-24-3-061	566-20-7-197	A
1R12-355	2	5	9	10.1	5.6	566-24-3-076	566-20-7-036	A
1R12-356	2	5	9	10.1	6.5	566-24-3-038	566-20-7-080	C
1R12-357	2	4	9	10.13	10.7	566-24-3-066	566-20-7-006	A
1R12-358	3	5	9	10.1	7.7	566-24-3-038	566-20-7-080	C
1R12-359	2	1	9	9.25	5.3	566-24-3-061	566-20-7-197	A
1R12-365	2	2	9	10.23	8.1	566-24-3-038	566-20-7-079	S
1R12-366	1	4	9	9.5	7.3	566-24-3-038	566-20-7-163	S
1R12-367	1	4	9	9.5	5.5	566-24-3-076	566-20-7-164	A
1R12-369	2	1	9	10.13	6.7	566-24-3-038	566-20-7-079	S
1R12-370	2	5	9	10.1	6.1	566-24-3-076	566-20-7-036	A
1R12-375	1	4	9	9.5	7.8	566-24-3-066	566-20-7-163	S
1R12-383	2	1	9	9.25	4.4	566-24-3-061	566-20-7-014	S
1R12-394	3	2	9	—	7.3	566-24-3-038	—	—
1R12-395	2	4	9	10.1	7.7	566-24-3-066	566-20-7-080	C
1R12-396	3	2	9	9.27	7.3	566-24-3-038	566-20-7-240	C
1R12-400	2	1	9	10.12	6.2	566-24-3-038	566-20-7-246	S
1R12-401	2	2	9	10.23	6.7	566-24-3-038	566-20-7-221	C
1R12-402	2	1	9	10.13	8.1	566-24-3-097	566-20-7-246	S
1R12-403	2	1	9	10.13	7.25	566-24-3-097	566-20-7-246	S
1R12-404	2	1	9	10.31	8.1	566-24-3-097	566-20-7-246	S
1R12-405	2	1	9	10	7	566-24-3-097	566-20-7-220	C
1R12-421	2	4	9	10.1	7	566-24-3-076	566-20-7-158	C
1R12-422	2	4	9	10.1	6.1	566-24-3-076	566-20-7-246	S
1R12-423	2	4	9	10.13	8.1	566-24-3-038	566-20-7-246	S
1R12-424	2	2	9	10.23	8.1	566-24-3-097	566-20-7-246	S
1R12-432	2	1	9	10	6.7	566-24-3-066	566-20-7-236	C
1R12-432	2	4	7.9	10.13	9.5	566-24-3-048	566-20-7-006	A
1R12-435	2	1	9	9.25	4.4	566-24-3-067	566-20-7-014	S
1R12-436	2	4	9	10.1	7.9	566-24-3-038	566-20-7-158	C
1R12-437	2	4	9	10.1	5.5	566-24-3-076	566-20-7-156	C
1R12-438	2	4	9	10.1	7	566-24-3-038	566-20-7-158	C
1R12-439	2	1	9	9.8	9.8	566-24-3-066	566-20-7-237	C
1R12-441	2	1	9	9.8	7.8	566-24-3-038	566-20-7-235	C
1R12-445	2	4	9	10.1	5.5	566-24-3-097	566-20-7-158	C
1R12-446	2	4	9	10.1	7.9	566-24-3-097	566-20-7-158	C
1R12-454	3	2	9	10.12	7.3	566-24-3-038	566-20-7-079	S
1R12-462	2	1	9	10.13	8.1	566-24-3-038	566-20-7-246	S
1R12-467	2	4	9	10.13	7.6	566-24-3-066	566-20-7-005	A
1R12-480	2	1	9	9.8	7.4	566-24-3-066	566-20-7-235	C
1R12-481	2	1	9	9.8	7.4	566-24-3-097	566-20-7-235	C
1R12-484	2	2	9	9.8	10.5	566-24-3-038	566-20-7-215	C
1R12-485	2	2	9	9.8	9.9	566-24-3-038	566-20-7-215	C
1R12-486	2	2	9	9.8	10.5	566-24-3-038	566-20-7-215	C
1R12-487	2	1	9	9.8	5.5	566-24-3-067	566-20-7-239	C
1R12-492	2	4	9	10.1	5.5	566-24-3-076	566-20-7-036	A
1R12-498	2	1	9	9.8	9.2	566-24-3-097	566-20-7-237	C
1R12-499	2	1	9	9.8	6.7	566-24-3-038	566-20-7-238	C
1R12-502	2	1	9	9.9	7.1	566-24-3-097	566-20-7-235	C
1R12-504	2	1	9	9.8	10	566-24-3-066	566-20-7-237	C
1R12-505	2	1	9	9.8	8	566-24-3-076	566-20-7-235	C
1R12-508	2	1	9	9.3	4.5	566-24-3-067	566-20-7-251	C
1R12-509	2	4	9	10.13	7.6	566-24-3-038	566-20-7-005	A
1R12-511	2	2	—	9.27	6.2	566-24-3-048	566-20-7-240	C
1R12-512	2	4	9	10.1	6.2	566-24-3-076	566-20-7-156	C
1R12-523	2	1	9	10	6.7	566-24-3-066	566-20-7-236	C
1R12-523	2	4	9	10.1	10.3	566-24-3-038	566-20-7-080	C
1R12-532	2	1	9	9.8	7.4	566-24-3-097	566-20-7-235	C
1R12-538	2	1	9	10	6.7	566-24-3-038	566-20-7-236	C
1R12-538	2	4	9	10.1	4.7	566-24-3-076	566-20-7-036	A
1R12-543	2	2	9	9.8	7	566-24-3-076	566-20-7-212	C
1R12-552	2	2	9	9.8	9.9	566-24-3-038	566-20-7-215	C
1R12-553	2	2	9	9.8	7.4	566-24-3-038	566-20-7-213	C
1R12-554	2	2	9	9.8	8.2	566-24-3-038	566-20-7-214	C
1R12-555	2	2	9	9.3	4.5	566-24-3-067	566-20-7-253	C
1R12-556	2	2	9	9.3	5.4	566-24-3-067	566-20-7-252	C
1R12-557	2	2	9	9.3	5	566-24-3-067	566-20-7-252	C
1R12-558	2	2	9	9.3	4.5	566-24-3-067	566-20-7-252	C
1R12-559	2	2	9	9.3	4.5	566-24-3-067	566-20-7-252	C
1R12-560	2	2	9	9.3	4.5	566-24-3-067	566-20-7-253	C
1R12-561	2	2	9	9.3	4	566-24-3-067	566-20-7-253	C
1R12-562	2	1	9	9.3	4.5	566-24-3-067	566-20-7-251	C
1R12-563	1	2	9	9.3	4.5	566-24-3-067	566-20-7-252	C
1R12-567	3	1	9	9.8	6.7	566-24-3-038	566-20-7-235	C
1R12-568	3	1	9	9.8	6.7	566-24-3-066	566-20-7-235	C
1R12-571	2	1	9	9.8	6.5	566-24-3-067	566-20-7-238	C
1R12-580	2	1	10.3	10.6	9.5	566-24-3-117	566-20-7-299	C
1R12-584	2	4	9	10.1	7	566-24-3-038	566-20-7-158	C
1R12-586	2	1	9	9.8	10.6	566-24-3-038	566-20-7-237	C
1R12-603	2	1	9	10.63	8.6	566-24-3-108	566-20-7-241	A
1R12-615	2	1	9	10	6.7	566-24-3-097	566-20-7-236	C
1R12-620	2	1	9	9.8	6	566-24-3-076	566-20-7-239	C
1R12-621	2	4	9	9.8	9.5	566-24-3-159	566-20-7-159	C
1R12-622	2	1	9	10	6.7	566-24-3-097	566-20-7-236	C
1R12-631	2	2	9	10.12	8.1	566-24-3-120	566-20-7-079	S
1R12-636	2	5	9	9.8	7.6	—	—	—
1R12-647	2	1	9	10	5.3	—	—	—
1R12-647	2	4	9	9.9	9.5	566-24-3-090	566-20-7-159	C
1R12-669	3	1	9	9.3	7.5	566-24-3-038	566-20-7-053	S
