S-220-2R Rubber Air Spring 220-2 Air Bag Suspension With Steel Girdle Ring
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
2-8 work days
Brand:
GUOMAT
Product Description

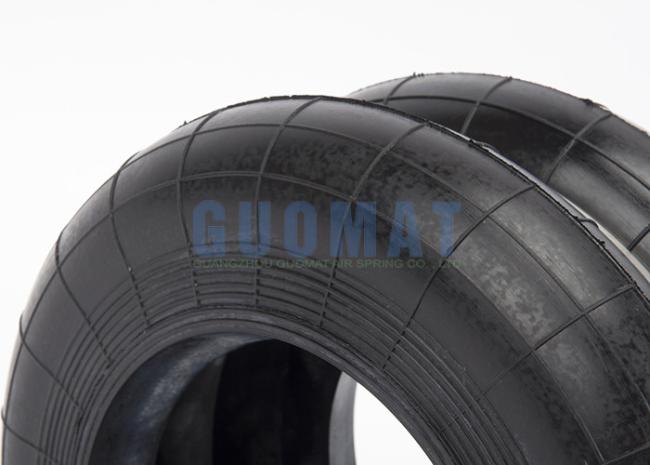

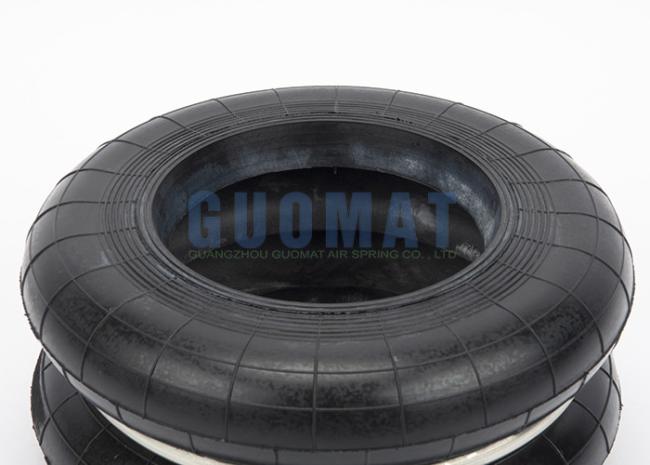

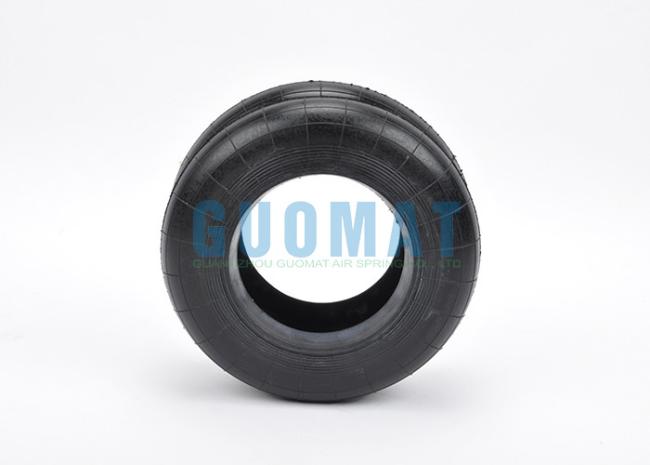

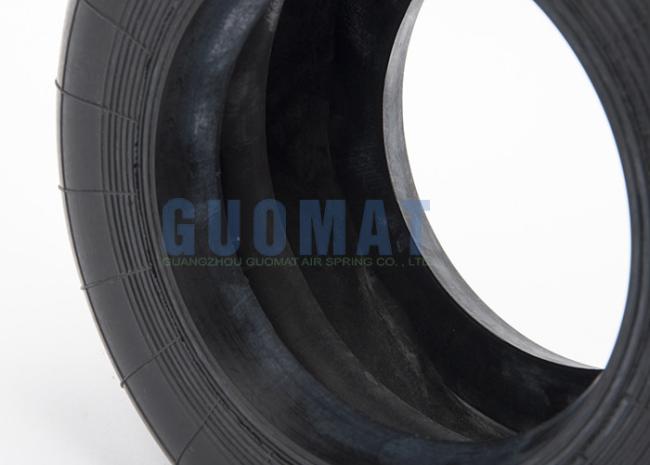

S-220-2R Rubber Air Spring 220-2 With Steel Girdle Ring For Crank Press
Weight and packing of S-300-3 R:
Net Weight:1.75 KG
Gross Weight:2.5 KG
Package Size:33mm*33mm*12mm
Compressed height:60mm
Maximum Height:125mm
Full stroke:65mm
Working medium:water, air
Working pressure:< 0.7Mpa
Burst pressure:> 1.6Mpa
Endurance cycle:> 10"
Temperature:-35℃ ~+60℃
S-220 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-220-4 | S-220-4 | 206 | 311 | 111 | ±80 | 280 |
| F-220-3 | S-220-3 | 152 | 232 | 82 | ±60 | 280 |
| F-220-2 | S-220-2 | 98 | 148 | 53 | ±40 | 280 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-220-4 | S-220-4 | 380 | 8.6 | 18.6 | 206 | 1.7 | 0.88 | 2.9-3.9 |
| F-220-3 | S-220-3 | 380 | 6.1 | 18.6 | 284 | 1.9 | 0.88 | 2.9-3.9 |
| F-220-2 | S-220-2 | 380 | 3.7 | 18.6 | 451 | 2.5 | 0.88 | 2.9-3.9 |
GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | F-600-r1 | F-240-4 | S-240-4R | F-240-r4 |
| F-600-2 | S-600-2R | F-600-r2 | F-240-3 | S-240-3R | F-240-r3 |
| F-600-3 | S-600-3R | F-600-r3 | F-240-2 | S-240-2R | F-240-r2 |
| F-600-4 | S-600-4R | F-600-r4 | F-240-1 | S-240-1R | F-240-r1 |
| F-600-5 | S-600-5R | F-600-r5 | F-220-4 | S-220-4R | F-220-r4 |
| F-550-2 | S-550-2R | F-550-r2 | F-220-3 | S-220-3R | F-220-r3 |
| F-550-3 | S-550-3R | F-550-r3 | F-220-2 | S-220-2R | F-220-r2 |
| F-500-2 | S-500-2R | F-500-r2 | F-200-2 | S-200-2R | F-200-r2 |
| F-500-3 | S-500-3R | F-500-r3 | F-200-3 | S-200-3R | F-200-r3 |
| F-500-4 | S-500-4R | F-500-r4 | F-200-4 | S-200-4R | F-200-r4 |
| F-500-5 | S-500-5R | F-500-r5 | F-160-1 | S-160-1R | F-160-r1 |
| F-450-1 | S-450-1R | F-450-r1 | F-160-2 | S-160-2R | F-160-r2 |
| F-450-2 | S-450-2R | F-450-r2 | F-160-3 | S-160-3R | F-160-r3 |
| F-450-3 | S-450-3R | F-450-r3 | F-160-4 | S-160-4R | F-160-r4 |
| F-450-4 | S-450-4R | F-450-r4 | F-120-4 | S-120-4R | F-120-r4 |
| F-450-5 | S-450-5R | F-450-r5 | F-120-3 | S-120-3R | F-120-r3 |
| F-400-2 | S-400-2R | F-400-r2 | F-120-2 | S-120-2R | F-120-r2 |
| F-400-3 | S-400-3R | F-400-r3 | F-100-4 | S-100-4R | F-100-r4 |
| F-400-4 | S-400-4R | F-400-r4 | F-90-3 | S-90-3R | F-90-r3 |
| F-400-5 | S-400-5R | F-400-r5 | F-90-2 | S-90-2R | F-90-r2 |
| F-350-1 | S-350-1R | F-350-r1 | F-90-1 | S-90-1R | F-90-r1 |
| F-350-2 | S-350-2R | F-350-r2 | F-300-1 | S-300-1R | F-300-r1 |
| F-350-3 | S-350-3R | F-350-r3 | F-300-2 | S-300-2R | F-300-r2 |
| F-350-4 | S-350-4R | F-350-r4 | F-300-3 | S-300-3R | F-300-r3 |
| F-300-4 | S-300-4R | F-300-r4 |
