TAURUS KR 721-05 / KR721-05 / W01M588701 DAF Air spring 0 526 651 / 0526651

TAURUS KR 721-05 / KR721-05 / W01M588701 DAF Air spring 0 526 651 / 0526651

OEM Cross Number:

GUOAMT NO.:1T836MBK6

CONTITECH 836 MB K6 / 836MBK6 / 836MB K6
FIRESTONE 1T17AR-4.5 / 1T17AR 4.5 / 1T17AR4.5
FIRESTONE W01 M58 8701 / W01-M58-8701 / W01M588701
PHOENIX 1 DF 25-15 / 1DF25-15 / 1DF2515
TAURUS KR 721-05

AIRTECH
131942
AIRTECH PROD. NO.
3836-06 K
AUTOMINT
6506
BLACKTECH
RML 7947 C6
CONTINENTAL
836 MBK6
CONTITECH
60277
DUNLOP FRANCE
D13B43
FIRESTONE REF.
W01 M58 8701
STYLE N0.
1T17AR-4.5
GOODYEAR
1R12-768
GRANNING
17061
PHOENIX
1 DF 25-15

OEM Suspension Supplier Number:

DAF 0 526 651

Technical data

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :3 pcs xM10

Combine bolt : 1 pcs M16x1.5

Distance between two closer bolt:110 mm

Distance between two faster bolt:155 mm

Distance between combined bolt and bolt:28 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : 1/4NPT

❸ Cover Plate

Top Cover Plate Diameter: Ø273 mm

❹Rubber Bellows

❺ Bumper block / Buffer block

With Bumper Block on the Bottom Piston

❻ Bottom Piston

Bottom Piston Diameter : Ø230mm

Bottom Piston Height :140 mm

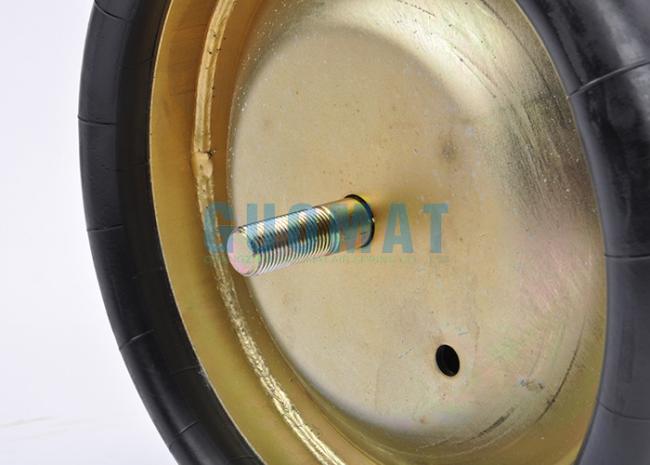

❼ Piston Bolt

Piston Bolt Tooth : 1XM16

In the Middle of the Piston
