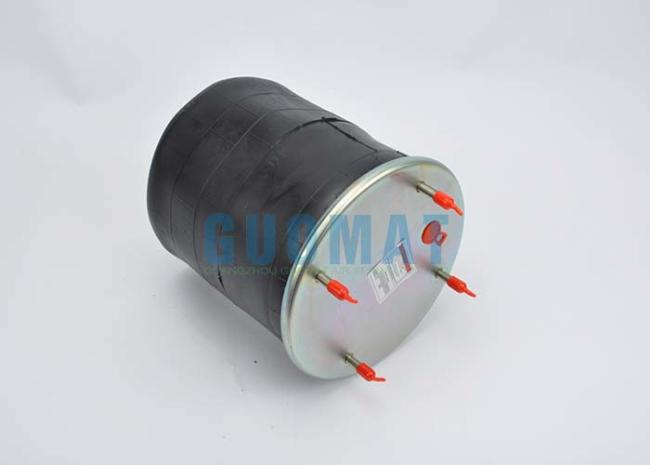

GOODYEAR Air Spring 1R14-758 / 1R14 758 , PHOENIX 1D28D-2 For  ROR 21222673

OEM Cross Number:

GUOAMT NO.:1T912NP02

CONTITECH 912 N P02 / 912NP02 / 912N P02
GOODYEAR 1R14-758 / 1R14 758 / 1R14758
PHOENIX 1D 28 D-2 / 1D28D-2 / 1D28D2
DUNLOP FR D13B14
CF GOMMA 1T19E-4 202442 / 1T19E 4 / 1T19E4

OEM Suspension Supplier Number:

HENDRICKSON Y507782
R.O.R/MERITOR 2122 2673
S.A.F 3.229.0005.01
S.A.F 3.229.0006.01
S.A.F 3.229.0013.00
WEWELER US96681F

Weweler US 96681 912 N P02
ROR 2122 2673 912 N P02
Hendrickson Europe Hendr. 507 782 912 N P02
SAF 3.229.0013.00 912 N P02 SAF 2926 V P02

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
