Double Action Punch S-500-5／S-450-5 ／S-400-5 Rubber Air Cushion 5 Convolutions With 4 Rims
Double Action Punch S-500-5 ／S-450-5 ／S-400-5 Air Cushion 5 Convolutions With 4 Rims
Desription of Double Action Punch S-500-5 ／S-450-5 ／S-400-5
S-500-5 ／S-450-5 ／S-400-5 Punch air spring are five Convolutions. Punch air spring air cushion made of natural rubber through a series of processes made of rubber bladder, used in the punch on the air spring manufacturing process than ordinary industrial air springs to be much more complex, so the cost will be Higher, the price is naturally much higher than the other. In the middle with stainless steel rims, five rims with four rims.
S-500-5 ／S-450-5 ／S-400-5 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-500-5 | S-500-5 | 276 | 456 | 156 | ±113 | 560 |
| F-450-5 | S-450-5 | 276 | 456 | 156 | ±113 | 510 |
| F-400-5 | S-400-5 | 276 | 435 | 156 | ±113 | 460 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-500-5 | S-500-5 | 1965 | 54 | 96.3 | 706 | 1.4 | 0.69 | 3.9-4.9 |
| F-450-5 | S-450-5 | 1590 | 43.6 | 80 | 588 | 1.4 | 0.69 | 3.9-4.9 |
| F-400-5 | S-400-5 | 1260 | 34.5 | 61.6 | 481 | 1.4 | 0.69 | 3.9-4.9 |
S-500-5 ／S-450-5 ／S-400-5 can fit for many kinds of Double action punch equipment
Another type of punch press is a single action punch and double action punch (there are three action punch, but very rare). Single-action punch only one slider, and double-action punch has two sliders, a slider can be fixed workpiece to prevent wrinkles, and then a slider for stamping processing, suitable for deep-drawn rigid materials operations.

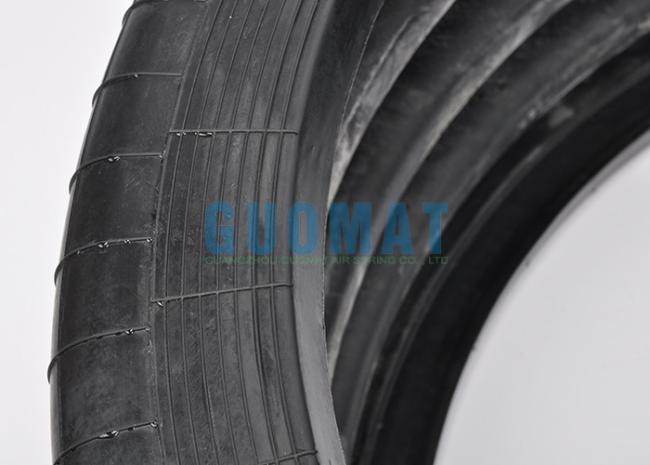

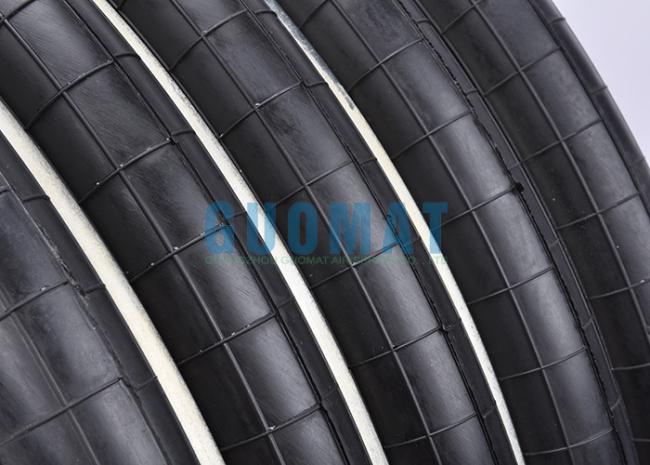

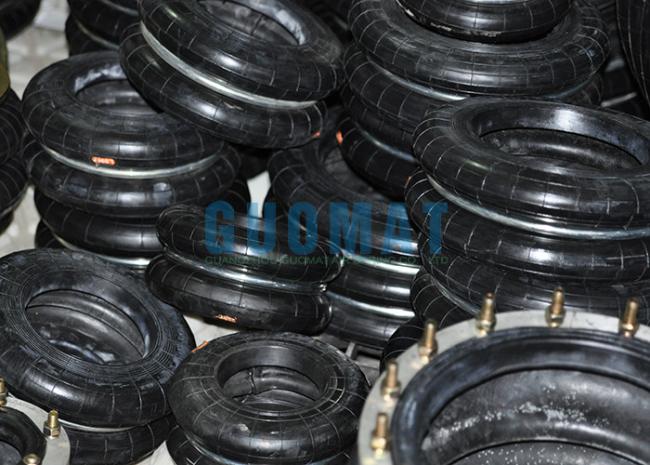

S-500-5 ／S-450-5 ／S-400-5 Product detail photos:
