GUOMAT 1B6171 Industrial Air Spring Assembly Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine

Air Spring Assembly GUOMAT 1B6171 Rubber Bellows 1B330 Max 325mm For Leather Drawer Machine

GUOMAT 1B6171 Specifications and Technical Data

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº

Firestone Bellows Number: 19

GUOMAT NO.:1B6071

Cross NO.:1B5071

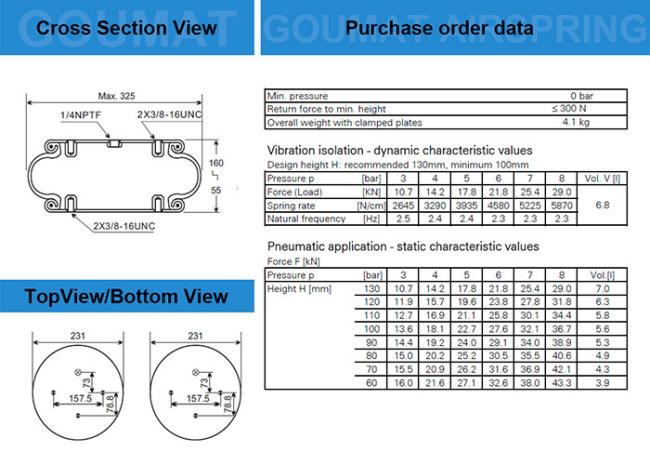

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC

Screw Center Distance of Top Cover Plate :157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

Distance Gas Hole Between Nut 73 mm

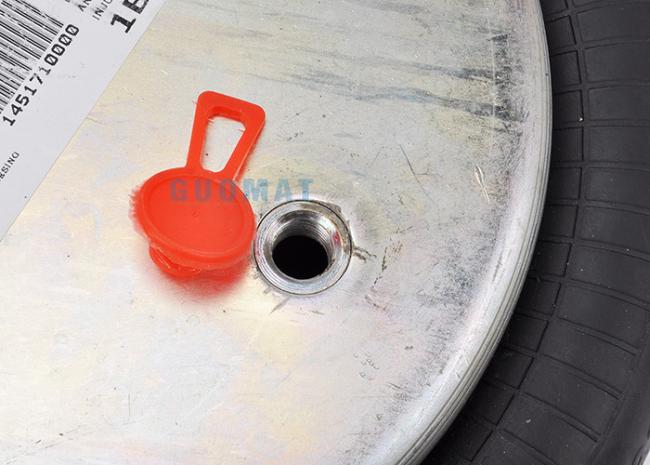

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F.

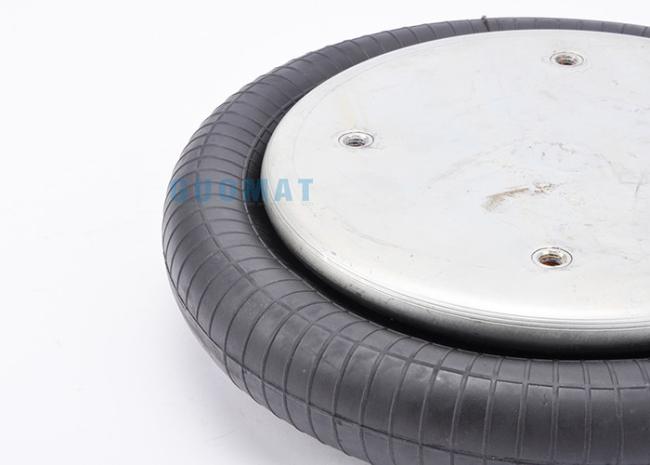

❸ Cover Plate

Top Cover Plate Diameter (Width): 9.00 inches / 231mm

Bottom Cover Plate Diameter (Width): 9.00 inches / 231mm

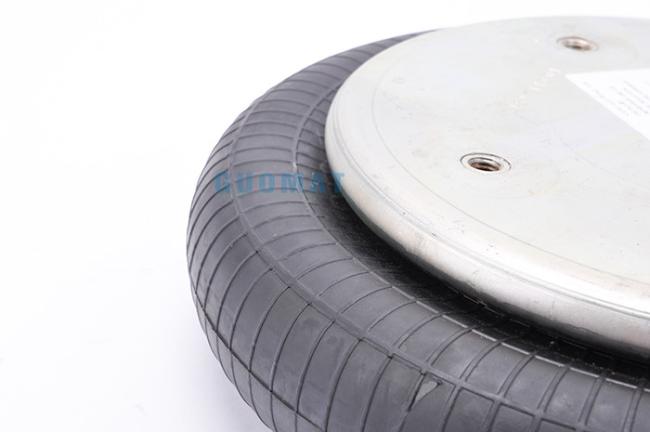

❹Rubber Bellows

Rubber Bellows Natural Diameter 300 mm

Rubber Bellows Max Diameter : 325 mm

Rubber Bellows Natural Height : 110 mm

The Working Stroke : MAX 160 mm to MIN 55 mm

Compressed Height: 2.12 inches / 105 mm​

Compressed Height: 2.12

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Without Girdle Hoop

The usal kinds of Single Convolution Air Actuator
