GUOMAT:2B6290 Specific parameters and specifications:

Top Plate Hole/Stud: 3 Pieces

Top Plate Hole/Stud: 2 PiecesX3/8-16UNC

Bottom Plate Hole/Stud: 2 PiecesX3/8-16UNC

Air inlet:1/4NPTF

Top Cover Plate: 6.4 inches / 160 mm

Bottom Cover Plate Diameter: 6.4 inches / 160 mm

Collapsed Height: 3.8 inches / 96 mm

Screw Center Distance of Top Cover Plate : 3.5 inches / 89 mm

Screw Center Distance of Bottom Cover Plate : 3.5 inches / 89 mm

Rubber Bellows Natural Diameter : 232.5 mm

The Working Stroke : MAX 309 mm to MIN 96 mm / MAX 12.2 inches to MIN 3.8 inches

Maximum Height : 12.2 inches / 309 mm

Minimum Height :3.8 inches / 96 mm

Compression Height :8.3 inches / 213 mm

Rubber Bellows Natural :9.2 inches /240 mm

Goodyear Trimmed: 2B9253

Conti Tech: FD200-25427 / FD 200-25 427

Firestone W01-358-6951/ 20-2

Goodyear 2B9-253

Goodyear Flexmember: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Spring: 4427 / 6332

Firestone: 6945

Conti Tech: 64550

Ridewell: 1003586945C

Batco: 10-96945

UCF / Impex: AB-2B9-253

T.W. Distribution: AB6945

Dallas Spring: AS6945

Midland / Haldex: CS209253

Euclid/Meritor Aftermarket: E-FS6945

Euclid/Meritor Aftermarket: FS6945

Leland: SC2125

Watson&Chalin : AS0119F / AS01451G

GUOMAT:2B6290 Cross others OEM

The usage of GUOMAT 2B6290 air springs:

Thickness gauge thickness gauge can determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam, etc.

GUOMAT 2B6290 air springs can be installed on trucks, coaches, and trailers. The air suspension springs are usually designed as universal types. It can also be installed on industrial equipment and machines for shock absorption and lifting.
The GUOMAT part number collects all air suspension models and can be used as an integration code when searching on the GUOMAT website.

Package size and weight:

2 pieces in one carton.

Note:

This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.

There is no limit to the number of purchases. Small quantities are generally sent by international express, such as DHL, FEDEX, UPS, TNT, etc. The time is also very fast, usually within 3-7 working days to receive the goods.

How is the Air spring works?

Rubber air spring work, the cavity filled with compressed air to form a compressed air column. With the increase of the vibration load, the height of the spring decreases, the volume of the cavity decreases, the stiffness of the spring increases, and the effective bearing area of the inner air column increases. At this moment, the bearing capacity of the spring increases.

When the vibration load decreases, the height of the spring increases, the volume of the cavity increases, the stiffness of the spring decreases, and the effective bearing area of the cavity air column decreases. At this time, the bearing capacity of the spring decreases. In this way, the air spring in an effective stroke, the air spring height, lumen volume, carrying capacity with the increasing and decreasing of the vibration load occurred smooth and flexible transmission, amplitude and vibration load control.

You can also increase, reduce the amount of inflation method to adjust the stiffness of the spring and the carrying capacity of the size, but also can be attached to the auxiliary chamber to achieve automatic control.

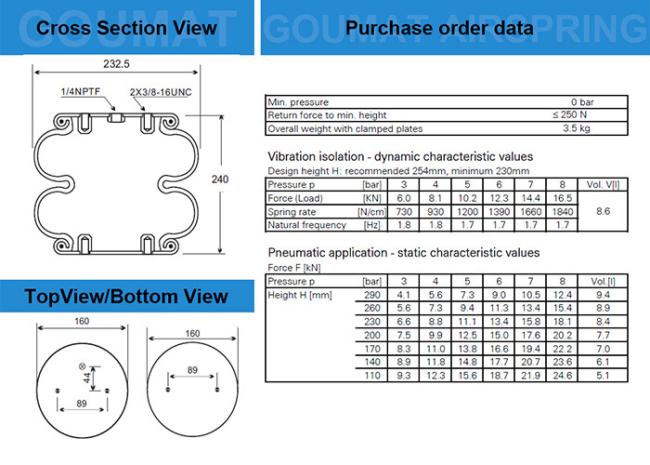

Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]

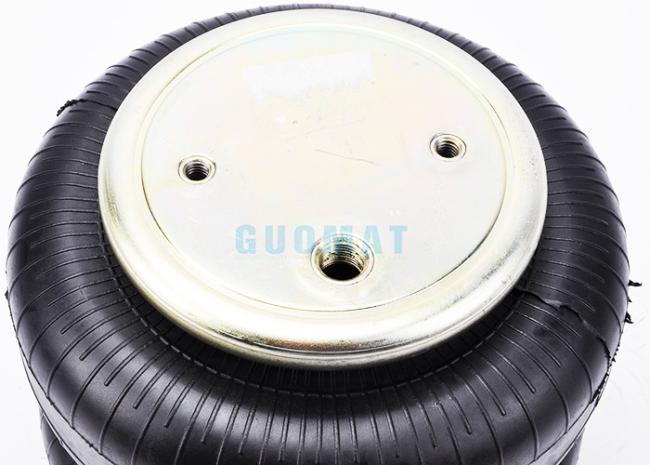

Details picture 1 of air spring GUOMAT 2B6290:

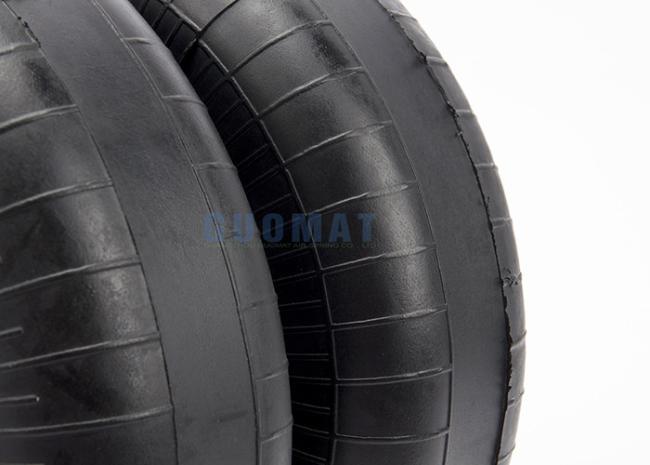

Details picture 2 of air spring GUOMAT 2B6290:

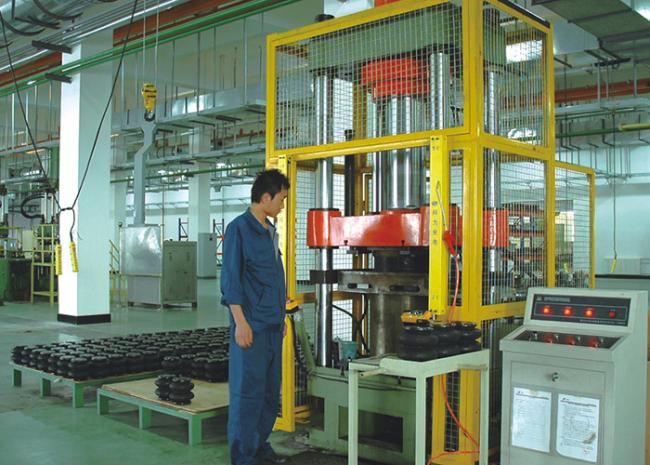

GUOMAT Industrial Air Spring Production workshop​​​​​​​:
