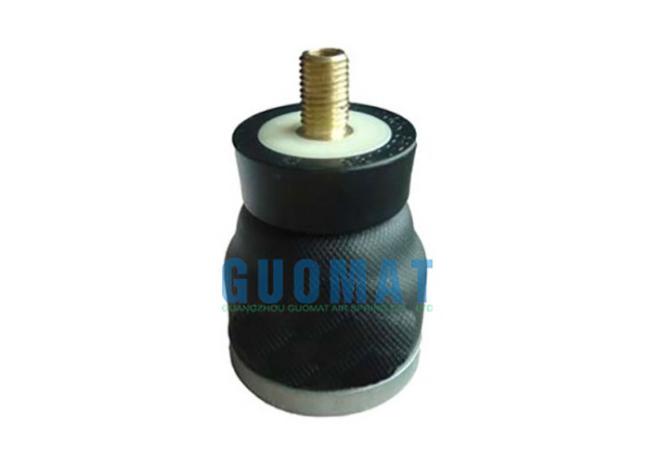

CONTITECH SK37-6 P02 Suspension Air Spring Sleeve Seat For Harley Motorcycle
CONTITECH SK37-6 P02 Sleeve Seat Suspension For Harley Motorcycle
Cross OEM Of this item:
GUOMAT:G3088
CONTITECH SK37-6 P02
Min. pressure:0 bar
Return force to min. height:≤ 150 N.
Overall weight with clamped plates:0.28 kg.
Vibration isolation - dynamic characteristic values
Design height H: recommended 60mm.
Pneumatic application - static characteristic values Force F [kN]
With G 1/8 air inlet, brass stud
Order No.63235
Descripition and Specifications Of SK37-6 P02:
| Package Size: | 3.6*3.6*5(in.) | Package Size: | 92mm*92mm*127mm |
| Net Weight: | 0.28 KG | Lower Plate OD : | 61 MM |
| Gross Weight: | 0.5 KG | Extended Height : | 91.44 MM |
| PISTON NUMBER: | 63235 | Bumper Height : | 38.1 MM |
| Lower Plate OD : | 2.40 (in.) | Upper Plate OD : | 76 MM |
| Extended Height : | 3.60 (in.) | Lower Plate OD: | 60.96 MM |
| Bumper Height : | 1.50 (in.) | Extended Height: | 91.44 MM |
| Upper Plate OD : | 3.2 (in.) | Bumper Height: | 38.1 MM |
| Lower Plate OD: | 2.40 (in.) | Upper Plate OD: | 76 MM |
| Extended Height: | 3.60 (in.) | ||
| Bumper Height: | 1.50 (in.) | ||
| Upper Plate OD: | 3.2 (in.) |
Note:
Dashed line on static load curve
Shows the power of the SK 37-8 plus 15 mm base under the piston. This base is not provided by GUOMAT. If this base is not used, the bellows will touch the ground at about height. 55 mm. This should be avoided as it may cause the bellows to wear. The minimum pressure for baseless service is 3 bar.
GUOMAT air spring production of the air spring has the following advantages:
1, product quality, Thailand import natural rubber, the core technology in Germany
2, With the same price on the market, GUOMAT optimal quality. With the same quality of products, GUOMAT has lowest price.
3, cars, trucks, buses and industrial air spring has production, fully meet the customers' different requirements.
4, GUOMAT spell price, not only do the brand.
5, more than 10 years of production technology, products cover all over the world.
6, have dealers around the world, the first response to all customer requirements.
Packing List of SK37-6 P02 Air Spring :
| Description | PCS | Net Weight | Package Weight | Gross Weight | Length (cm) |
Width (cm) |
Height (cm) |
Measurememt (cbm) |
| Air Suspension | 1 | 0.28 kg | 0.4 kg | 0.5 kg | 12 | 9.2 | 9.2 | 0.00102 |
| Shipping Terms | By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express. | |||||||
| Payment Terms | T/T, Western Union,Paypal and Others | |||||||
