Continental Industrial Air Spring FD200-19 315 Goodyear 2B9-206 For EZ Ride 8030120
Continental air Springs FD200-19 315 Goodyear 2B9-206 For EZ Ride 8030120
OEM Original Equipment Manufacturer:
| Reference | OEM |
| GUOMAT NO. | 2B6905 |
| Firestone | W01-358-6905 /W01 358 6905 / W013586905 |
| Contitech | FD 200-19 315 / FD200-19 315 / FD20019 315 |
| Goodyear | 2B9-206 / 2B9206 / 2B9 206 |
| Taurus | KF218-6905 |
| Hendrickson | S3518 |
| Hendrickson | S5270 |
| Ridewell | 1003586905C |
| EZ Ride | 8030120 |
| Watson&Chalin | AS-0020 |
Specifications and Technical Data of 2B6905
Compressed Height: 3.12 / 79mm

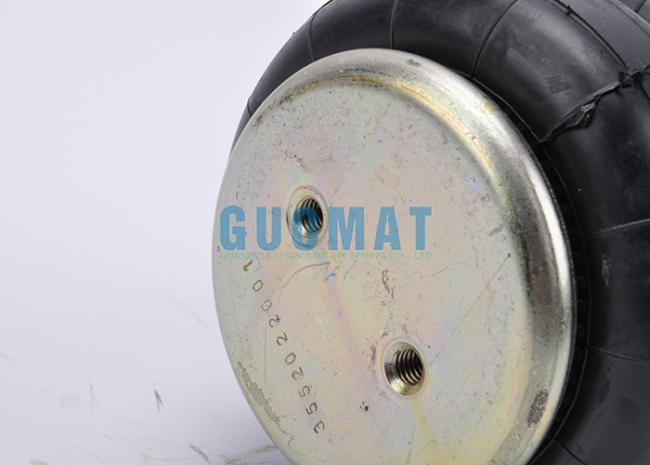

Top Cover Plate Diameter: 6.31 inches / 160mm

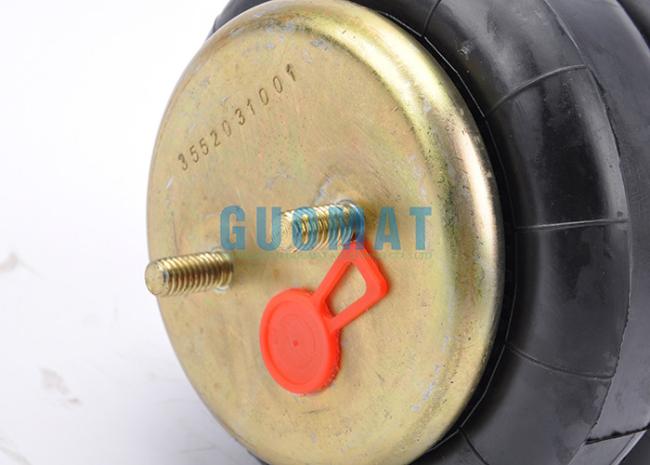

Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/1-12UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

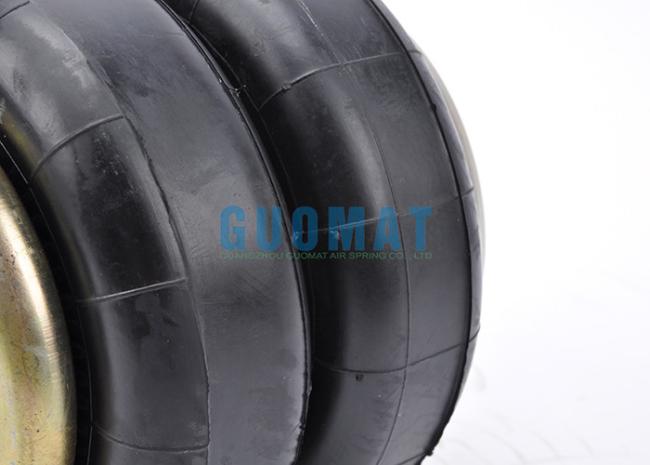

Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number:20
Goodyear Part Number:2B9-206/ 2B9206 / 2B9 206
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
Description Assembly Order No.
Blind nuts, 1/4 NPT W01-358-6910
Blind nuts, 1/4 NPT, bumper W01-358-6911
Blind nuts, 3/4 NPT W01-358-6900
Blind nuts, 3/4 NPT, bumper W01-358-6901
Countersunk steel bead rings,
13/4 bolts, nuts, washers W01-358-6923
Rubber bellows only W01-358-0138
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
