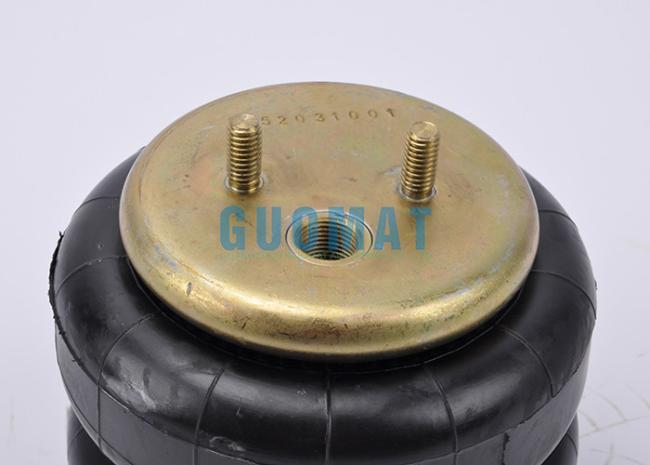

Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
OEM Original Equipment Manufacturer:
| Reference | OEM |
| GUOMAT Part NO. | 2B6941 |
| Firestone Part NO. | W01-358-6941 / W01 358 6941 ／ W013586941 |
| Contitech Part NO. | FD 200-19 448 ／ FD200-19 448 ／ FD20019 448 |
| Contitech Bellows NO. | 161295 |
| Goodyear Part NO. | 2B9-265 ／ 2B9265／ 2B9 265 |
| Goodyear Part NO. | 2B9-280 / 2B9 280 / 2B9280 |
| Goodyear Bellows NO. | 578923202/6 ／ 578923202/6 ／ 578923202/6 |
| Triangle Part NO. | 6325 |
| Triangle Bellows NO. | 4448 |
| Histeer Part NO. | 10302 |
| SAF Holland Part NO. | 57006941 |
CONTI 64512
CONTI FD 200-19 448
FIRESTONE 6941
FIRESTONE W013586941
HISTEER 10302
RIANGLE 4448
TRP AS69410
Air spring supplier brand name: Goodyear
Reference: 578923202
Competitor/supplier number: 2B9265
Air spring supplier brand name: Goodyear
Reference: 578923206
Competitor/supplier number: 2B9280
Air spring supplier brand name: ContiTech
Reference: 161295
Competitor/supplier ID: FD20019448
Air spring supplier brand name: Triangle
Reference: 6325
Competitor/supplier ID: 4448
Suspended supplier name: Histeer
Competitor/supplier ID: 10302
Suspension supplier name: Langes
Suspended supplier name: SAF Netherlands
Competitor/supplier ID: 57006941
Firestone Trim name: w013586941

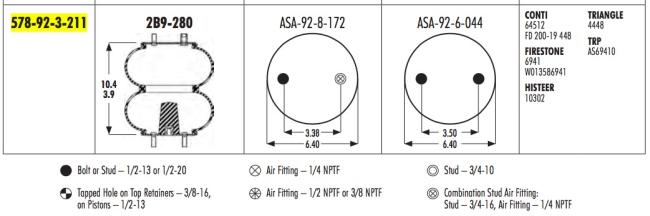

GUOMAT 2B6941 Specifications and Technical Data
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :1 pcs X 3/4-16UNC ,1 pcs X 1/2-16UNC
Screw Center Distance of Top Cover Plate : 86 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : together with the right size bolt
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 81 mm to MAX 274 mm
Maximum Height : 274 mm
Minimum Height :81mm
Stroke Height : 193 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
