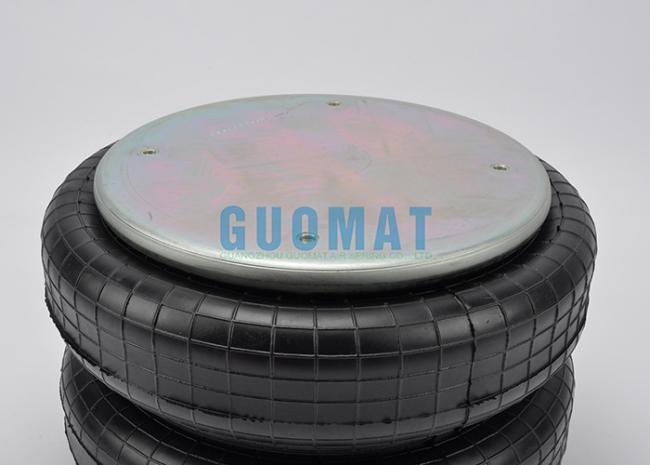

Firestone Industrial Air Spring W01-358-7781 No. 233-2 Working Stroke 287mm
Firestone W01-358-7781 Style No. 233-2 Working Stroke 287mm Gas Hole / Air inlet : 3/4NPT
| Cross Manufacturer | Cross OEM |
| Firestone No. | W01-358-7781 / W01 358 7781/W013587781 |
| Firestone Style No. | 233-2 |
| Contitech : | FD 530-35 545 / FD 530 35 545 |
| Ridewell : | 1003587781C |
| Ridewell Number: | 1003587781C |
| Triangle: | 6412 |
| Triangle | AS-4545 |
| Firestone Top Plate Number: | 3134 |
| Firestone Piston Number: | 3130 |
| FleetPride | AS7781 |
| Taurus | 6412 |
| TRP | AS77810 |
| Automann | SP2B34RC-7781 |
Assembly Weight: 9.05kg
Operating Temperature: 57Cº to -54Cº

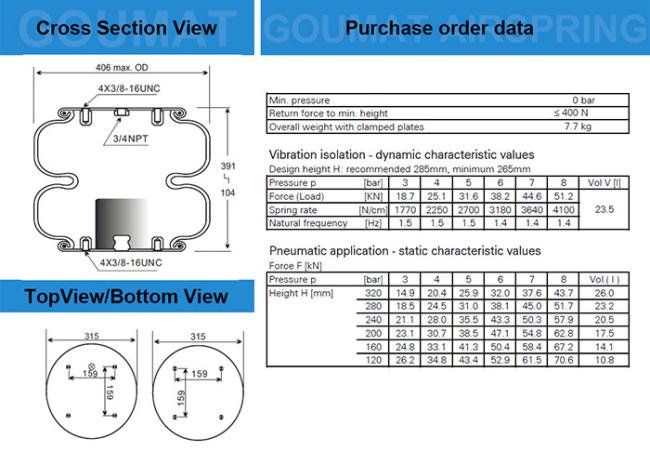

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm

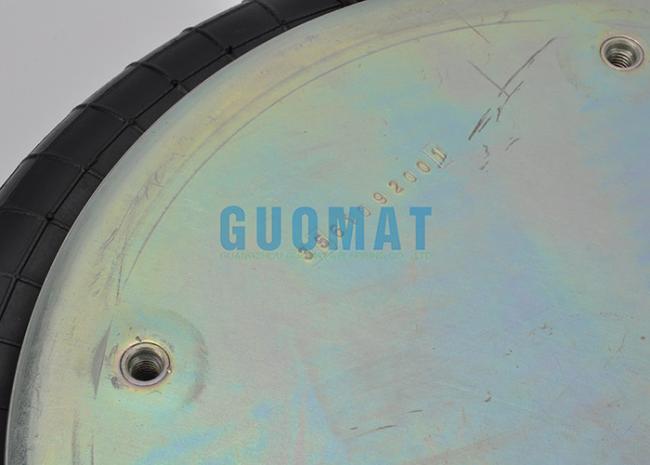

❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm

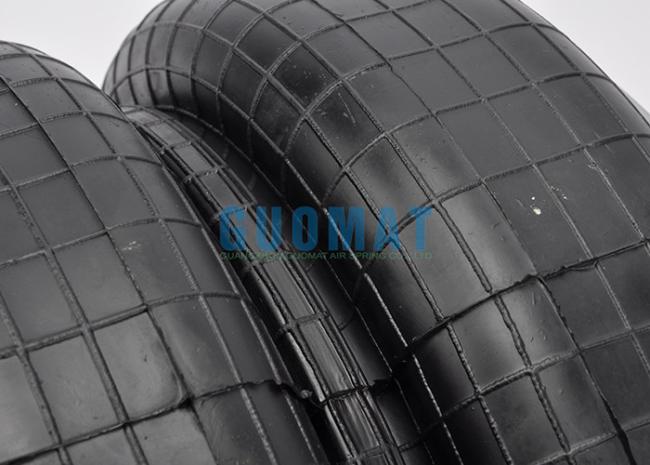

❹Rubber Bellows
Rubber Bellows MAX Diameter : 406 mm
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 391 mm
Working Stroke : 287mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Another kind the air inlet is 1/4 NPT Goodyear 2B14-462
Goodyear Flexmember 578-92-3-356
Firestone 6805;W01-358-6805
Ridewell 1003586805C
FD 530-35 1165
FD 530-35 720
FD 530-35 912
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 530 35 528 | FD 530-35 528 | 161386 | 7930 | 9910 | 16 | 11 | 3 | 15.4 | 84 |
| FD 530 35 530 | FD 530-35 530 | 161387 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
| FD 530 35 543 | FD 530-35 543 | 161388 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
| FD 530 35 544 | FD 530-35 544 | 161389 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
| FD 530 35 545 | FD 530-35 545 | 161390 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
