Double Air Spring Industrial Air Bags Firestone W01-358-7410 Plate Dia. 231mm

Double Air Spring Industrial Air Bags Firestone W01-358-7410 Plate Dia. 231mm





Operating Temperature: 57Cº to -54Cº

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC,1 pcs X3/4-16UNC
Screw Center Distance of Top Cover Plate : 157 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157 mm

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between air inlet and Nut : Together

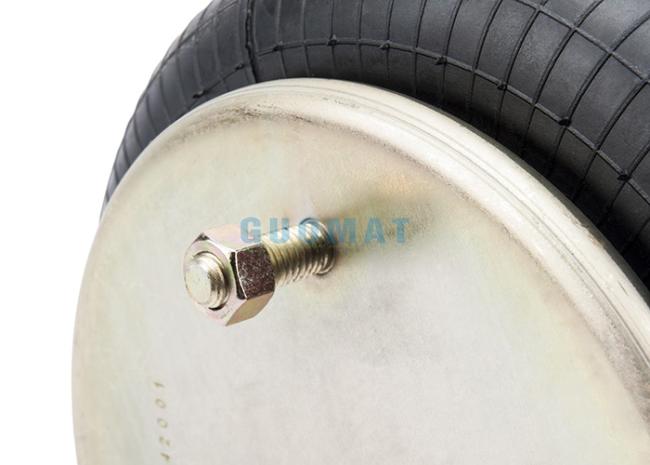

❸ Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Threaded Hole : 3/8-16

❹Rubber Bellows
Rubber Bellows Natural Diameter : 298 mm / 11.7 inches
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches

❺ Bumper block / Buffer block
With Bumper Block

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop


Pictures show the information includes:

Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
