3/8 - 16UNC Screw GUOMAT Pick Truck Air Bags / Air Ride Suspension Parts

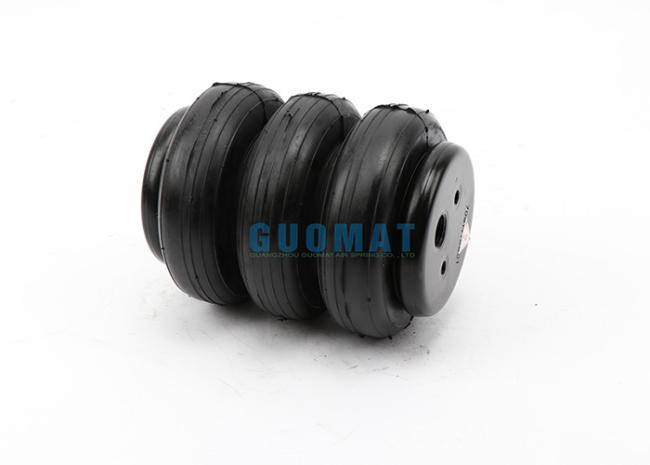

GUOMAT Air Spring 3B2400 For Pickup Trucks / Cars Instead Of The Coil Spring

Operating Temperature: 57Cº to -54Cº

❶Nut / Blind Nut

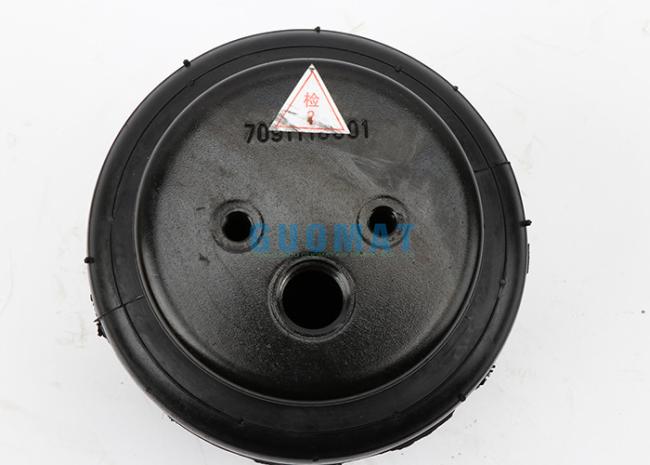

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.5 mm

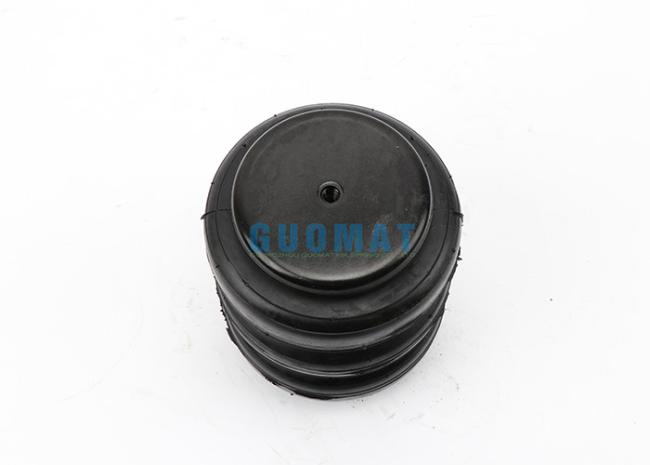

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : MIDDLE

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-14NPT

Center Distance Between air inlet and Nut : 22 mm

❸ Cover Plate

Top Cover Plate Diameter (Width): 113 mm

Bottom Cover Plate Diameter (Width): 113 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 144.5 mm

Rubber Bellows MAX Diameter : 165 mm

Design Height: 213mm

Bellows # NO.: 2400

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

The Load Lifter 3B2400 is used to improve the suspension performance of trucks and the traction capacity of trucks. These air springs will help carry the load you are dragging. These bags will help carry up to 5,000 pounds of cargo. These springs can help in many ways, including trailer rocking, rough riding, body rolling and more. It will help improve performance by making your truck easier to turn and stop. These kits are ready to be installed into your vehicle without the need for tools.
