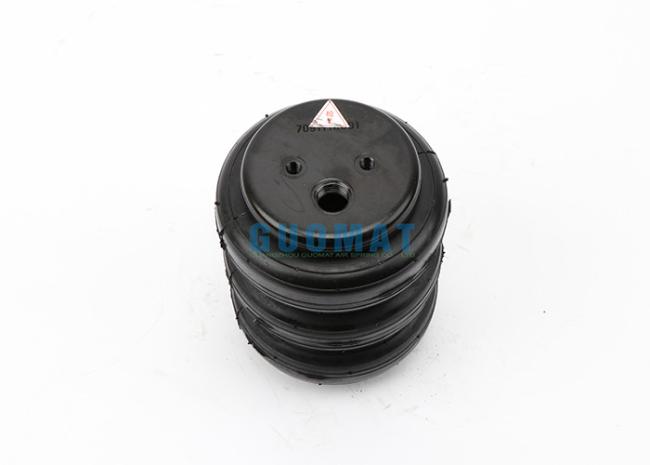

Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags

Air Lift Air Bags 3B2300 Air Spring Provide A Comfortable Ride

Operating Temperature: 57Cº to -54Cº

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : MIDDLE

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-14NPT

Center Distance Between air inlet and Nut : 22 mm

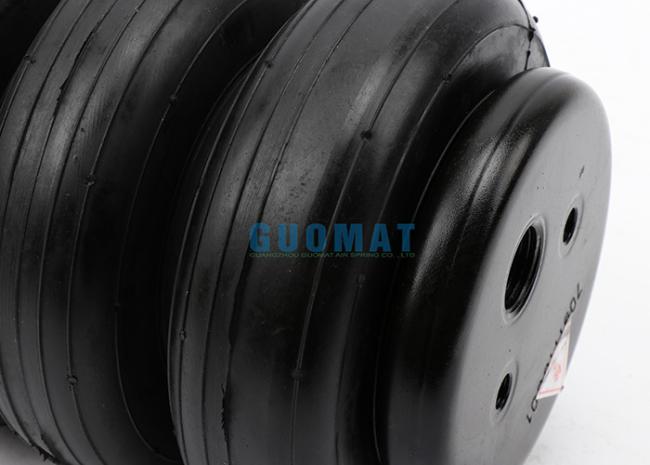

❸ Cover Plate

Top Cover Plate Diameter (Width): 113 mm

Bottom Cover Plate Diameter (Width): 113 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 125 mm

Rubber Bellows MAX Diameter : 145 mm

Design Height: 187mm

Bellows # NO.: 2300

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

• Air spring volume saves space compared to other springs
• Roller protects air springs from wear and increases load capacity
• No drilling required - Most kits use existing holes in the vehicle frame for bolt mounting
• Easy to install, ordinary car repairers can operate
• All kits are compatible with most 5-wheel and gooseneck hooks

GUOMAT 3B2300 can fit for the following cars:
