55mm Stroke Industrial Air Bellows Single Convolution PM/31061 Refer To Norgren 6"X1 For Industrial Equipment
PM/31061 Refer To Norgren 6"X1 Air Bellows Single Convolution For Industrial Equipment
Bellow No.:1B 6X1
Springride : SP1537
Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 6pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 6pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2

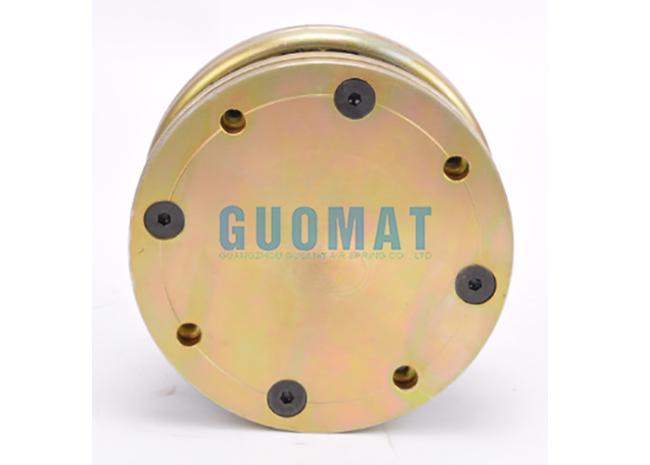

❸ Cover Plate
Top Cover Plate Diameter (Width): 154 mm
Bottom Cover Plate Diameter (Width): 154 mm
Material top and bottom plate:steel
❹Rubber Bellows
Diameter max at 7 bar:165MM
Stroke of Rubber Bellows:55 m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no Girdle Hoop
Other kinds of model air bellows:
| Model | Cylinder Ø [inch] | Air Inlet | Nominal Ø (inch) x convolutions | Stroke [mm] | Installation height min [mm] | Recomended max working height [mm] | Installation height max [mm] | Retracting force to reach min height [N] |
| PM/31021 | 2 3/4" | G 1/4 | 2 3/4" x 1 | 20 | 50 | 65 | 70 | 200 |
| PM/31022 | 2 3/4" | G 1/4 | 2 3/4" x 2 | 45 | 65 | 105 | 110 | 310 |
| PM/31023 | 2 3/4" | G 1/4 | 2 3/4" x 3 | 60 | 80 | 130 | 140 | 300 |
| PM/31041 | 4 1/2" | G 3/8 | 4 1/2" * 1 | 40 | 50 | 80 | 90 | 200 |
| PM/31042 | 4 1/2" | G 3/8 | 4 1/2" * 2 | 85 | 65 | 135 | 150 | 240 |
| PM/31043 | 4 1/2" | G 3/8 | 4 1/2" * 3 | 100 | 100 | 180 | 200 | 140 |
| PM/31061 | 6" | G1/2 | 6" x 1 | 55 | 55 | 100 | 110 | 200 |
| PM/31062 | 6" | G1/2 | 6" x 2 | 115 | 80 | 170 | 190 | 220 |
| PM/31063 | 6" | G1/2 | 6" x 3 | 190 | 100 | 255 | 285 | 250 |
| PM/31081 | 8" | G3/4 | 8 x1 | 95 | 55 | 140 | 150 | 60 |
| PM/31082 | 8" | G3/4 | 8 x2 | 185 | 80 | 250 | 265 | 110 |
| PM/31091 | 9 1/4" | G3/4 | 9 1/4 x 1 | 105 | 55 | 150 | 160 | 150 |
| PM/31092 | 9 1/4" | G3/4 | 9 1/4 * 2 | 230 | 80 | 295 | 310 | 170 |
| PM/31121 | 12" | G3/4 | 12" x 1 | 129 | 51 | 151 | 180 | 300 |
| PM/31122 | 12" | G3/4 | 12" x 2 | 230 | 75 | 265 | 305 | 300 |
| PM/31123 | 12" | G3/4 | 12" x 3 | 320 | 110 | 395 | 430 | 400 |
