2.4 kg Industrial Air Spring FS 120-10 CI Single Convolution With Crimped Plates G3/4 Air Inlet

Name: 2.4 kg Industrial Air Spring FS 120-10 CI Single Convolution With Crimped Plates G3/4 Air Inlet
Brand: GUANGZHOU GUOMAT AIR SPRING CO. , LTD

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

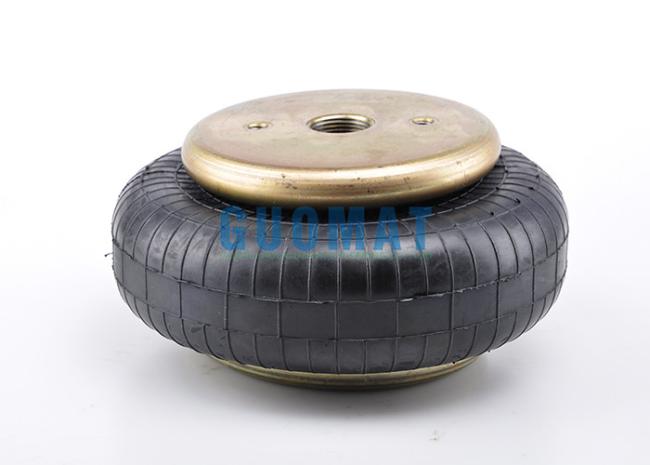

Industrial Air Spring FS 120-10 CI Single Convolution With Crimped Plates, G3/4 Air Inlet

Product Description

GUOMAT 1B8X4-3/4 Technical parameters

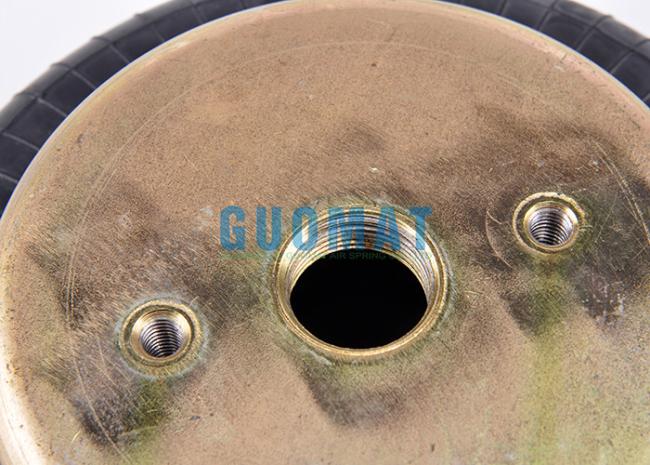

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 70 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 135 mm

Bottom Cover Plate Diameter: 135 mm

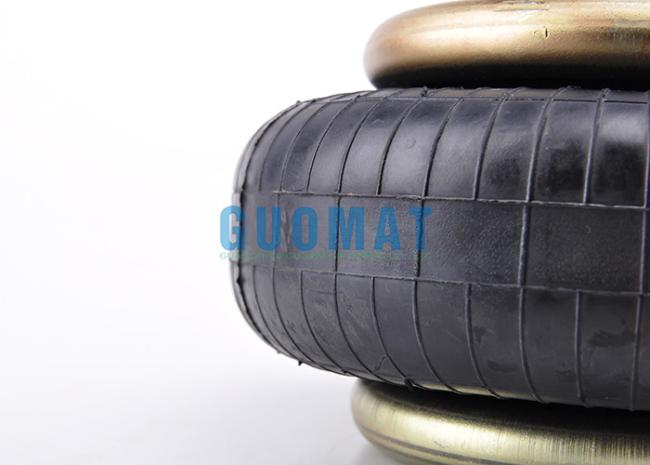

❹Rubber Bellows

Rubber Bellows MAX Diameter: 230 mm

Rubber Bellows Natural Diameter : 205 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50 mm

Stroke Height : 90mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

Reference OEM:

Firestone : W01-358-7564

Goodyear:1B8-550

Contitech:FS120-10

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	Vol. V [in.³]
H 4.50 in./114.3MM	728	1130	1570	1970	110
H 4.00 in./101.6MM	905	1400	1940	2390	100
H 3.50 in./88.9MM	1050	1610	2240	2740	90
H 3.00 in./76.2MM	1170	1770	2450	3020	75
H 2.50 in./63.5MM	1270	1900	2630	3260	57

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	801	1,240	1,700	2,130	2,530	110
Spring rate c [lbf/in]	709	949	1,190	1,430	1,670	110
Natural Frequency f0 [Hz]	2.9	2.8	2.7	2.6	2.6	110
Design height H: recommended 4.33 inch, minimum 3.54 inch
