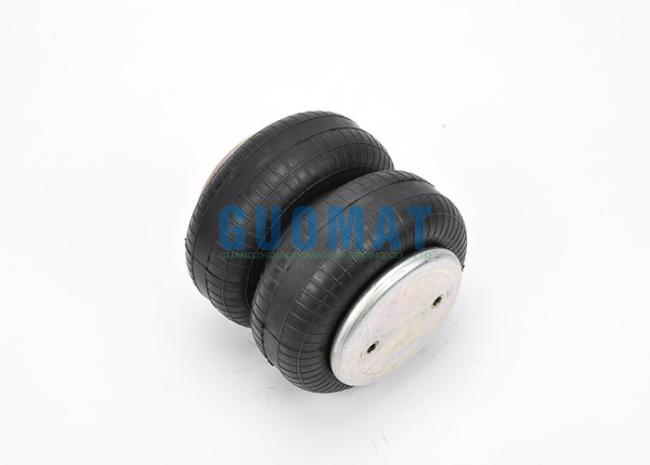

FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck Suspension Spring
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114050 | AIRKRAFT 113067 | AIRKRAFT 113068 |
| CONTITECH 603 N | CONTITECH FD 120-20 509 | FIRESTONE W01-358-7327 |
| FIRESTONE FLEX 26 | FIRESTONE W01-358-7325 | GOODYEAR 2B8-552 |
| FIRESTONE W01 358 0142 | GOODYEAR 2B8-550 | |
| PIRELLI 26 |
Blind nuts, 1/4 NPT WO1-358-7325
Blind nuts, 3/4 NPT WO1-358-7327
bolts, nuts, washers
WO1-358-7333
Rubber bellows only WO1-358-0142
AMERICAN CARRIER 8003006
Mac-k truck TRUCK 227QS32
Mac-k truck TRUCK 57QK1113
AUTOMANN ABSP2B08RA-7325
TRIANGLE 4509
CONTI
CONTI 64601
CONTI FD 120-20 509
FIRESTONE 7325
FIRESTONE W013587325
TRP AS73250
WATSON & CHALIN AS-0030
|
Type |
Order No. |
|
Rubber bellows only |
68628 |
|
with crimped plates, G1/4 air inlet A = 0 mm excentrical |
62448 |
|
with crimped plates, G3/4 air inlet A = 0 mm excentrical |
62055 |
|
with stainless steel crimped plates, A = 0 mm excentrical |
67814 |
Used in many applications, including:
Lifting equipment,
Airbag press equipment,
Vibrating conveyor air spring,
Vibrating screen equipment air spring,
air hammer
Air spring vibration testing machine
Foundry machinery,
4 d cinema seat air spring,
Air spring press equipment,
Air spring vibration isolation equipment detection platform,
Isolator air spring,
Bus station air spring,
Marble rocking air spring,
Laundry dryer air spring equipment,
Play equipment, air springs,
Carousel air spring,
|
Vibration isolation – dynamic characteristic values Design height H: recommended 205mm, minimum 190mm |
|||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [kN] | 4.6 | 6.2 | 7.8 | 9.4 | 11.1 | 12.7 | |
| Spring rate [N/mm] | 65 | 84 | 103 | 120 | 139 | 154.1 | 4.1 |
| Natural frequency [Hz] | 1.9 | 1.8 | 1.8 | 1.8 | 1.8 | 1.7 | |
|
Pneumatic application – static characteristic Force F [kN] |
||||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H [mm] | 200 | 4.65 | 6.21 | 7.85 | 9.57 | 11.2 | 12.8 | 4 |
| 160 | 5.84 | 7.75 | 9.75 | 11.9 | 13.9 | 15.8 | 3.4 | |
| 120 | 6.84 | 9.04 | 11.3 | 13.7 | 16 | 18 | 2.5 | |
| 80 | 7.34 | 9.67 | 12.1 | 14.7 | 17.1 | 19.5 | 1.7 | |
